Installation Procedure

  1. Install the checkballs (1-7) in the valve body.

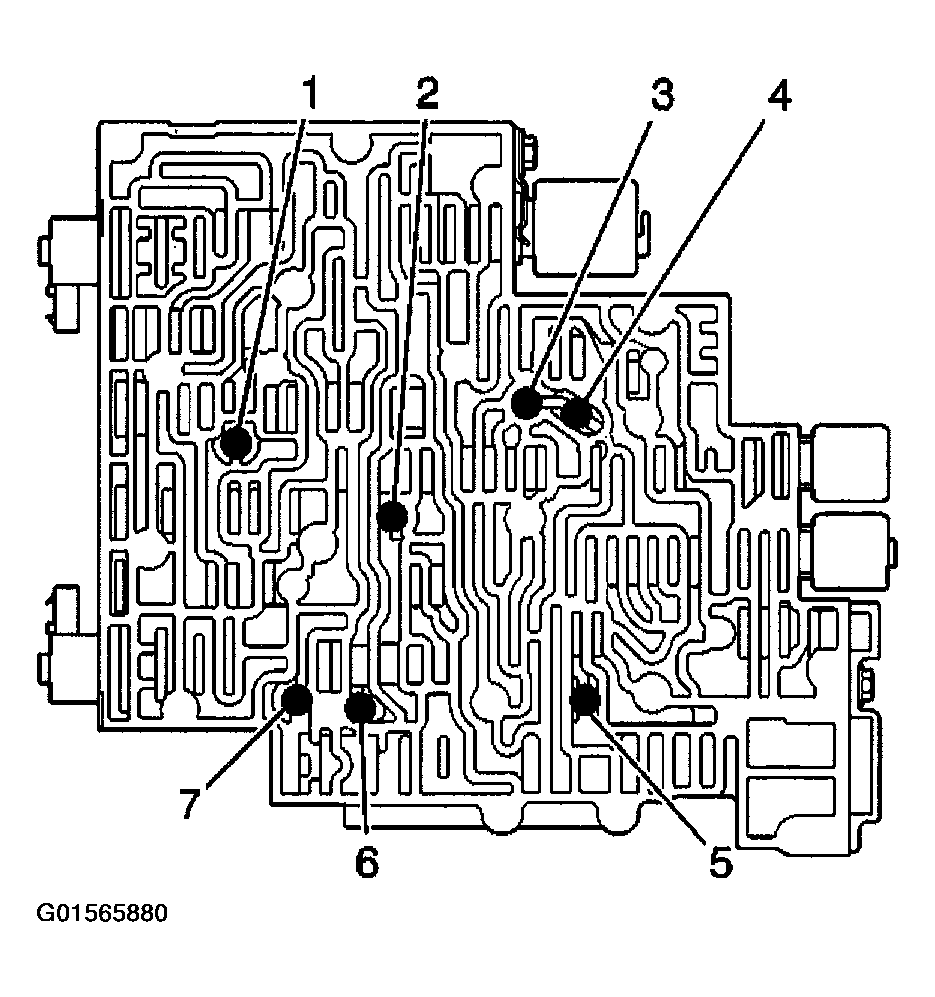

    Fig 1: Installing Checkballs (1-7) In Valve Body
    G01565880Courtesy of GENERAL MOTORS CORP.
  2. Install the control valve body to the transmission case while simultaneously connecting the manual valve link to the manual valve.

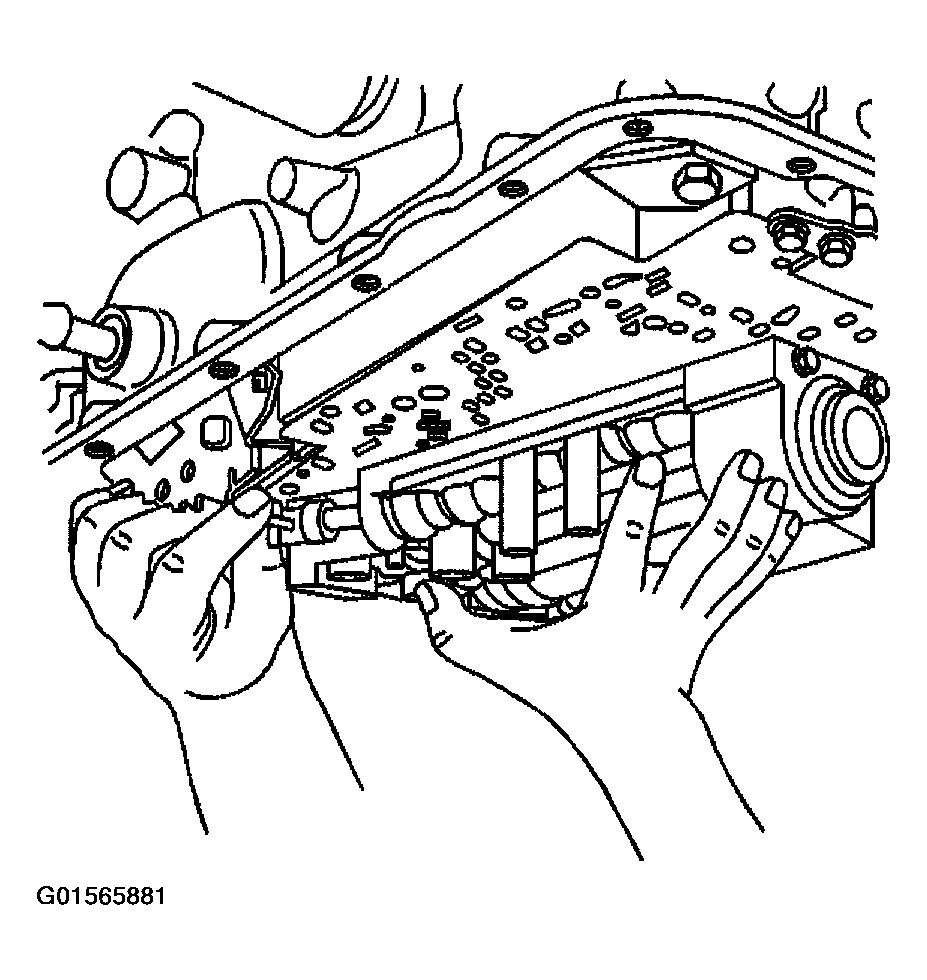

    Fig 2: Installing Control Valve Body To Transmission Case
    G01565881Courtesy of GENERAL MOTORS CORP.
  3. Verify that the manual valve link (3) is installed properly to the inside detent lever (1) and the manual valve (2).
    Fig 3: Manual Valve Link Correct Installation To Inside Detent Lever & Manual Valve
    G01565882Courtesy of GENERAL MOTORS CORP.
  4. Install one bolt (M6 X 1.0 X 47.5) hand tight in the center (1) of the valve body to hold it in place.

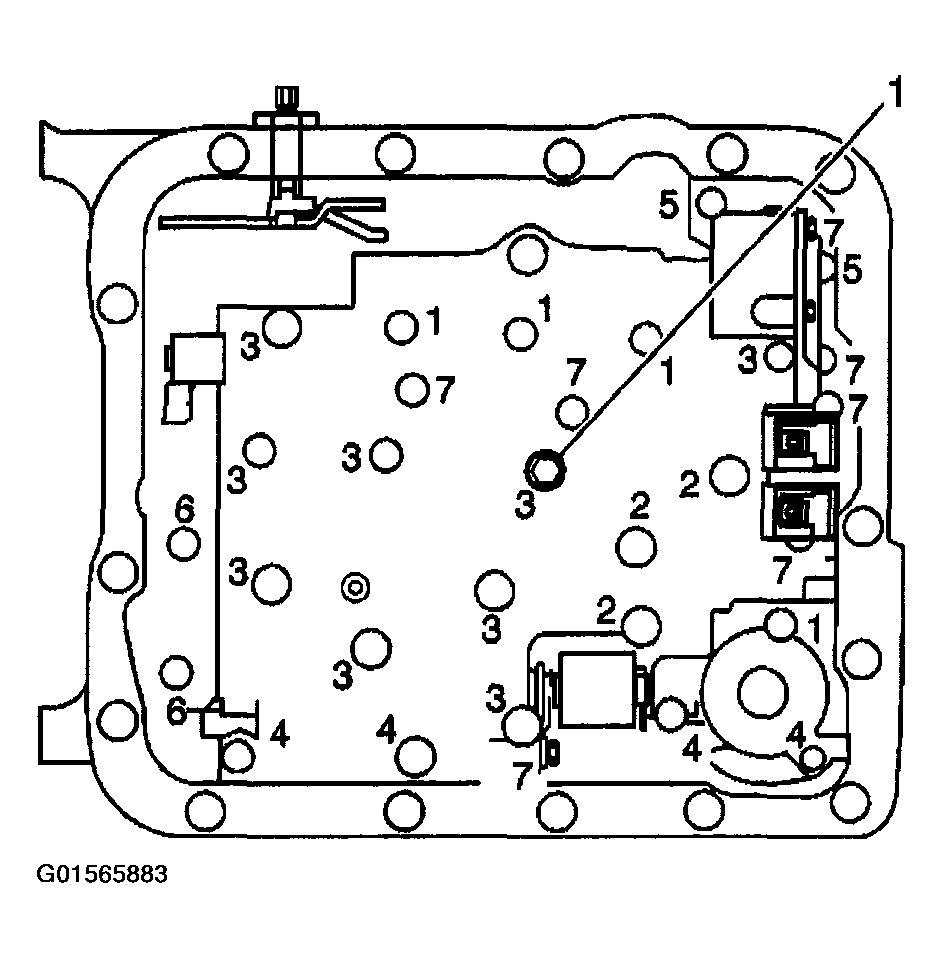

    Fig 4: Valve Body Hand Tight Center Bolt
    G01565883Courtesy of GENERAL MOTORS CORP.

    Important:  When installing bolts throughout this procedure, be sure to use the correct bolt size and length in the correct location as specified.

  5. Do not install the transmission fluid indicator stop bracket and bolt at this time.

    Install but do not tighten the control valve body bolts which retain only the valve body directly.

    Each numbered bolt location corresponds to a specific bolt size and length, as indicated by the following:

    • M6 X 1.0 X 65.0 (1)
    • M6 X 1.0 X 54.4 (2)
    • M6 X 1.0 X 47.5 (3)
    • M6 X 1.0 X 35.0 (4)
    • M8 X 1.0 X 20.0 (5)
    • M6 X 1.0 X 12.0 (6)
    • M6 X 1.0 X 18.0 (7)

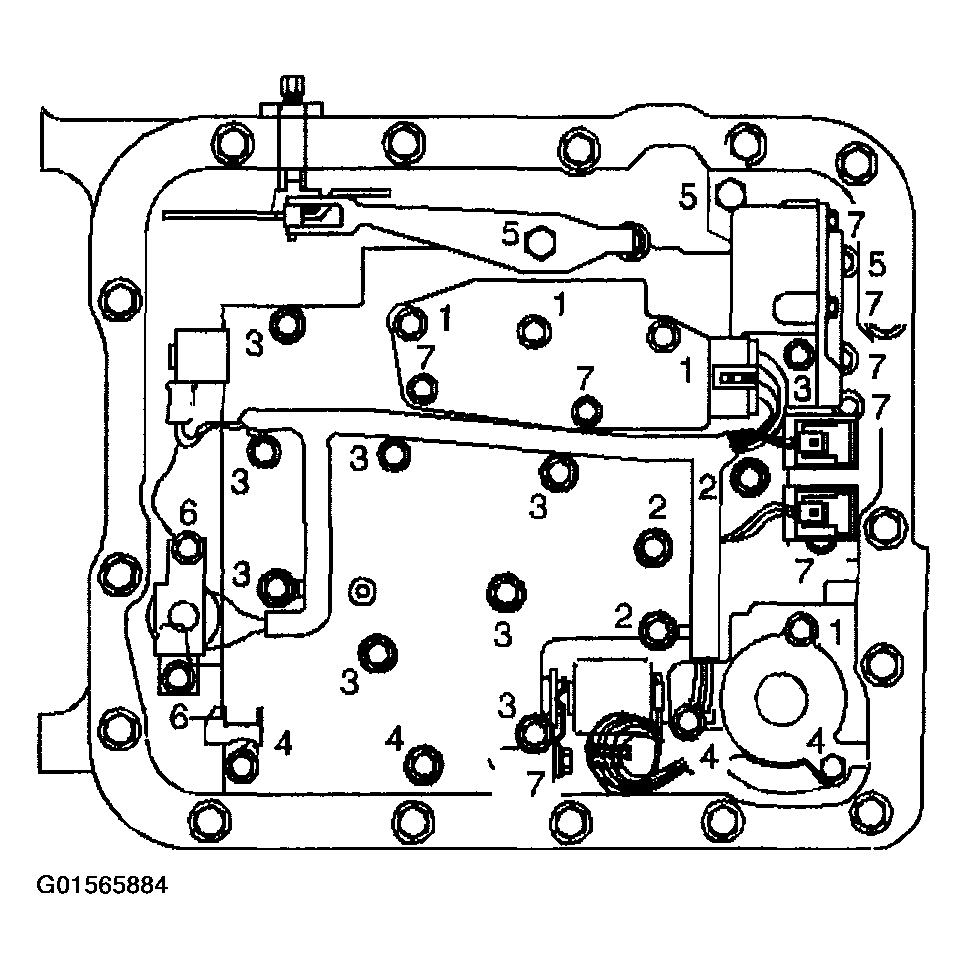

      Fig 5: Identifying Numbered Bolt Location
      G01565884Courtesy of GENERAL MOTORS CORP.
  6. Install the manual detent spring.

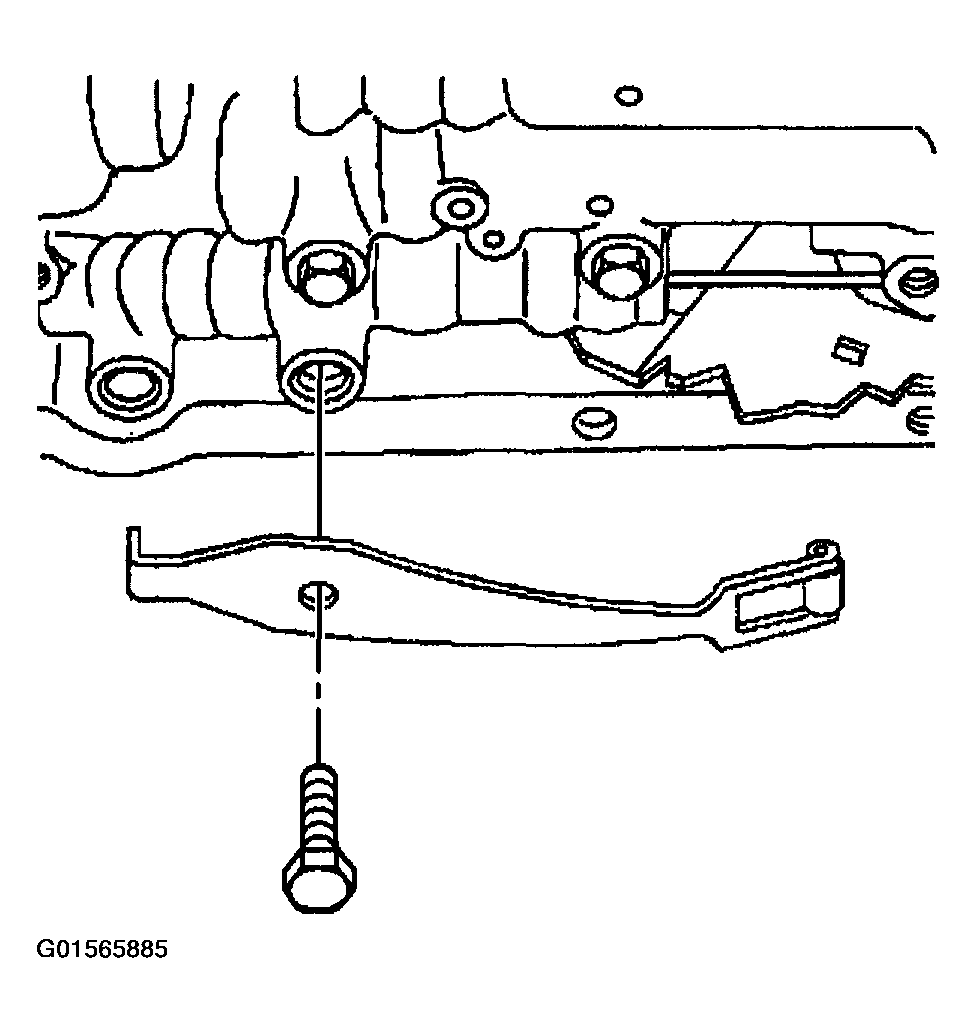

    Fig 6: Manual Detent Spring
    G01565885Courtesy of GENERAL MOTORS CORP.
  7. Install but do not tighten the manual detent spring retaining bolt.
  8. Install the transmission fluid pressure switch.
  9. Install but do not tighten the control valve body bolts which retain the transmission fluid pressure switch to the control valve body.

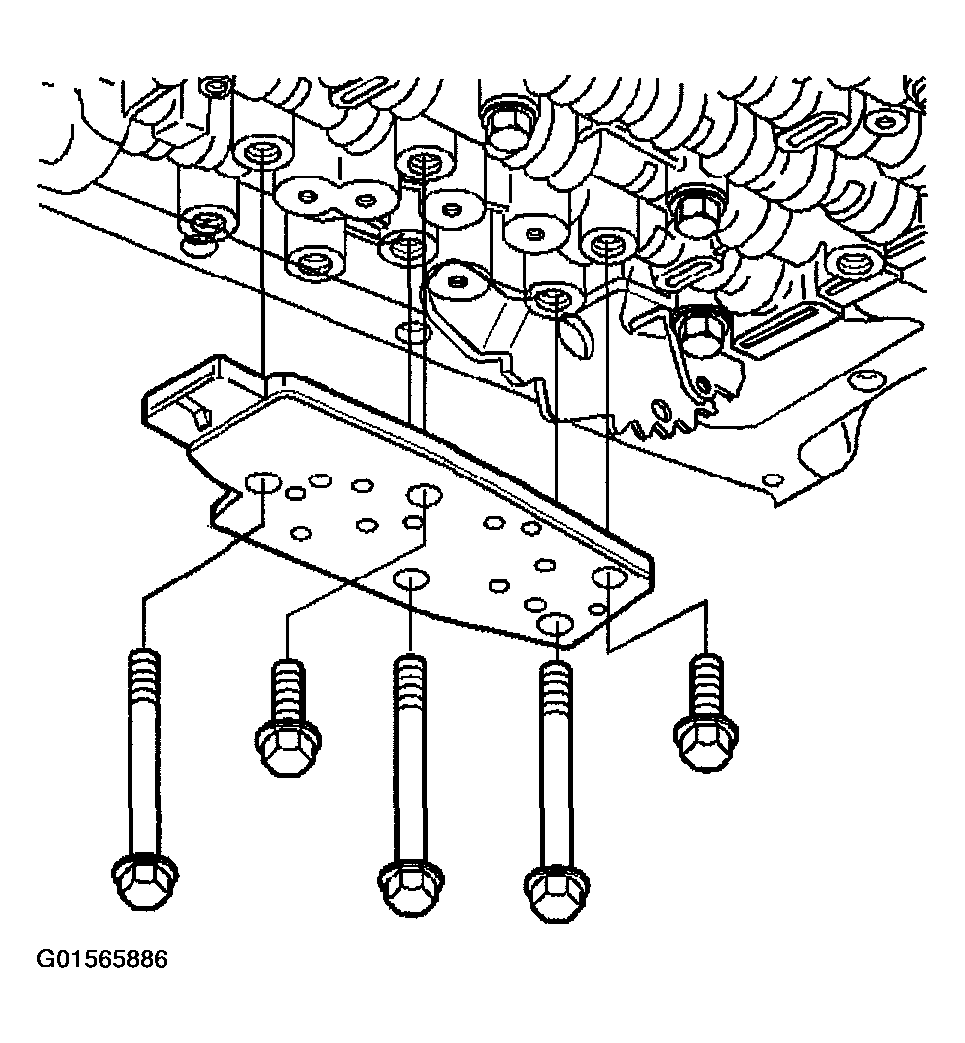

    Fig 7: Transmission Fluid Pressure Switch
    G01565886Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
    NOTE: Torque valve body bolts in a spiral pattern starting from the center. If the bolts are torqued at random, valve bores may be distorted and inhibit valve operation.
  10. Tighten the control valve body bolts in a spiral pattern starting from the center, as indicated by the arrows.

    Tighten

    Tighten the control valve body bolts (in sequence) to 11 N.m (97 lb in).

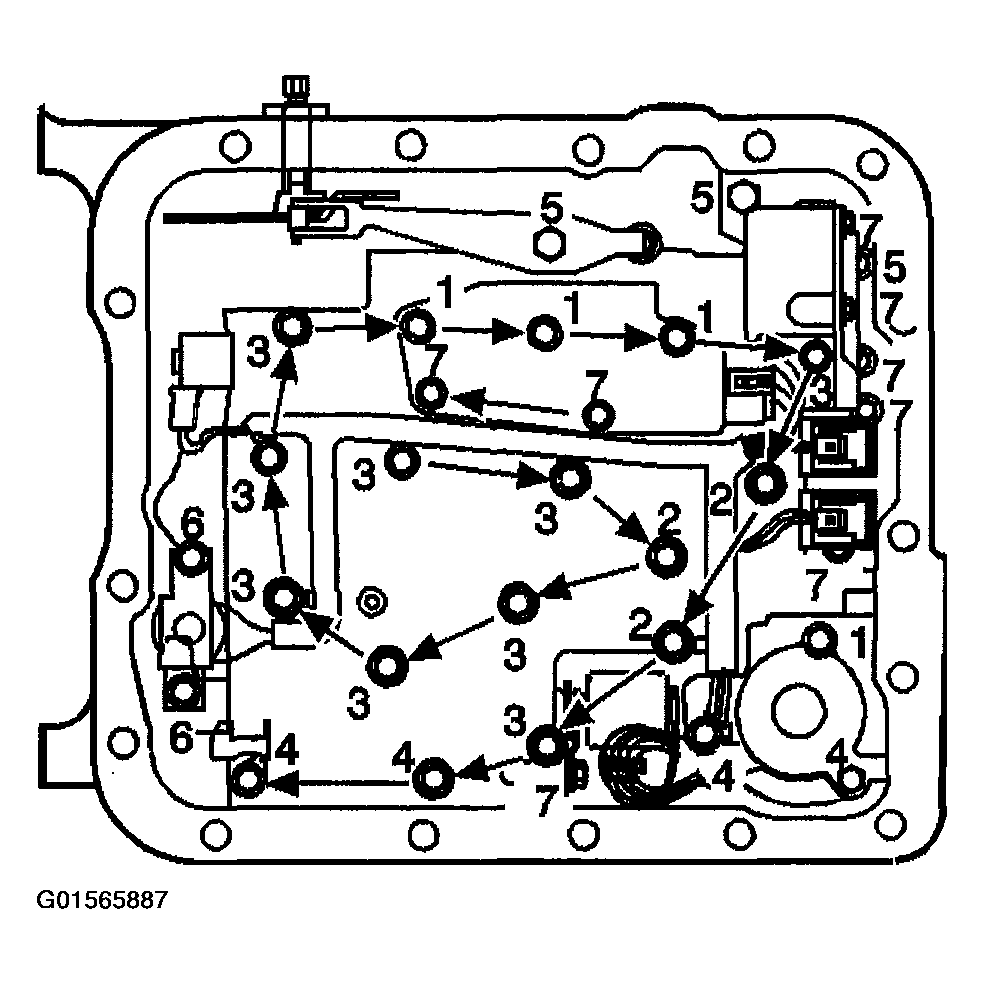

    Fig 8: Control Valve Body Bolts Spiral Pattern Tightening Sequence
    G01565887Courtesy of GENERAL MOTORS CORP.
  11. Ensure that the manual detent spring is aligned properly with the detent lever.

    Tighten

    Tighten the manual detent spring bolt to 31 N.m (23 lb ft).

    Fig 9: Tightening Manual Detent Spring Bolt
    G01565888Courtesy of GENERAL MOTORS CORP.
  12. Install the TCC solenoid with a new O-ring seal to the valve body.

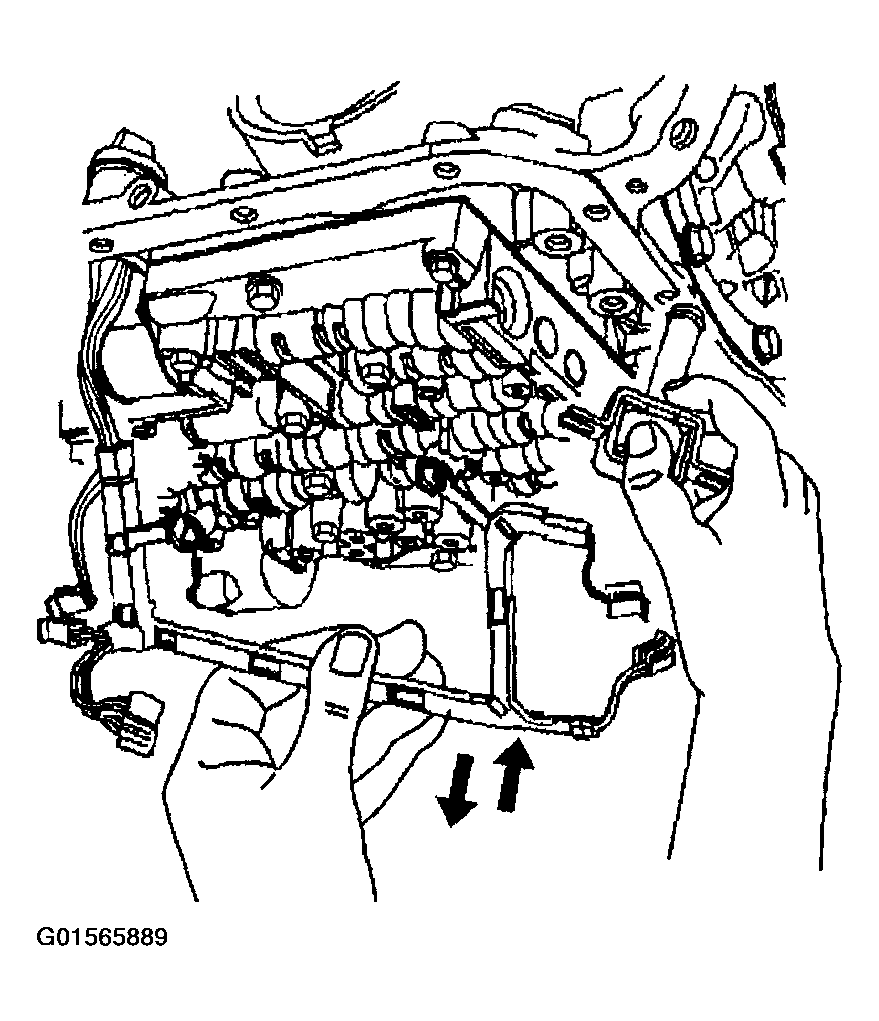

    Fig 10: Installing TCC Solenoid With O-Ring Seal To Valve Body
    G01565889Courtesy of GENERAL MOTORS CORP.
  13. Install the TCC solenoid bolts.

    Tighten

    Tighten the TCC solenoid retaining bolts to 11 N.m (97 lb in).

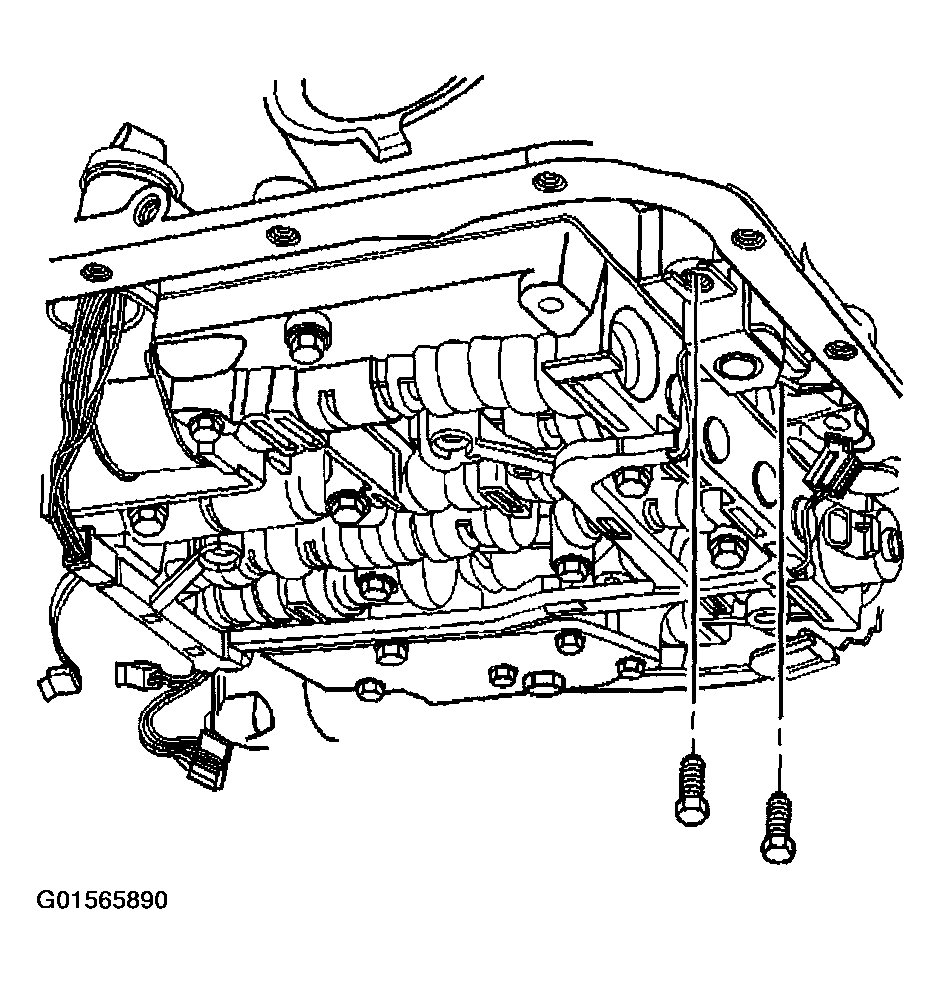

    Fig 11: TCC Solenoid Bolts
    G01565890Courtesy of GENERAL MOTORS CORP.
  14. Install the internal wiring harness to the valve body. The internal wiring harness has a tab (1) on the edge of the conduit.

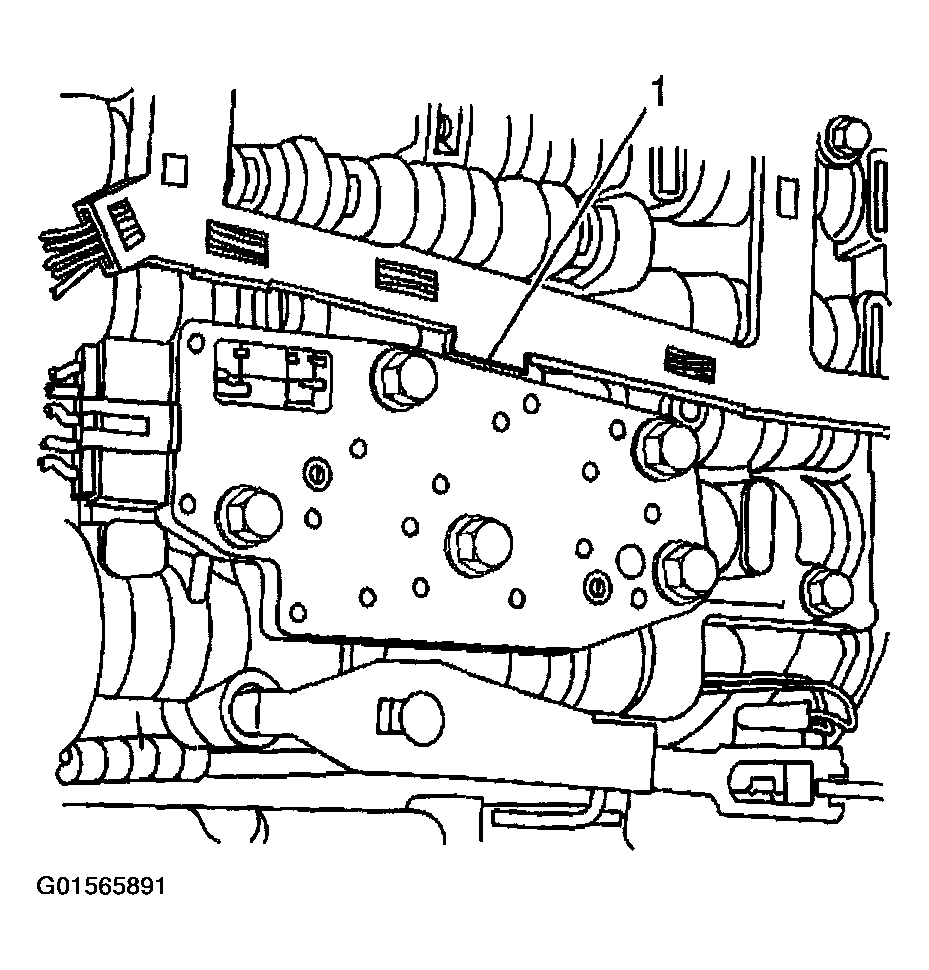

    Fig 12: Installing Internal Wiring Harness To Valve Body
    G01565891Courtesy of GENERAL MOTORS CORP.
  15. Place the tab between the valve body and the pressure switch in the location shown (2). Press the harness into position on the valve body bolt bosses (1,3).

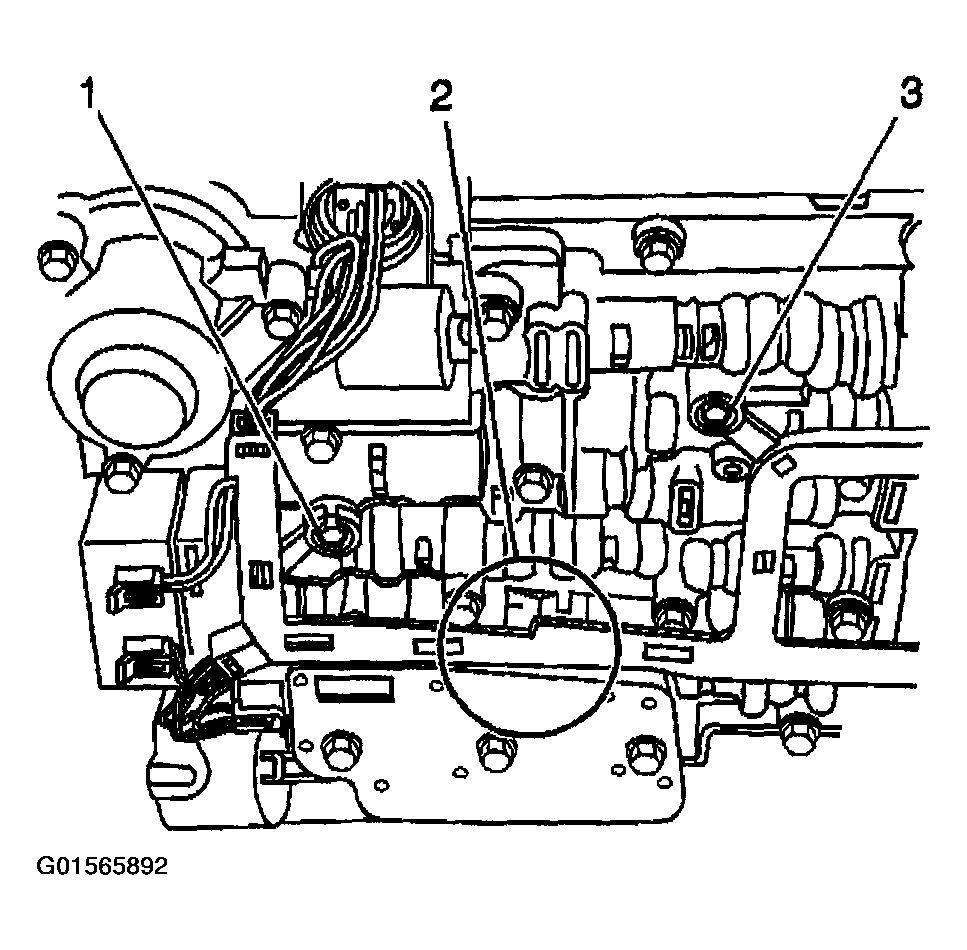

    Fig 13: Locating Tab Placing Position Between Valve Body & Pressure Switch
    G01565892Courtesy of GENERAL MOTORS CORP.
  16. Install the TCC PWM solenoid (1) to the control valve body.
  17. Install the TCC PWM solenoid retainer (2).

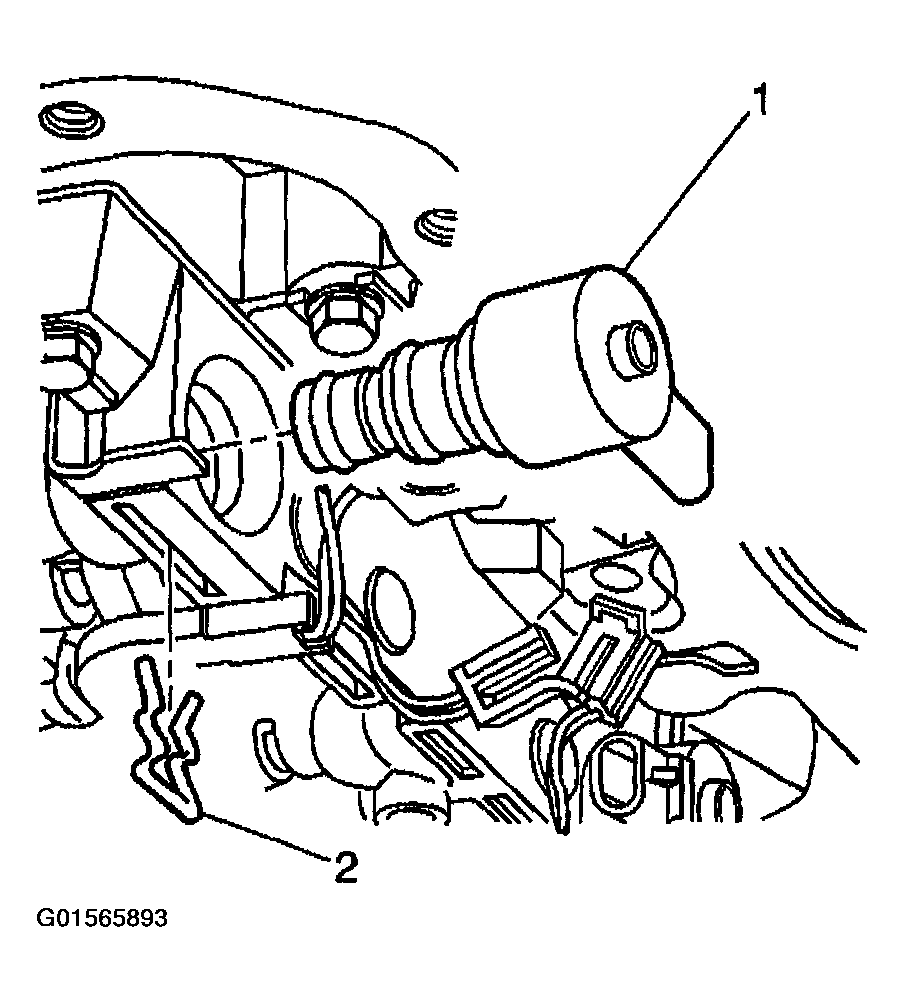

    Fig 14: TCC PWM Solenoid To Control Valve Body
    G01565893Courtesy of GENERAL MOTORS CORP.
  18. Install the transmission fluid indicator stop bracket (1) and bolt (2).

    Tighten

    Tighten the transmission fluid indicator stop bracket bolt to 11 N.m (97 lb in).

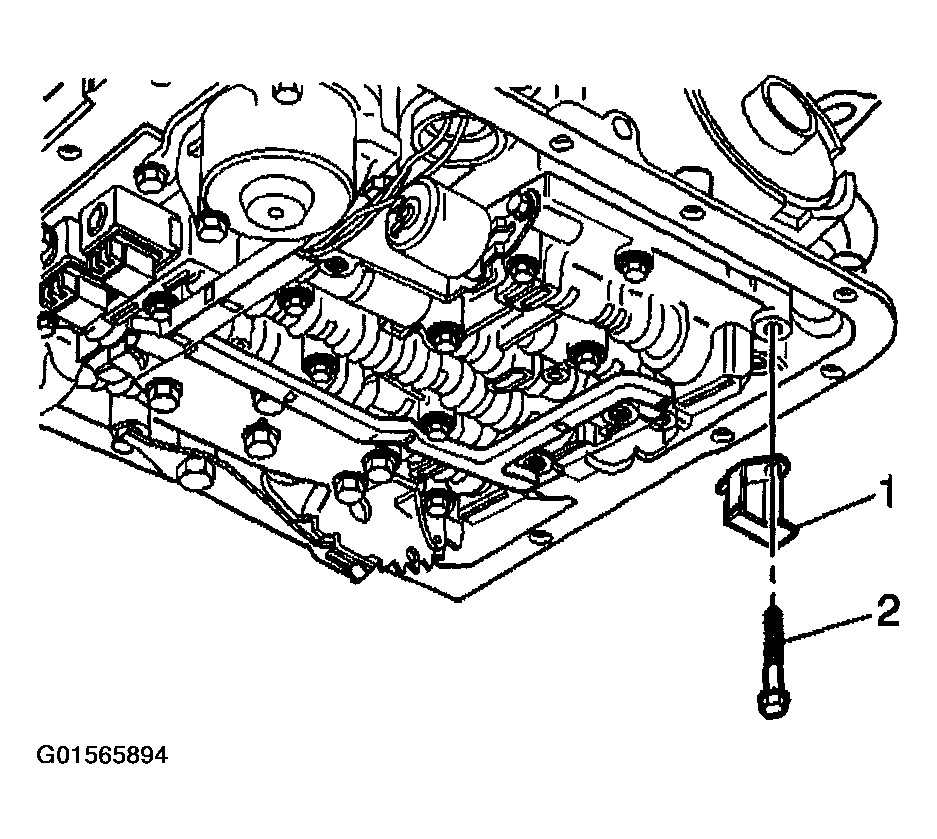

    Fig 15: Transmission Fluid Indicator Stop Bracket
    G01565894Courtesy of GENERAL MOTORS CORP.
  19. Connect the internal wiring harness electrical connectors to the following components:
    • The transmission fluid pressure manual valve position switch (1)
    • The 1-2 shift solenoid (2)
    • The 2-3 shift solenoid (3)
    • The pressure control solenoid (4)
    • The TCC PWM solenoid (5)
    • The 3-2 shift solenoid (6)

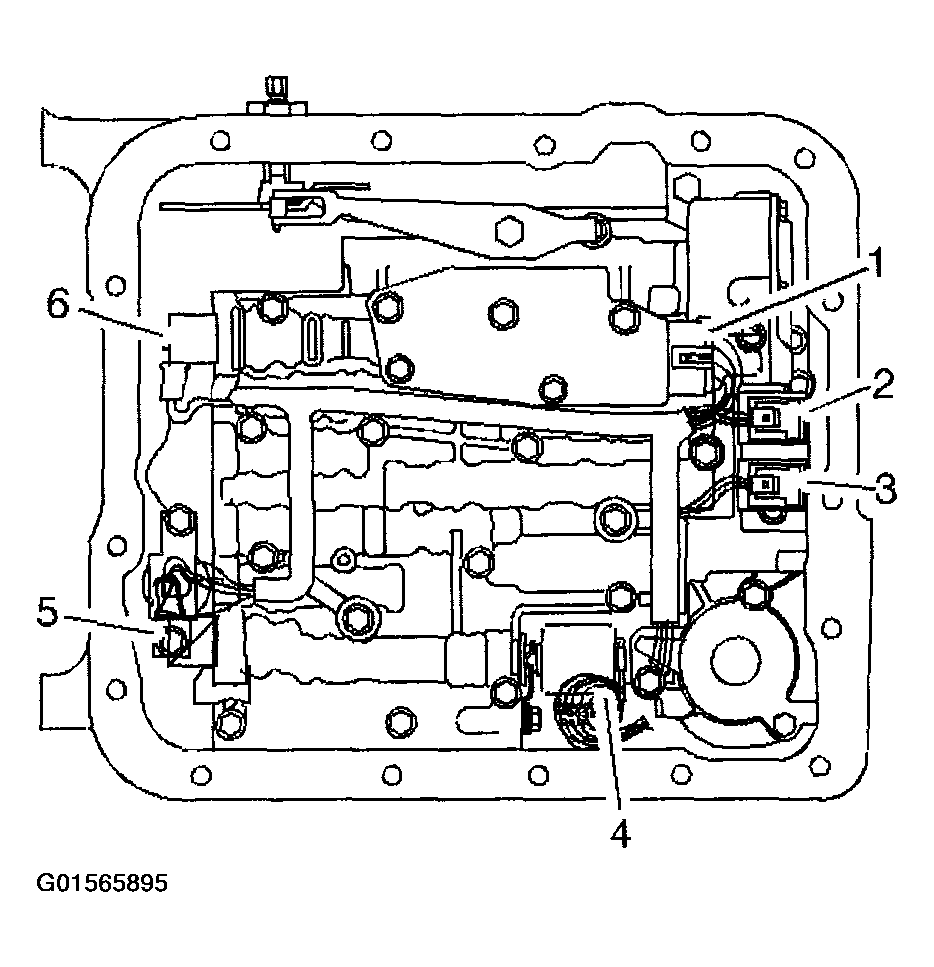

      Fig 16: Connecting Internal Wiring Harness Electrical Connectors To Located Components
      G01565895Courtesy of GENERAL MOTORS CORP.
    • Install the transmission oil pan and filter. Refer to AUTOMATIC TRANSMISSION FLUID/FILTER REPLACEMENT .
    • Lower the vehicle.
    • Fill the transmission to the proper level with DEXRON® III transmission fluid. Refer to TRANSMISSION FLUID CHECKING PROCEDURE .
