Removal Procedure

  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Support the transmission with a transmission jack.
  3. Remove the transmission mount to the transmission support retaining nut or nuts.
    Fig 1: Removing Transmission Mount To Transmission Support
    G01565941Courtesy of GENERAL MOTORS CORP.
  4. Raise the transmission to take the weight off of the mount.
  5. Remove the transmission mount to the transmission or transfer case adapter mounting bolts (1).

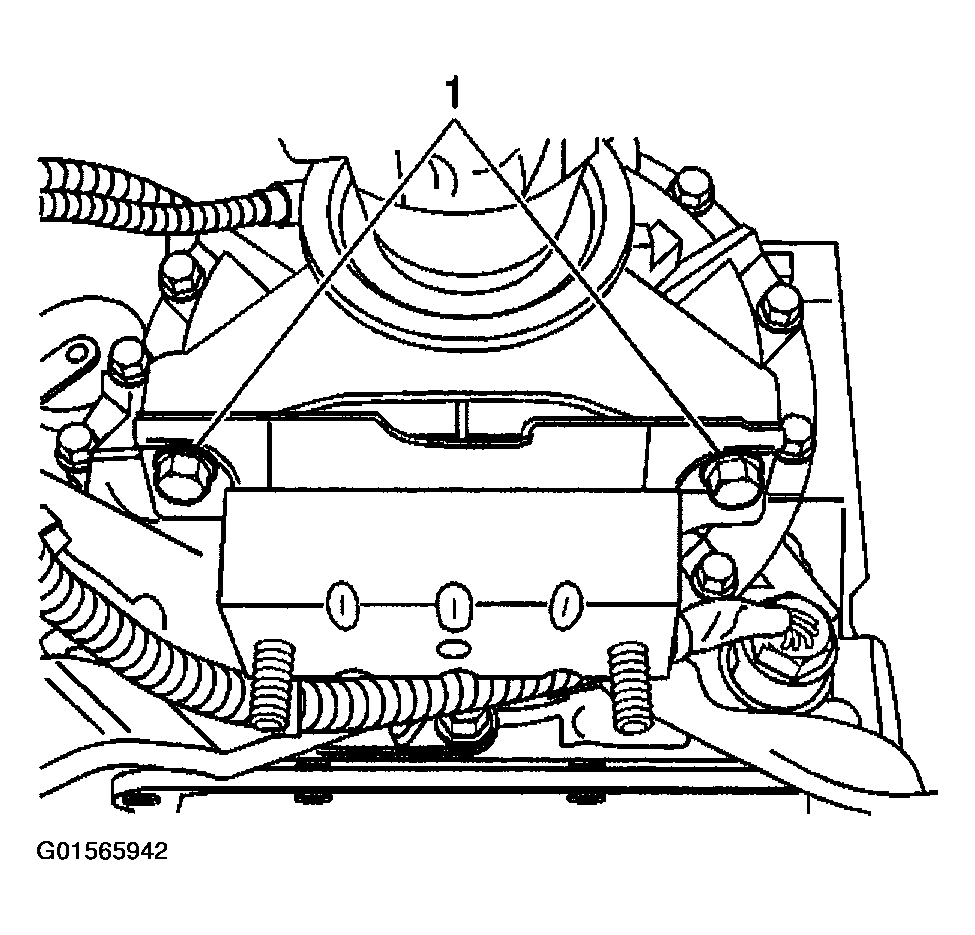

    Fig 2: Removing Transmission Mount To Transmission Or Transfer Case Adapter Mounting Bolts
    G01565942Courtesy of GENERAL MOTORS CORP.
  6. Raise the transmission just enough to remove the transmission mount.
  7. Remove the transmission mount from the vehicle.
