Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the oil cooler lines from the radiator. Refer to TRANSMISSION OIL COOLER LINE QUICK CONNECT FITTING .
  3. Remove the oil cooler lines from the transmission. Refer to TRANSMISSION OIL COOLER LINE QUICK CONNECT FITTING .
  4. Remove the oil cooler lines from the mounting bracket.

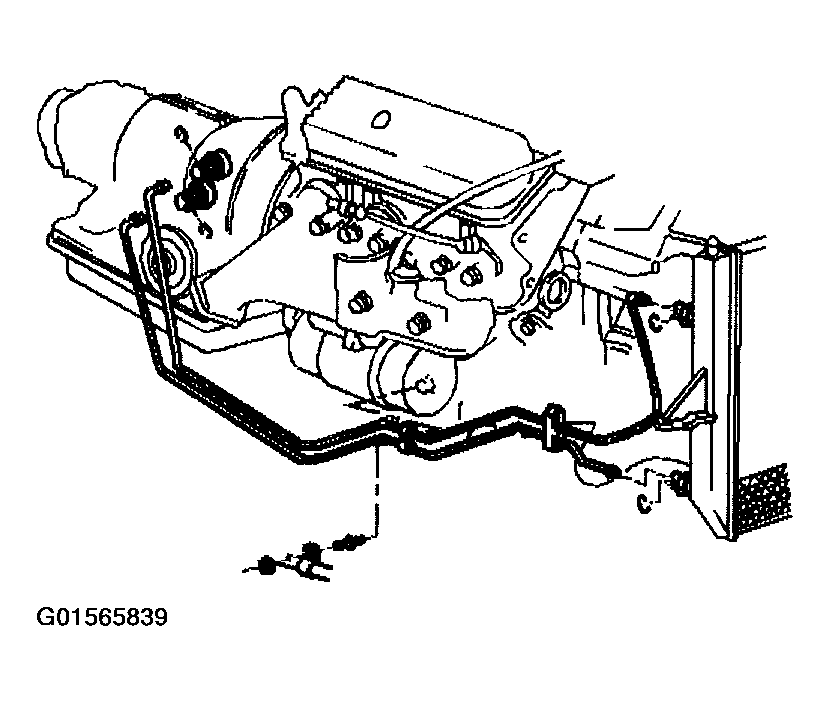

    Fig 1: Removing Oil Cooler Lines From Radiator & Transmission
    G01565839Courtesy of GENERAL MOTORS CORP.
  5. Remove the cooler lines from the vehicle.
