Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the two bolts securing the transmission heat shield to the transmission.
  3. Remove the transmission heat shield from the transmission.

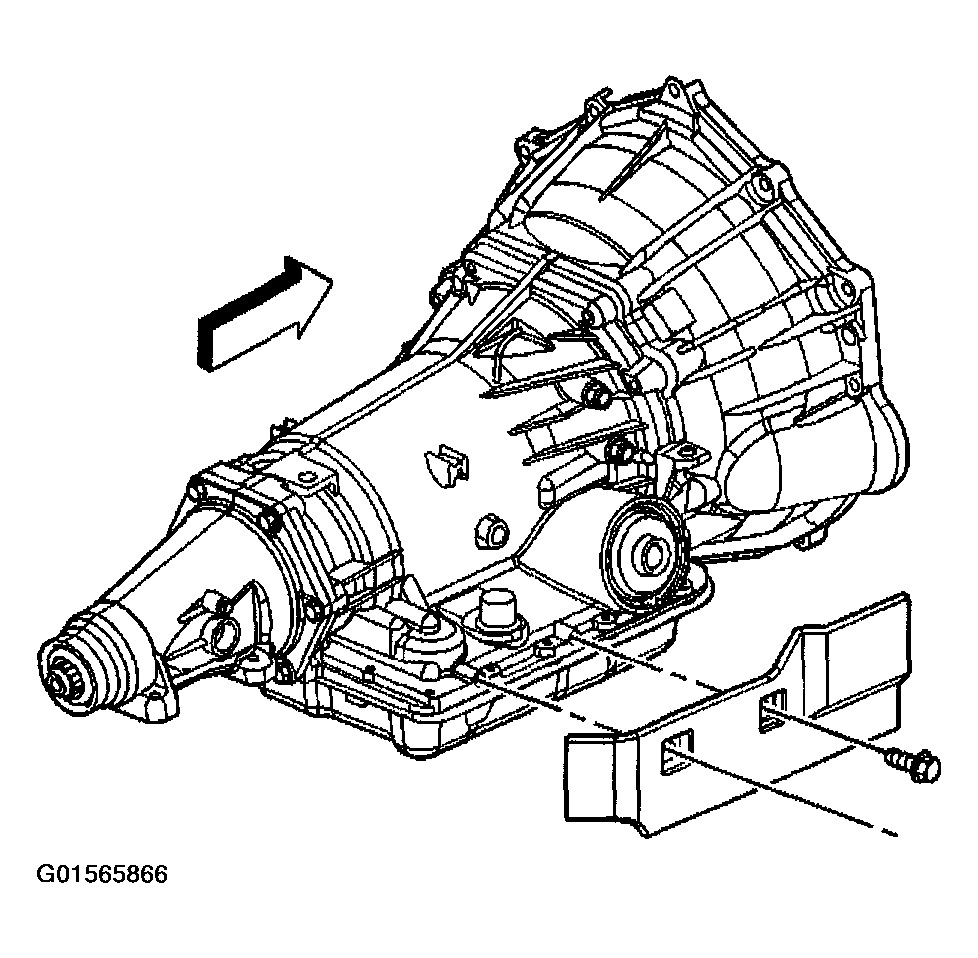

    Fig 1: Removing Heat Shield From Transmission
    G01565866Courtesy of GENERAL MOTORS CORP.
