Installation Procedure

  1. Install the transmission heat shield to the transmission.

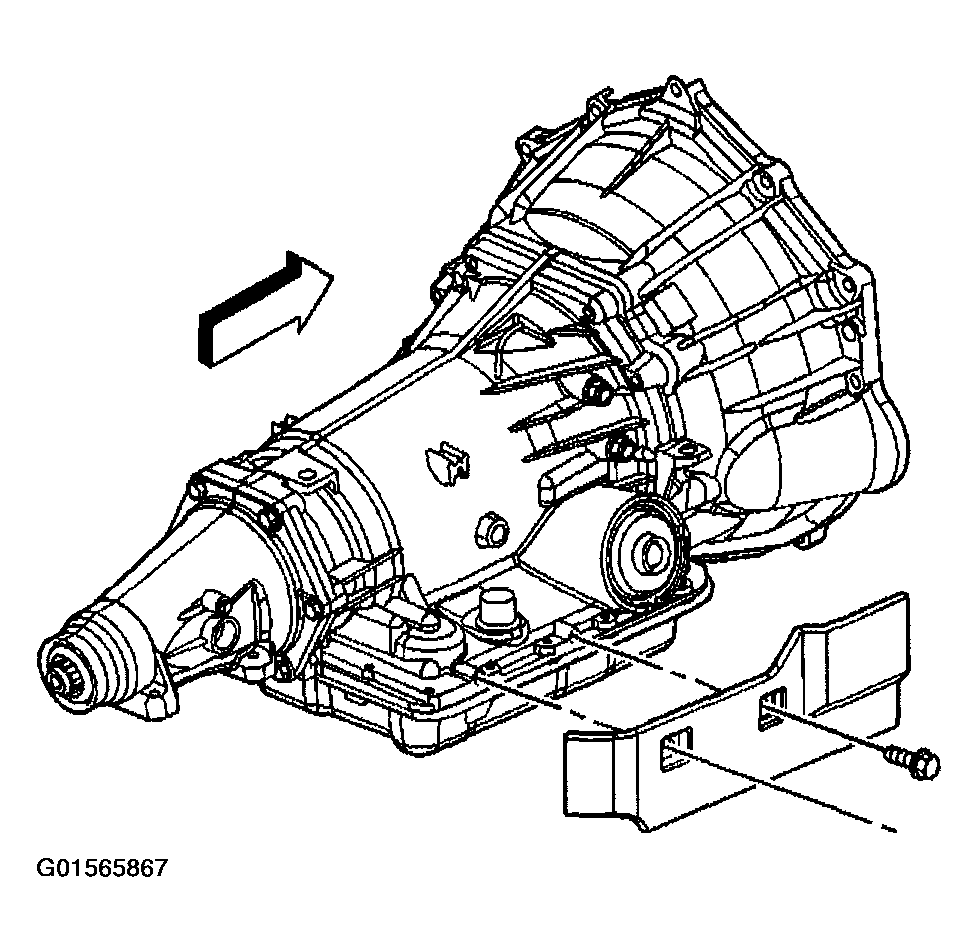

    Fig 1: Installing Heat Shield To Transmission
    G01565867Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the two bolts securing the transmission heat shield to the transmission.

    Tighten

    Tighten the bolts to 17 N.m (13 lb ft).

  3. Lower the vehicle.
