Removal Procedure

  1. Remove the transmission fluid level indicator from the fluid fill tube.
  2. Remove the bolt securing the transmission fluid fill tube bracket to the engine.
  3. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  4. Remove the bolt securing the transmission fluid fill tube bracket to the transmission.

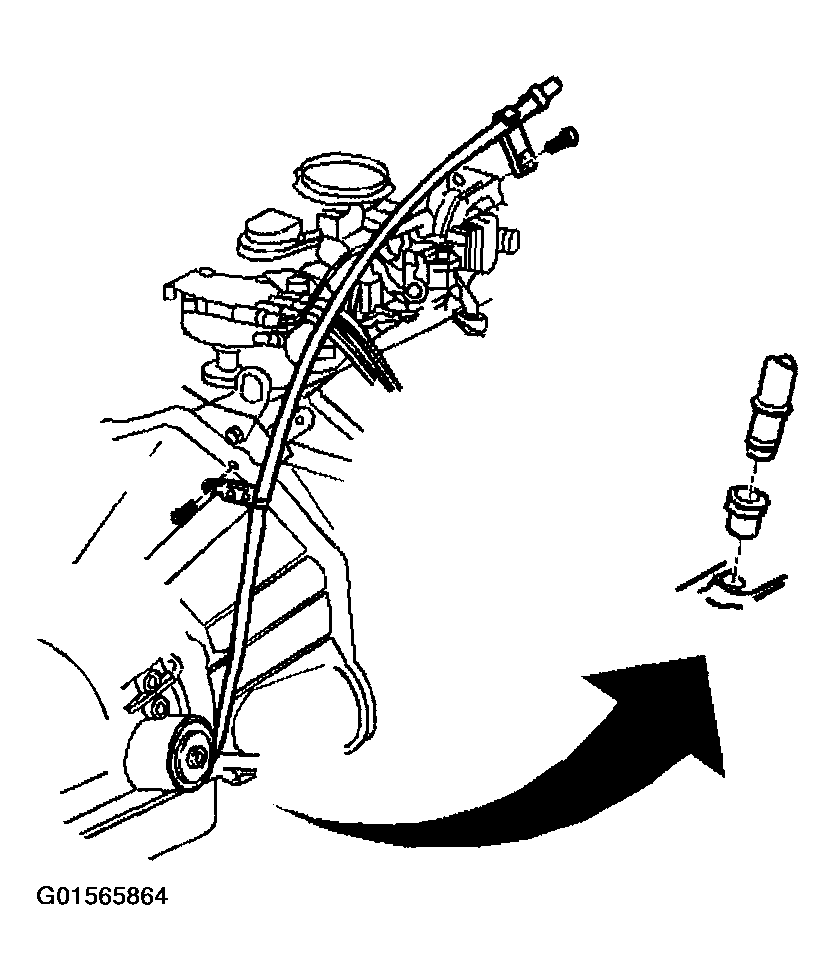

    Fig 1: Filler Tube & Seal
    G01565864Courtesy of GENERAL MOTORS CORP.
  5. Place a drain pan under the vehicle.
  6. Remove the transmission fluid fill tube from the transmission.
  7. Remove the transmission fill tube seal.
