Installation Procedure

  1. Install a new oil level indicator tube seal into the transmission case.
  2. Install the oil level indicator tube into the seal.
    NOTE: Refer to FASTENER NOTICE in Caution and Notices.
  3. Install the bolt securing the oil level indicator tube bracket to the transmission.

    Tighten

    Tighten the bolt to 47 N.m (35 lb ft).

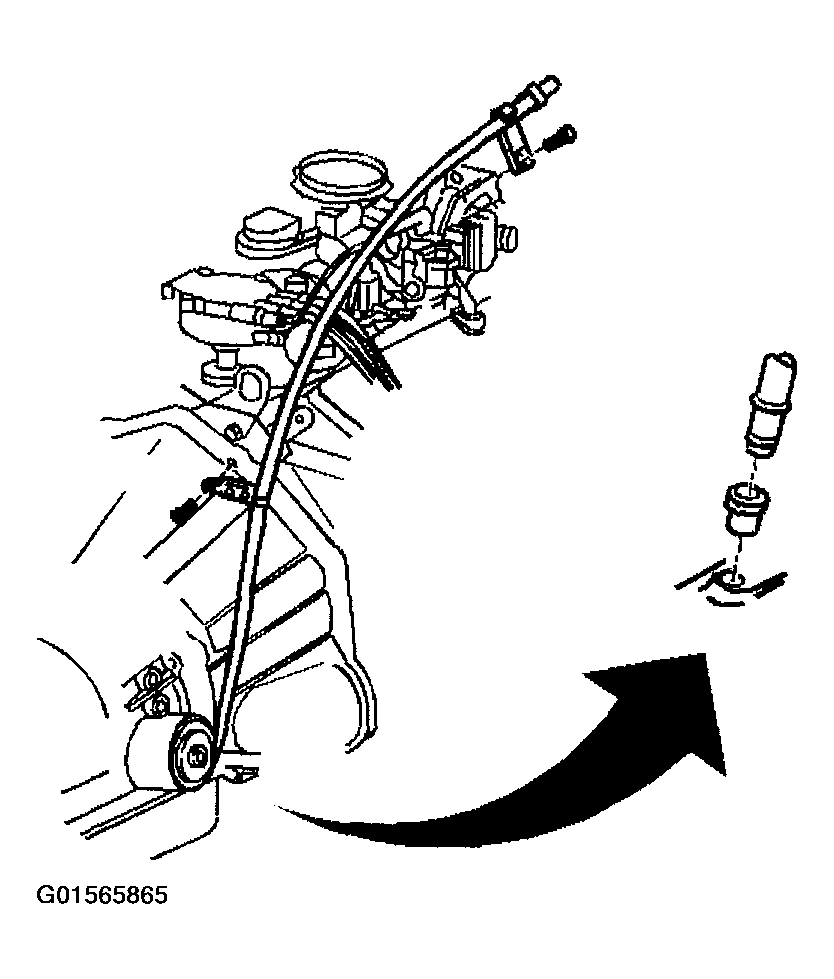

    Fig 1: Filler Tube & Seal
    G01565865Courtesy of GENERAL MOTORS CORP.
  4. Remove the drain pan from under the vehicle.
  5. Lower the vehicle.
  6. Install the bolt securing the oil level indicator tube bracket to the engine.

    Tighten

    Tighten the bolt to 6 N.m (53 lb in).

  7. Fill the transmission with DEXRON® III transmission fluid. Refer to TRANSMISSION FLUID CHECKING PROCEDURE .
