Removal Procedure

  1. Remove the transmission oil pan and filter. Refer to AUTOMATIC TRANSMISSION FLUID/FILTER REPLACEMENT .

    Important:  Do not remove the valve body for the following procedures. Removal of the 1-2 accumulator is necessary only if servicing the pressure control solenoid.

  2. Remove the 1-2 accumulator if necessary. Refer to ACCUMULATOR ASSEMBLY, SPACER PLATE, AND GASKETS .
  3. Disconnect the internal wiring harness electrical connectors from the following components:
    • Transmission fluid pressure switch (1)
    • 1-2 shift control solenoid (2)
    • 2-3 shift control solenoid (3)
    • Pressure control solenoid (4)
    • TCC PWM solenoid (5)
    • 3-2 control solenoid (6)

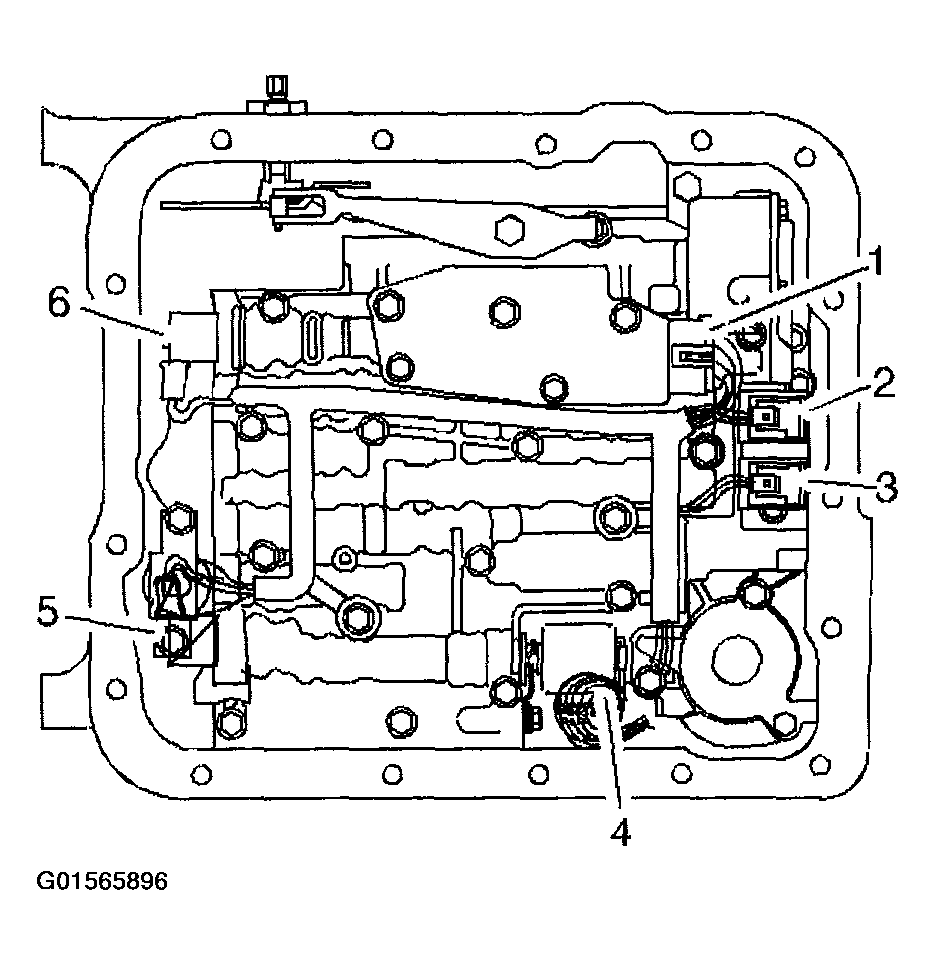

      Fig 1: Disconnecting Internal Wiring Harness Electrical Connectors From Locating Components
      G01565896Courtesy of GENERAL MOTORS CORP.
  4. Remove the pressure control solenoid retainer.
  5. Remove the pressure control solenoid.

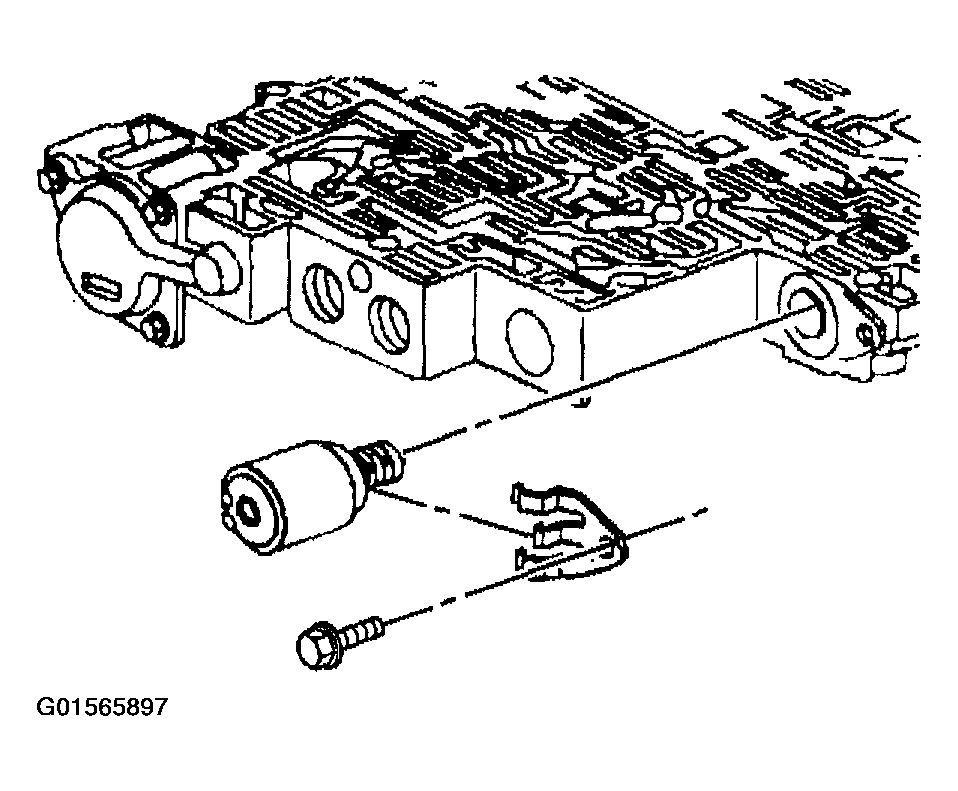

    Fig 2: Pressure Control Solenoid
    G01565897Courtesy of GENERAL MOTORS CORP.
  6. Remove the 1-2 and 2-3 shift solenoid retainers.
  7. Remove the 1-2 and 2-3 shift solenoids.

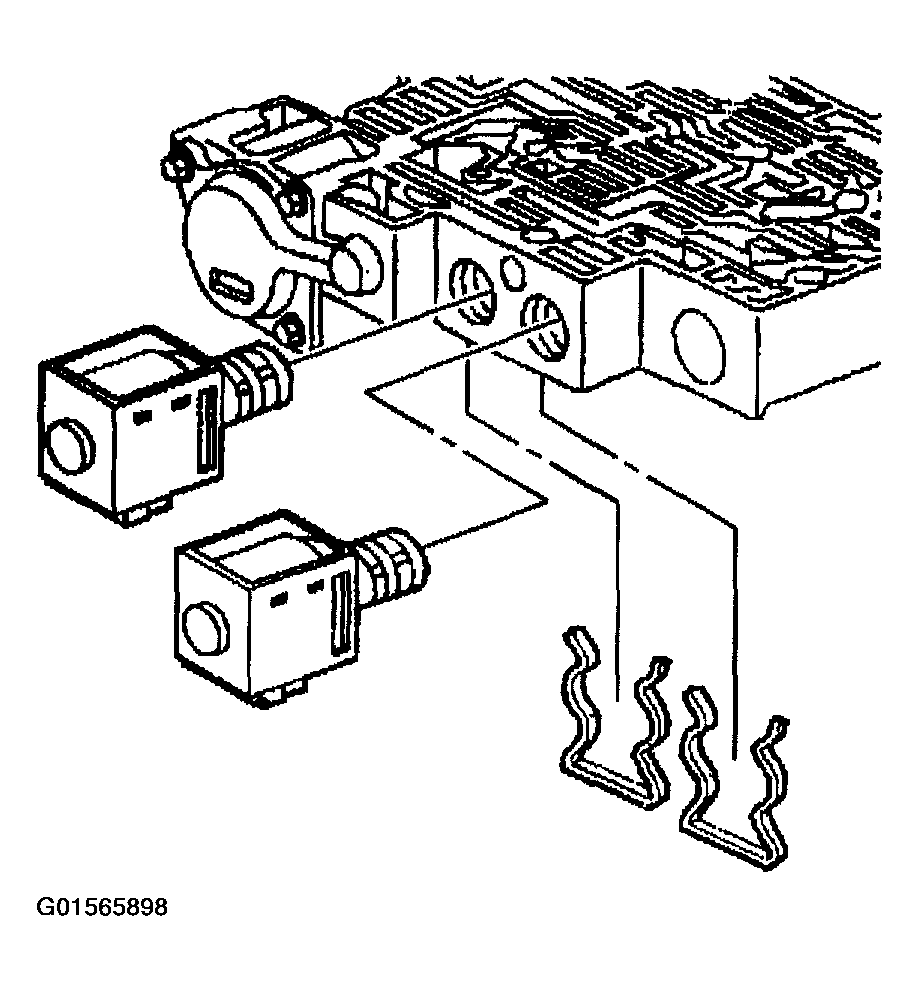

    Fig 3: 1-2 & 2-3 Shift Solenoids
    G01565898Courtesy of GENERAL MOTORS CORP.
  8. Remove the 3-2 control solenoid retainer.
  9. Remove the 3-2 control solenoid.
    Fig 4: 3-2 Control Solenoid
    G01565899Courtesy of GENERAL MOTORS CORP.
