Automatic Transmission Range Selector Cable Replacement: Notes

Removal Procedure

1. Block the drive wheels and place the vehicle in the neutral position.
2. Remove the drivers side knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT in Instrument Panel, Gages, and Console.
3. Remove the bottom half of the steering column trim cover.
4. Remove the range selector cable end from the steering column shift controller ball stud.

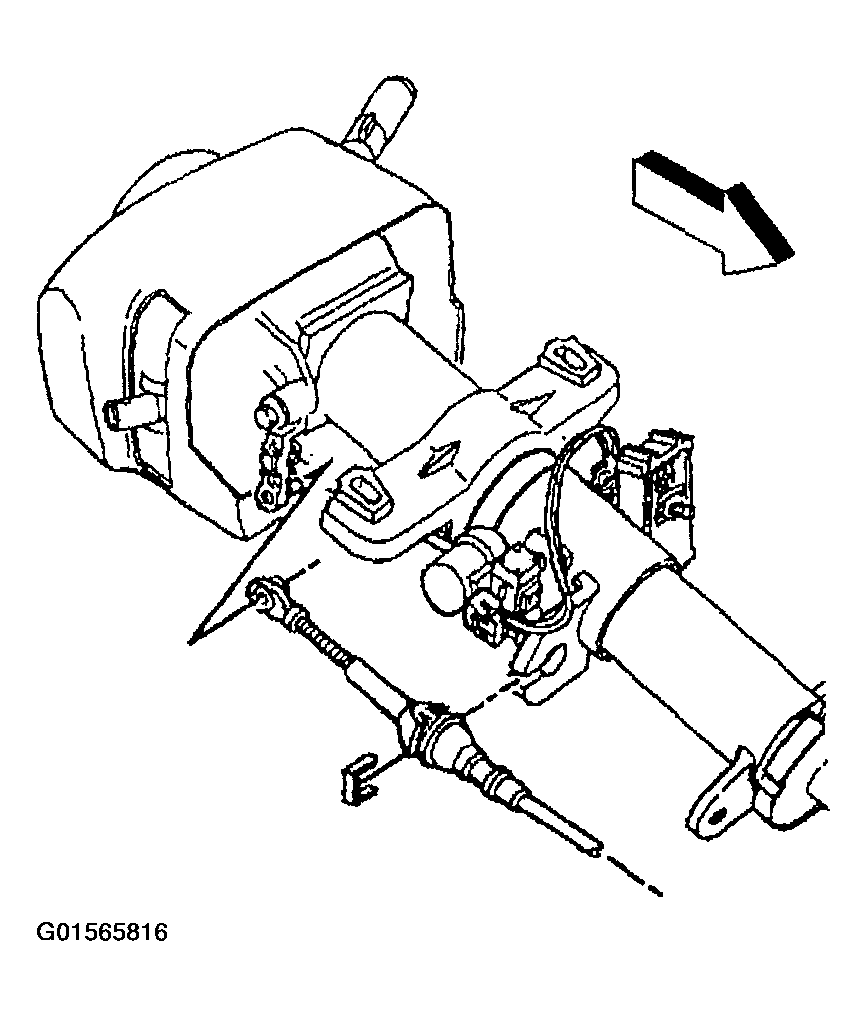

   Fig 1: Removing Range Selector Cable End From Steering Column Shift Controller Ball Stud

   Courtesy of GENERAL MOTORS CORP.
5. Remove the clip that secures the range selector cable to the steering column bracket.
6. Remove the range selector cable from the steering column bracket.
7. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
8. Remove the range selector cable end from the transmission range selector lever stud ball.

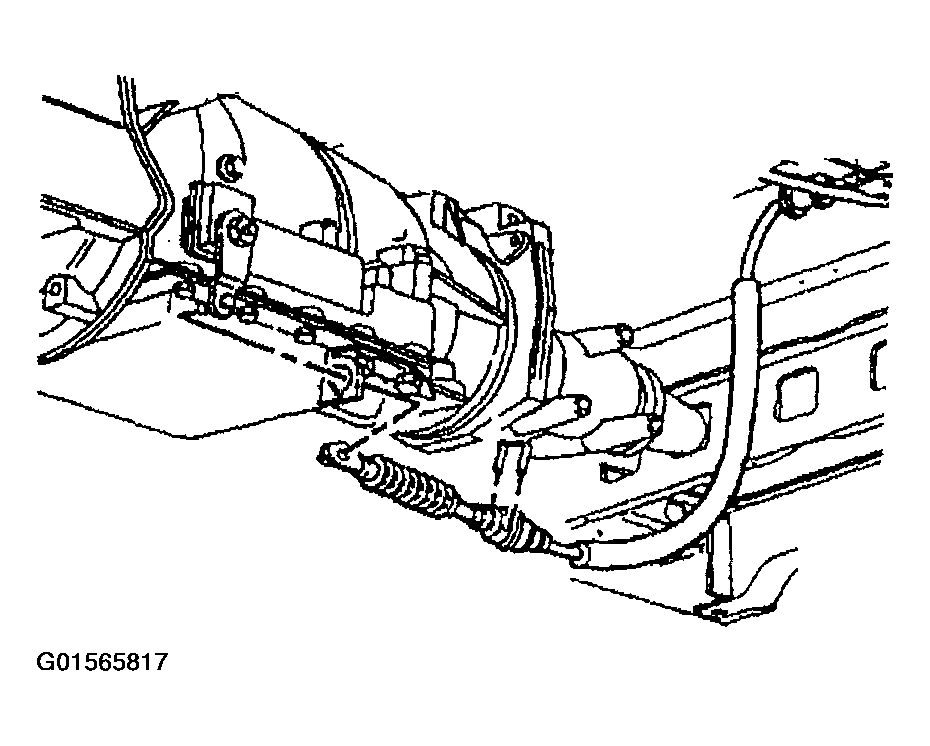

   Fig 2: Removing Range Selector Cable End From Transmission Range Selector Lever Stud Ball

   Courtesy of GENERAL MOTORS CORP.
9. Remove the clip from the bracket that secures the range selector cable to the transmission.
10. Remove the range selector cable from the bracket.
11. Remove the three range selector cable clips from the body.
12. Remove the grommet from the hole in the floor panel.
13. If the vehicle is equipped with a transfer case, remove the bolt and washer securing the clip and the range selector cable to the transfer case.

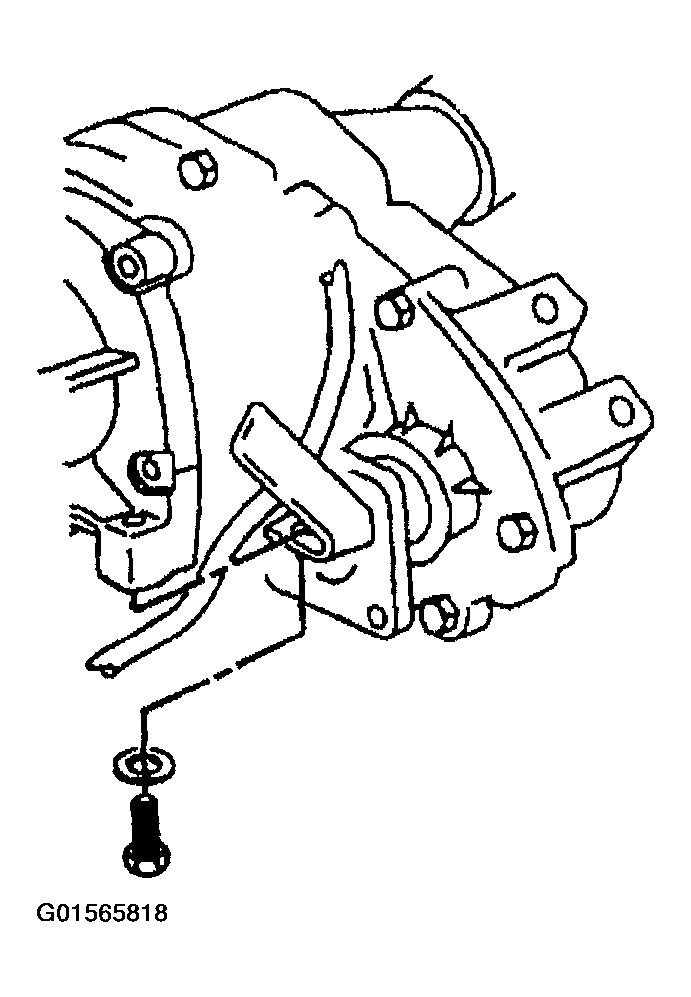

    Fig 3: Removing Bolt & Washer Securing Clip & Range Selector Cable To Transfer Case

    Courtesy of GENERAL MOTORS CORP.
14. Remove the range selector cable from the vehicle.
