Whine Noise Varying with RPM or Fluid Pressure

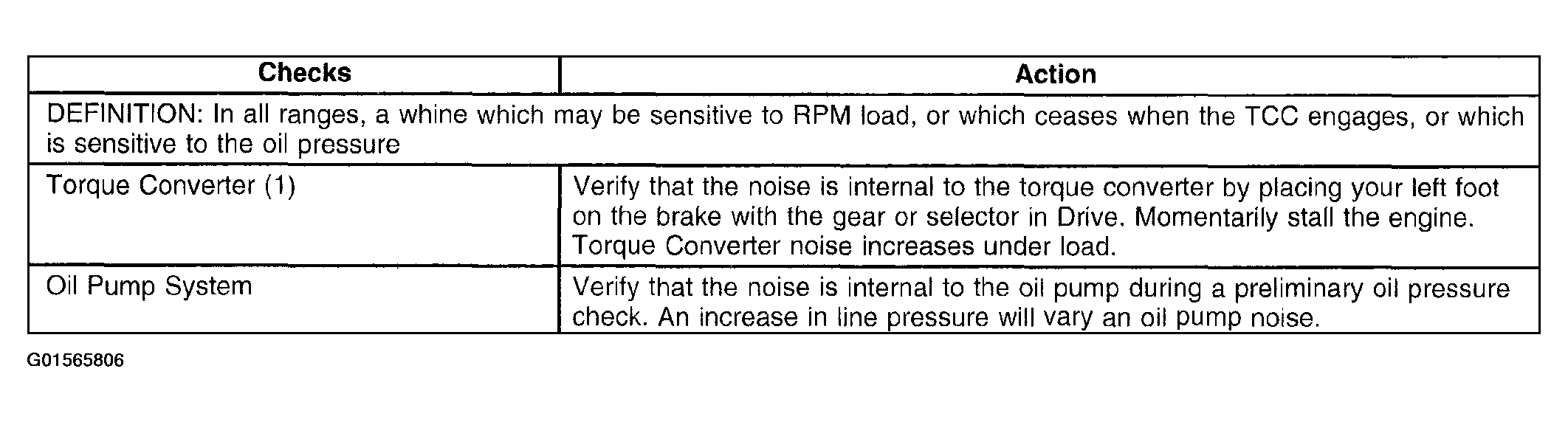

Fig 1: Whine Noise Varying With RPM Or Fluid Pressure

G01565806

Courtesy of GENERAL MOTORS CORP.
