Tow/Haul Switch/Indicator Always On or Inoperative: Overview

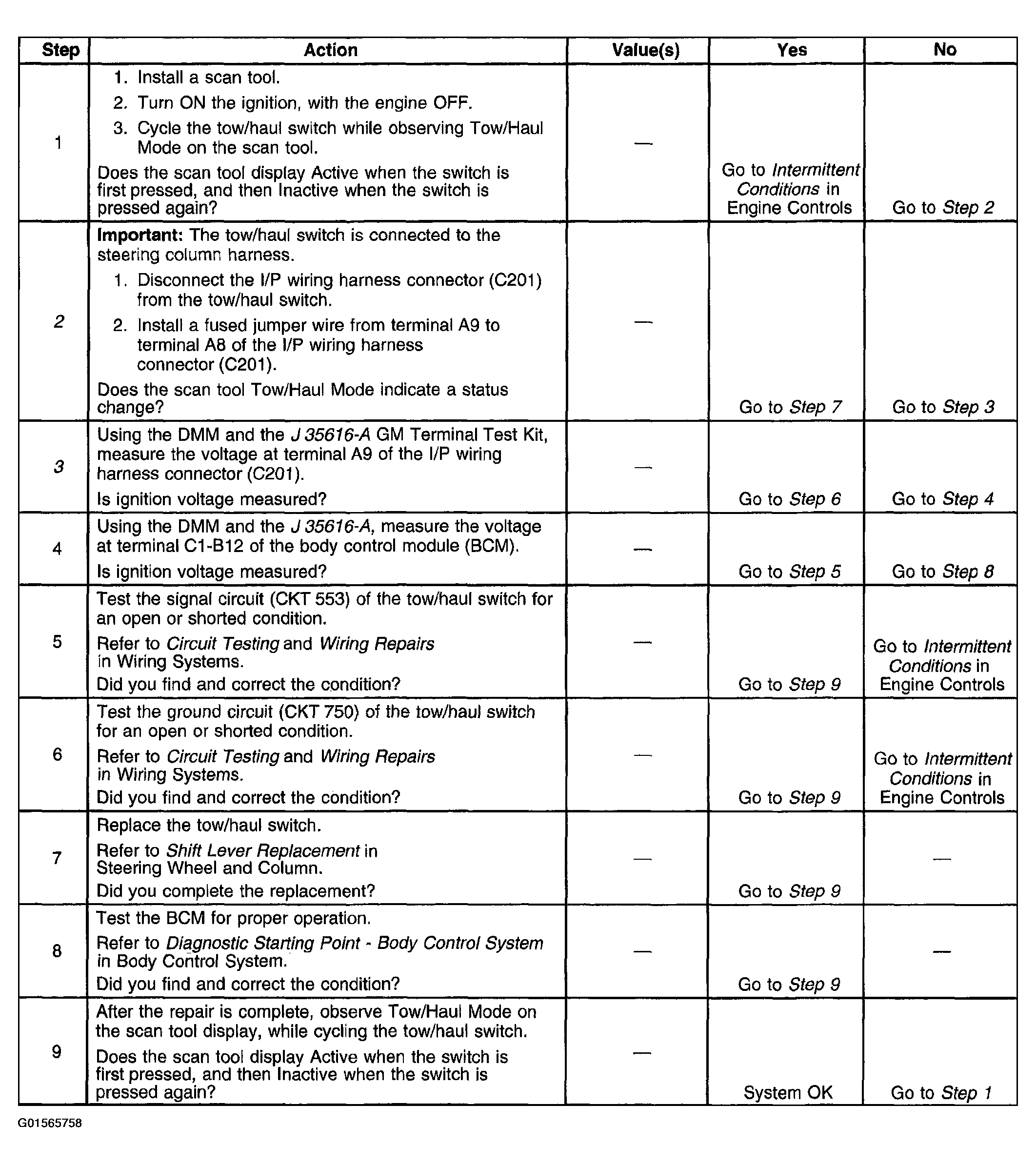

Fig 1: Tow/Haul Switch/Indicator Always On Or Inoperative Diagnosis

G01565758

Courtesy of GENERAL MOTORS CORP.
