Tow/Haul Switch/Indicator Always On or Inoperative: Notes

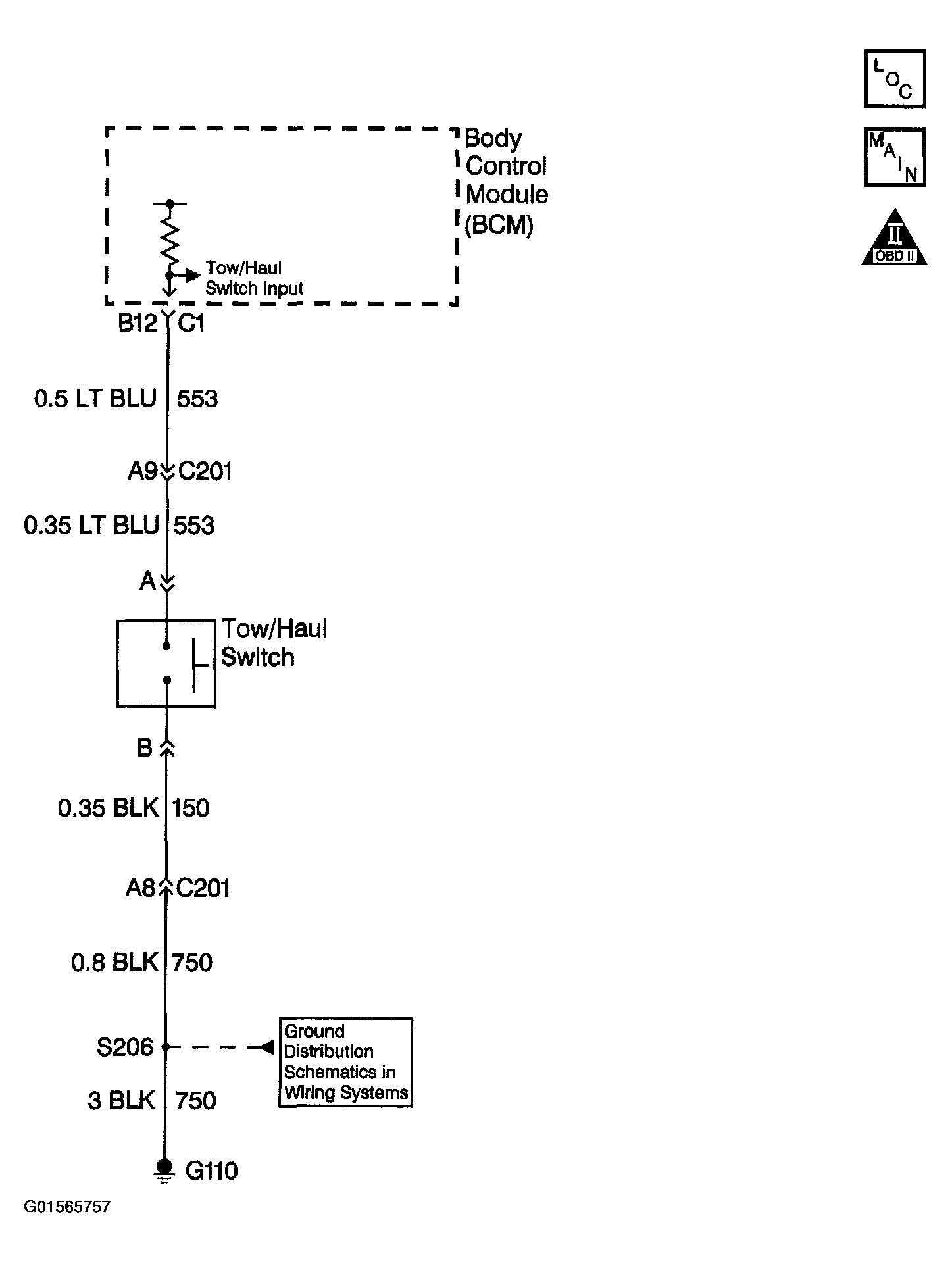

Fig 1: Tow/Haul Switch/Indicator Always On Or Inoperative Circuit Schematic

G01565757

Courtesy of GENERAL MOTORS CORP.
