Automatic Transmission - 4L60-E/4L65-E (Service & Replacement)
>>
Diagnostic Information and Procedures
>>
Symptoms - Automatic Transmission
Symptoms - Automatic Transmission

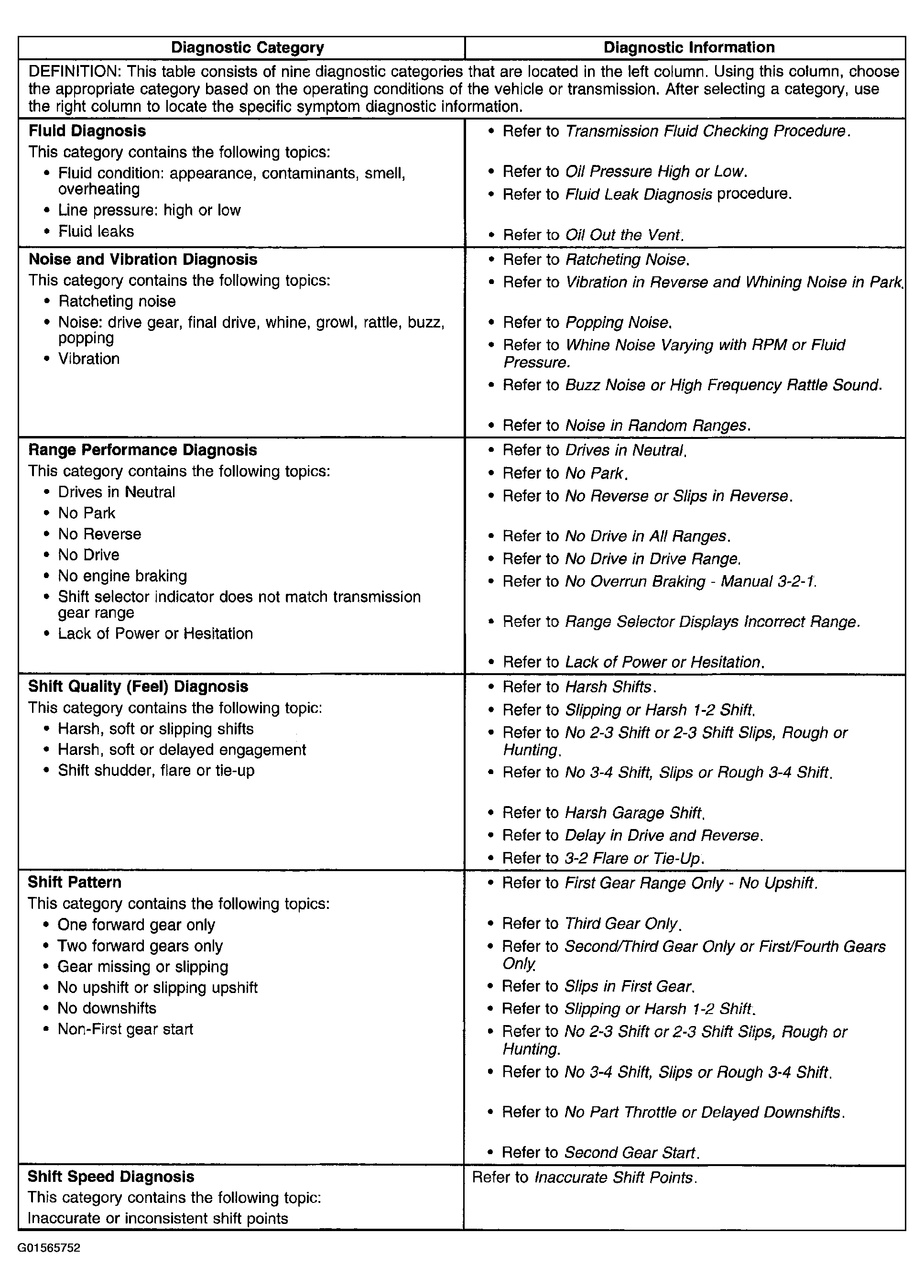

Fig 1: Symptoms - Automatic Transmission (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

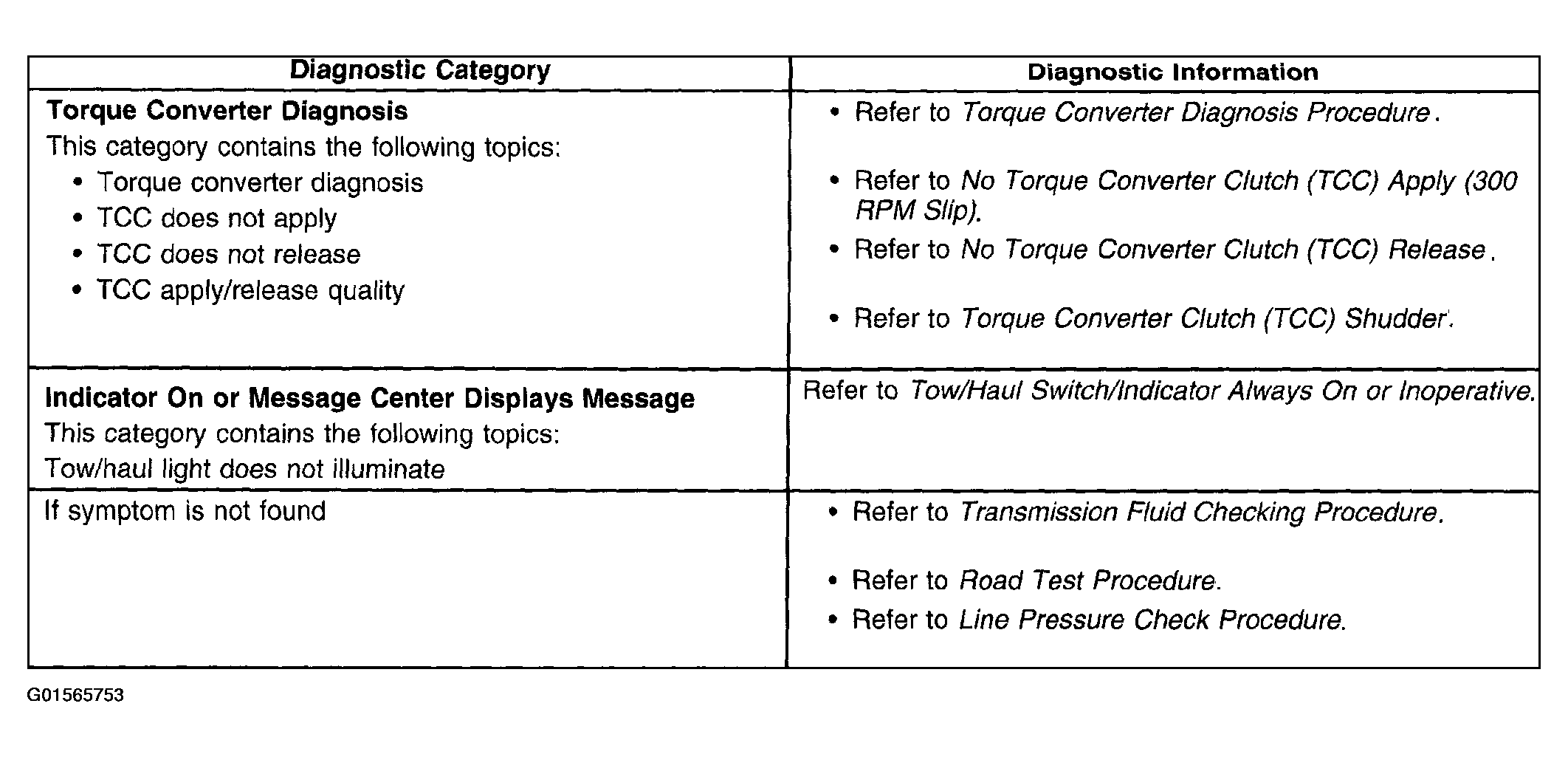

Fig 2: Symptoms - Automatic Transmission (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
