Slips in First Gear

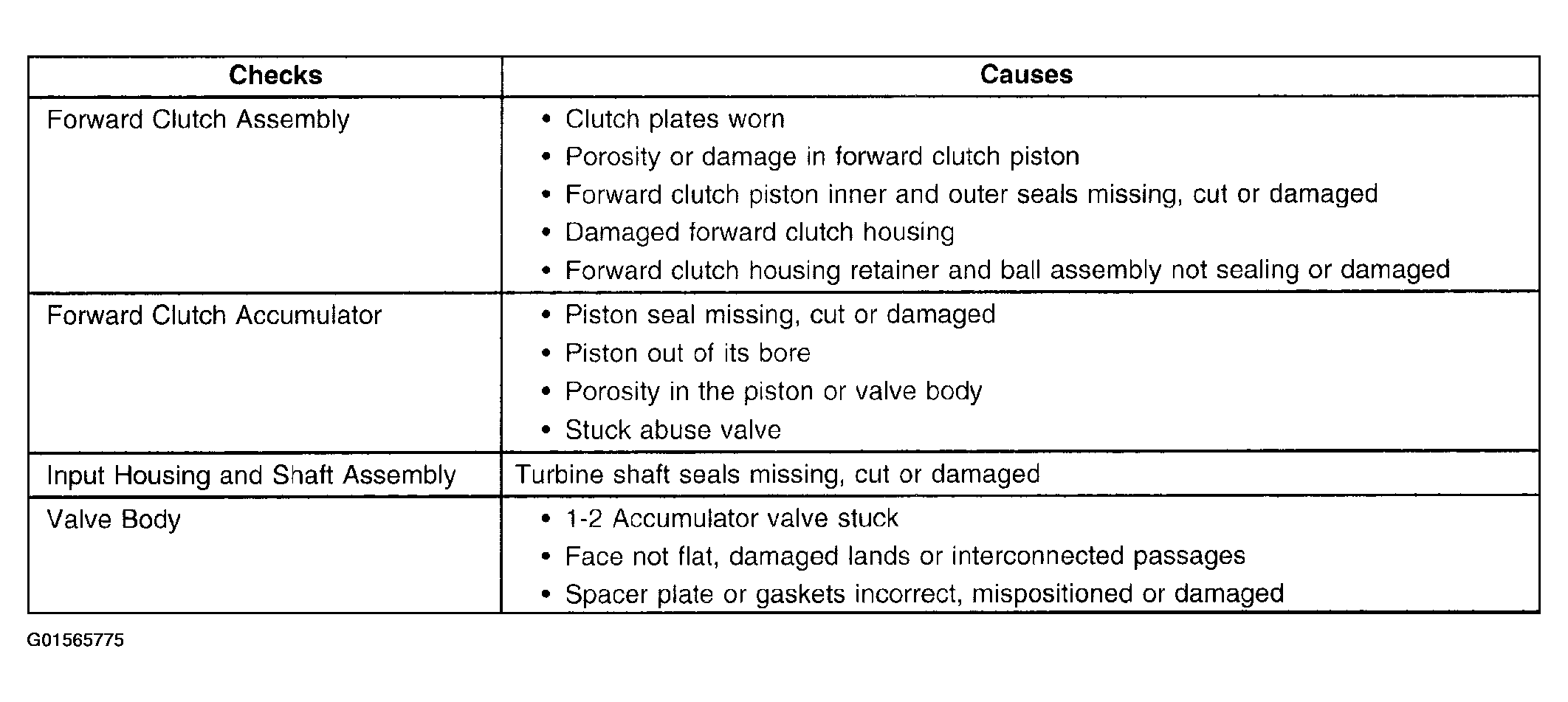

Fig 1: Slips In First Gear (1 Of 2)

G01565775

Courtesy of GENERAL MOTORS CORP.

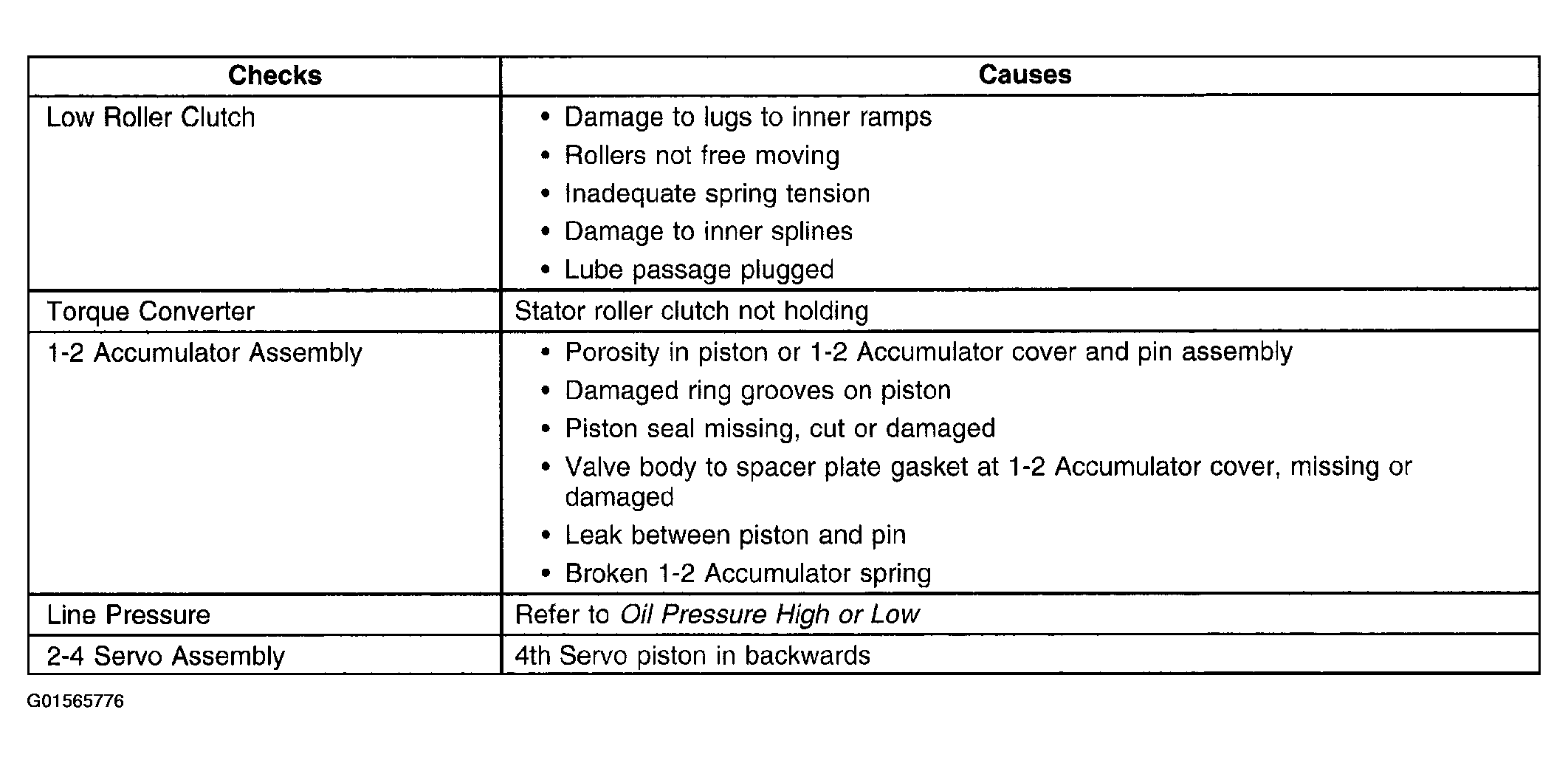

Fig 2: Slips In First Gear (2 Of 2)

G01565776

Courtesy of GENERAL MOTORS CORP.
