No Torque Converter Clutch (TCC) Apply (300 RPM Slip)

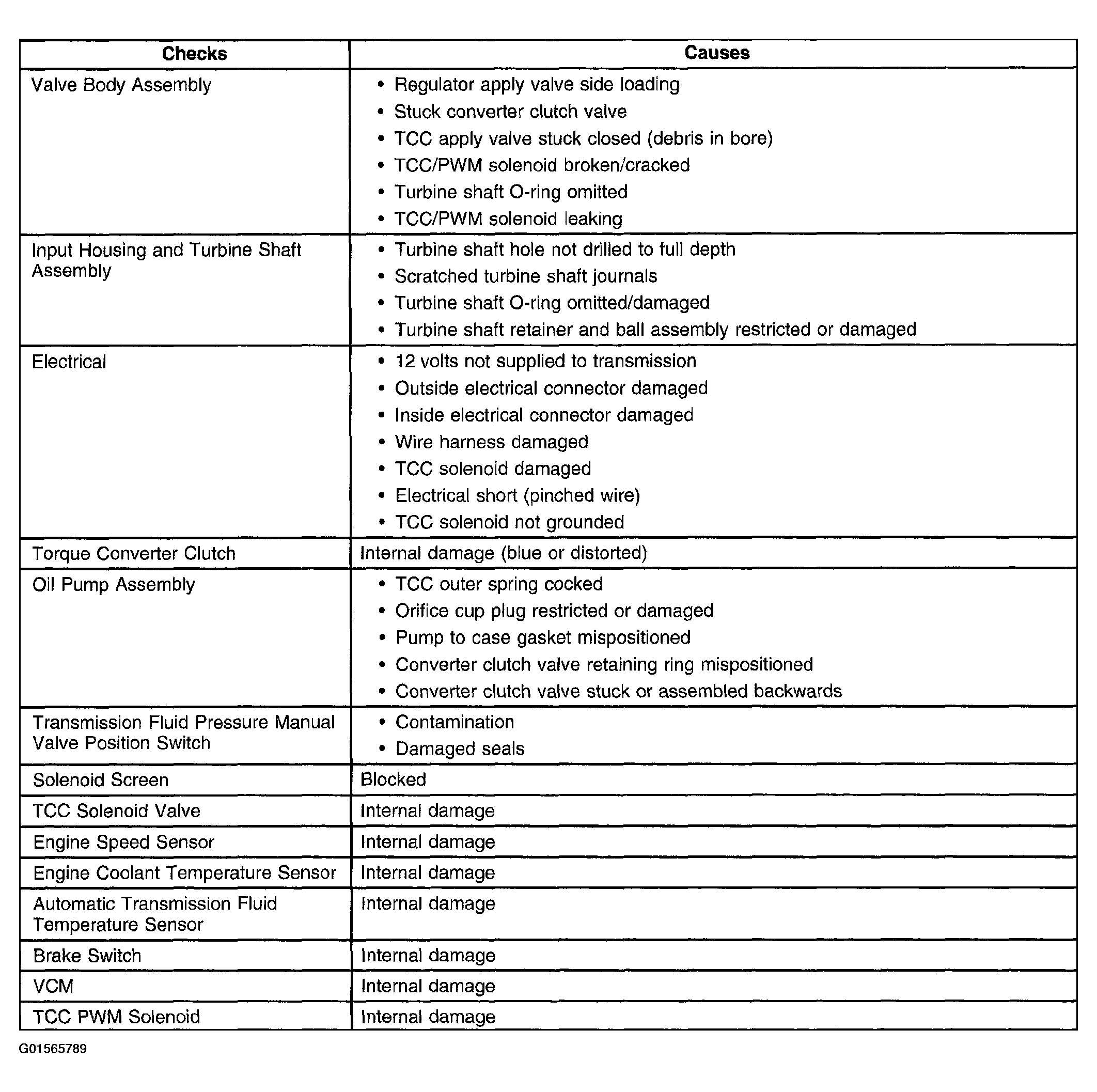

Fig 1: No Torque Converter Clutch Apply (300 RPM Slip)

G01565789

Courtesy of GENERAL MOTORS CORP.
