Indexing Torque Converter

To determine and correct a torque converter vibration, the following procedure may have to be performed several times to achieve the best possible torque converter to flywheel balance.

1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
2. Rotate the torque converter one bolt position.

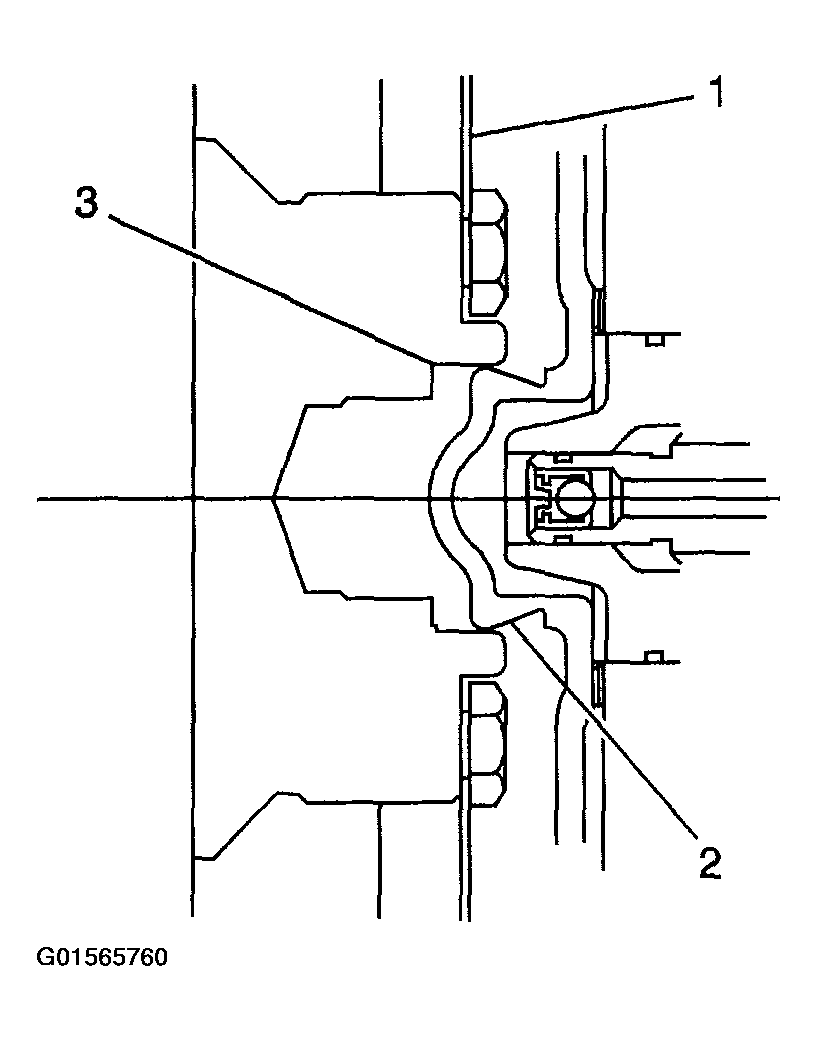

   Fig 1: Identifying Torque Converter Vibration Correction Method

   Courtesy of GENERAL MOTORS CORP.
3. Align the torque converter hub (2) in the engine crankshaft (3) and install the torque converter to flywheel bolts.
4. Lower the vehicle.
5. With the engine at idle speed and the transmission in PARK or NEUTRAL, observe the vibration. Refer to NOISE AND VIBRATION ANALYSIS .

   Repeat this procedure until you obtain the best possible balance.

6. Install the transmission converter cover bolts and the cover.
