DTC P1810: Invalid State Of The TFP Manual Valve Position Switch Circuit: Notes

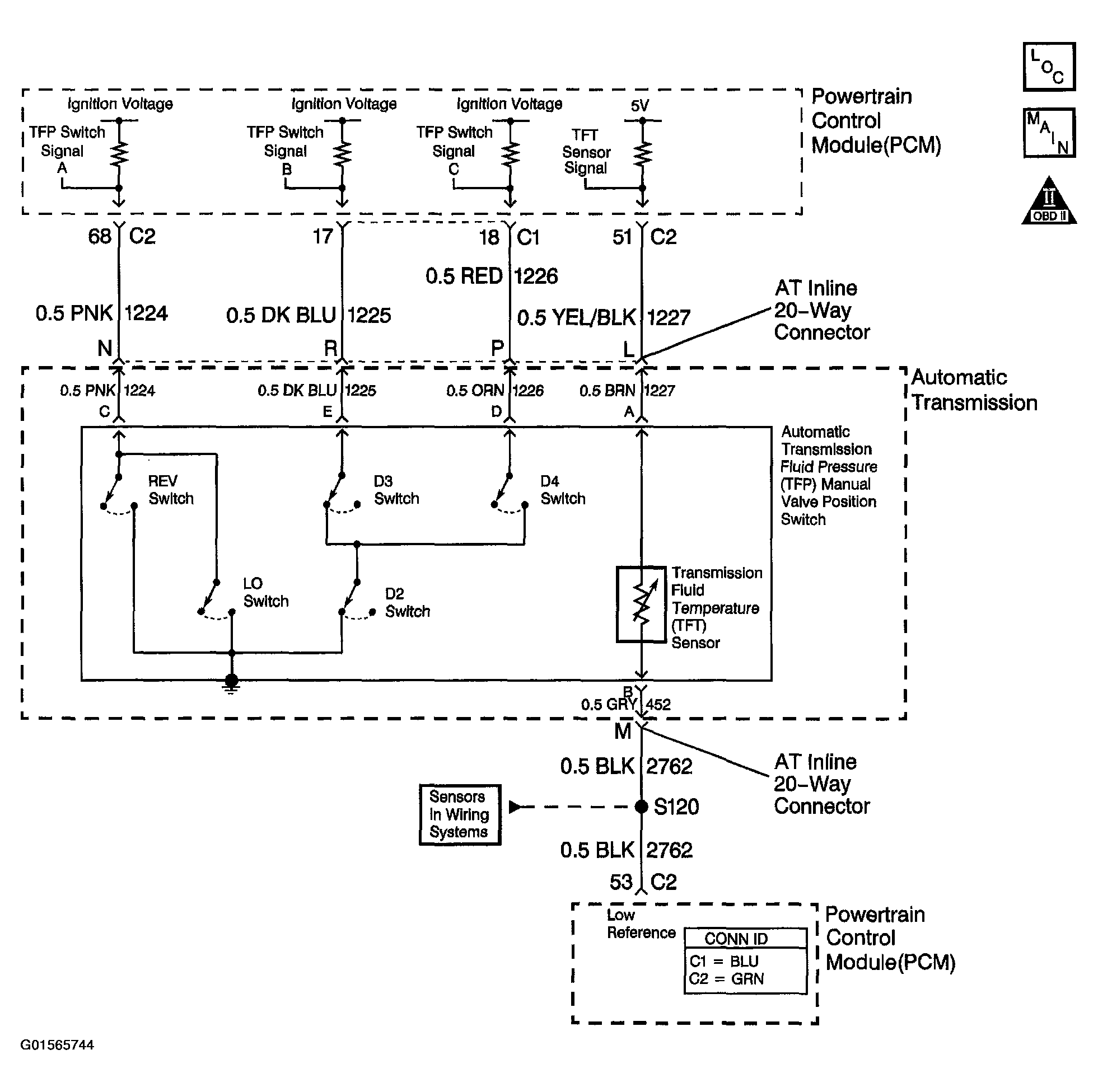

Fig 1: DTC P1810 Circuit Diagram

G01565744

Courtesy of GENERAL MOTORS CORP.
