Test Description

The number below refers to the step number on the diagnostic table.

1. 3. This step tests the torque converter for slippage while in a commanded lock-up state.

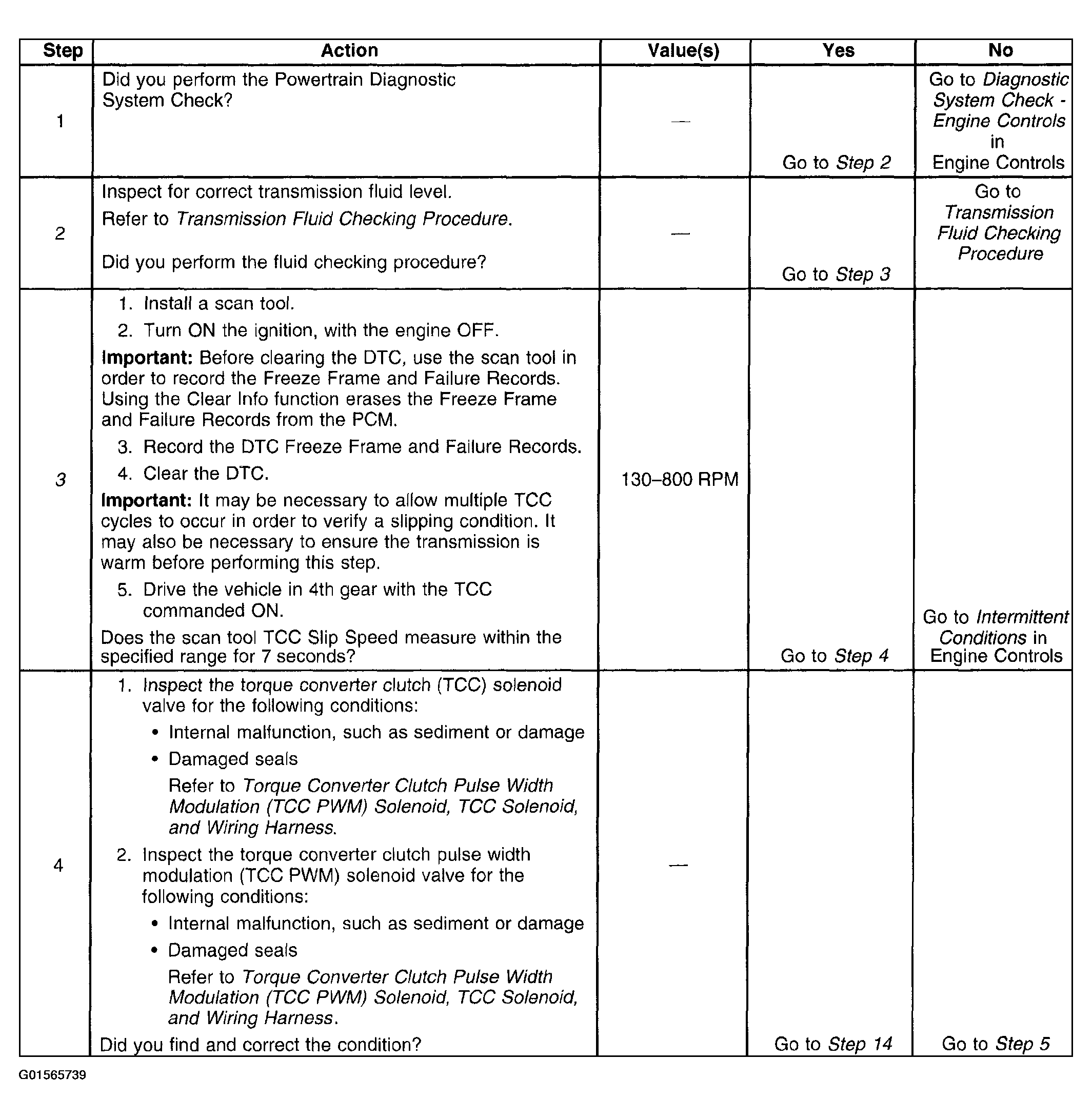

Fig 1: DTC P0894 Diagnosis (Steps 1-4)

Courtesy of GENERAL MOTORS CORP.

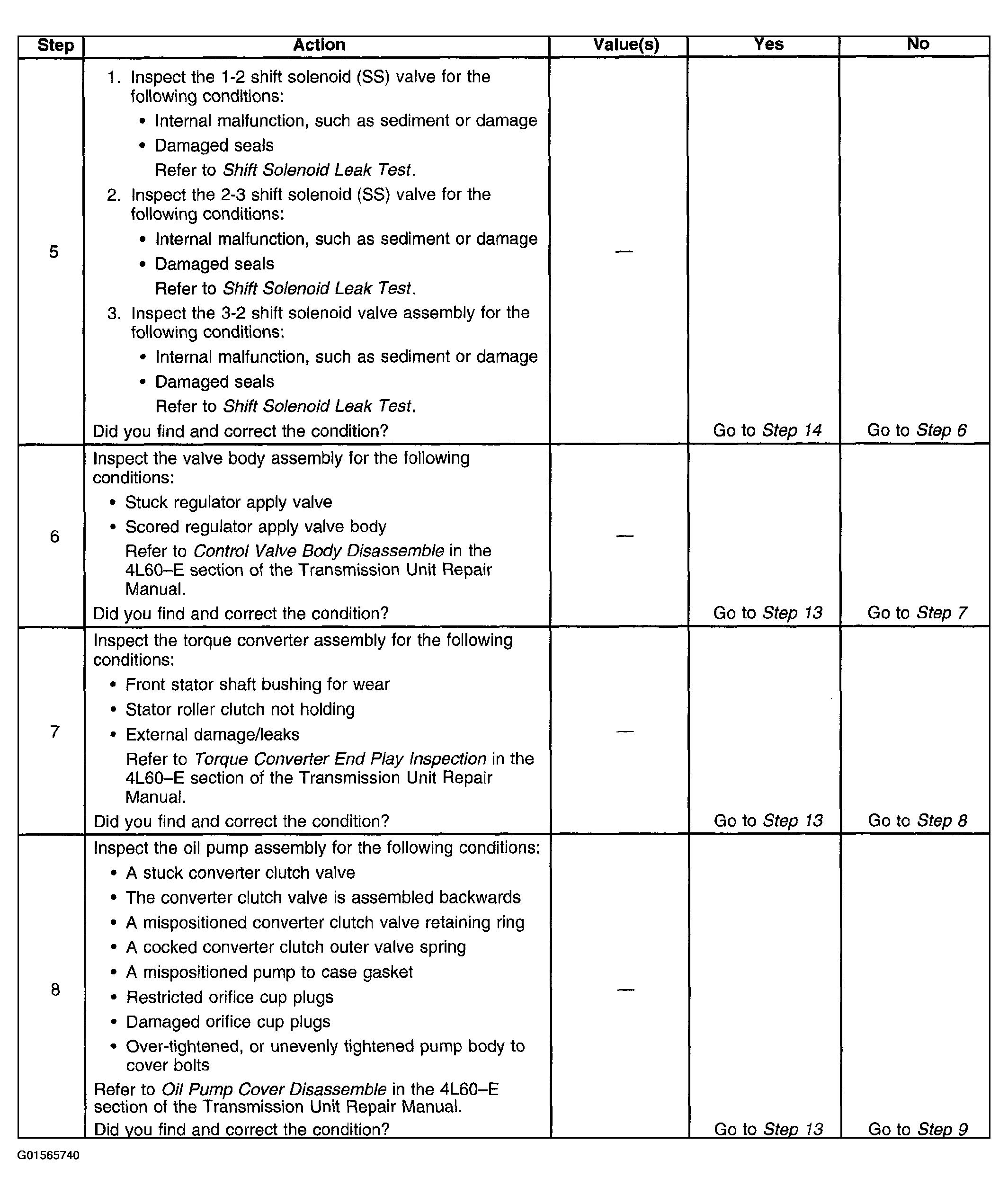

Fig 2: DTC P0894 Diagnosis (Steps 5-8)

Courtesy of GENERAL MOTORS CORP.

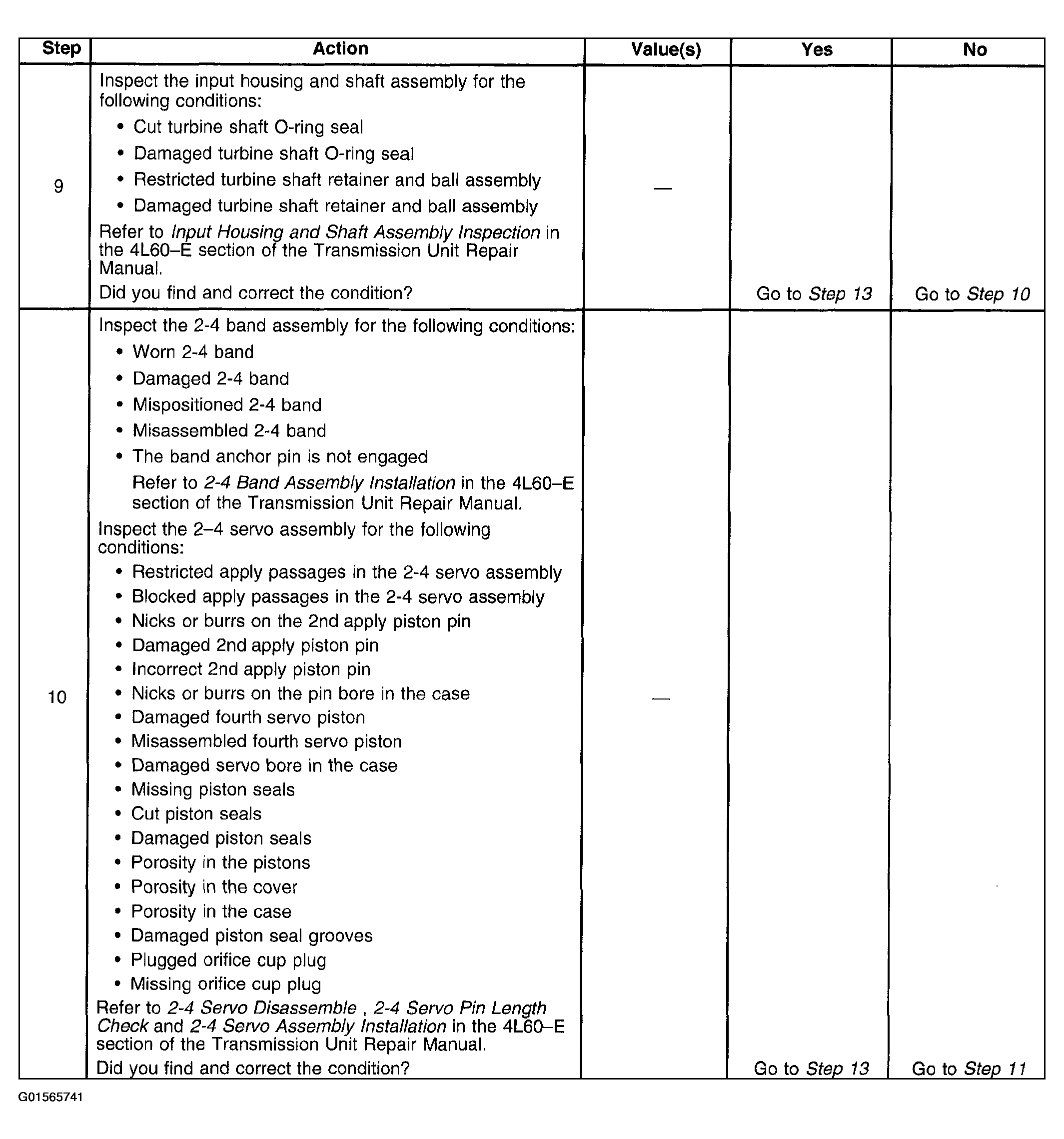

Fig 3: DTC P0894 Diagnosis (Steps 9-10)

Courtesy of GENERAL MOTORS CORP.

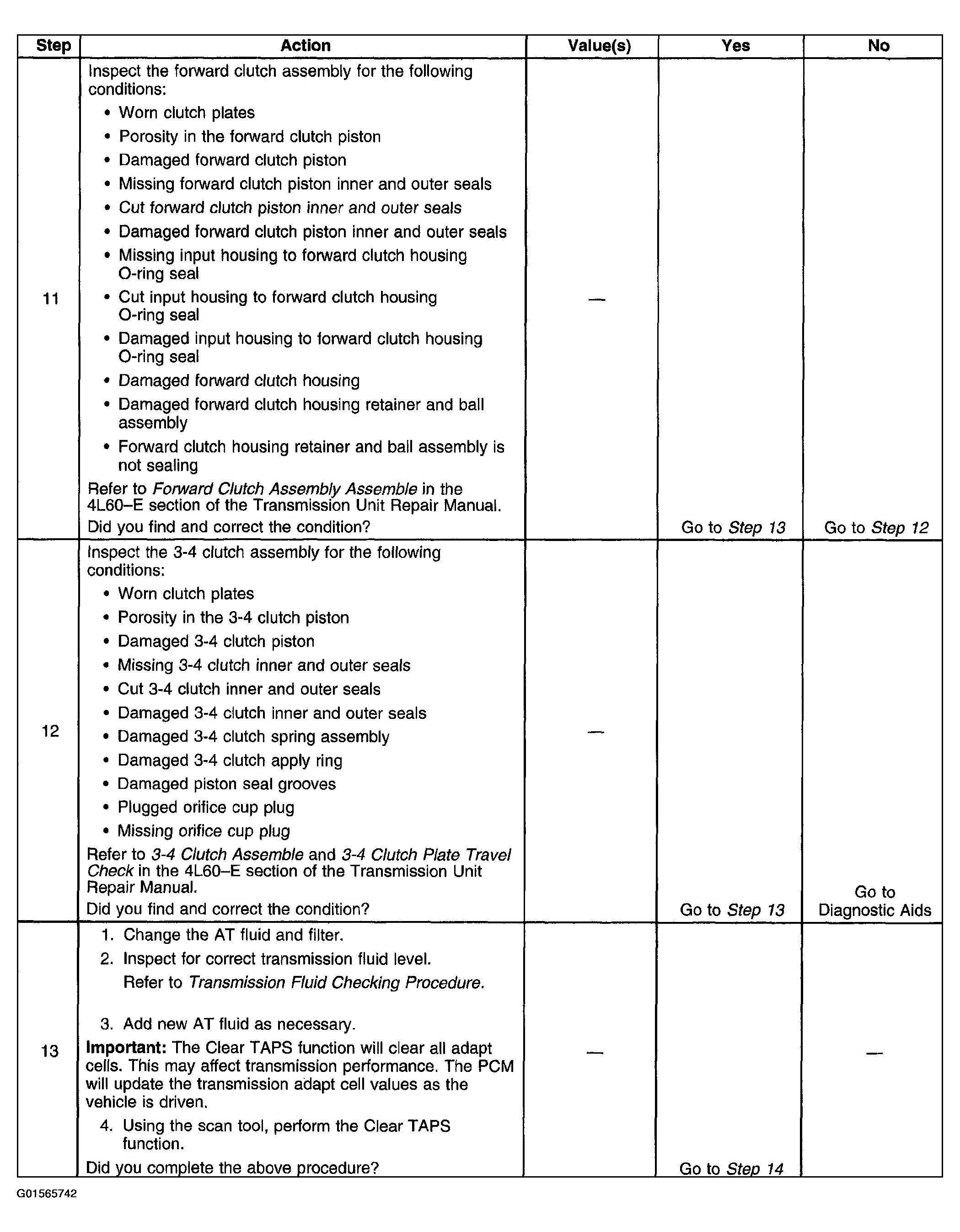

Fig 4: DTC P0894 Diagnosis (Steps 11-13)

Courtesy of GENERAL MOTORS CORP.

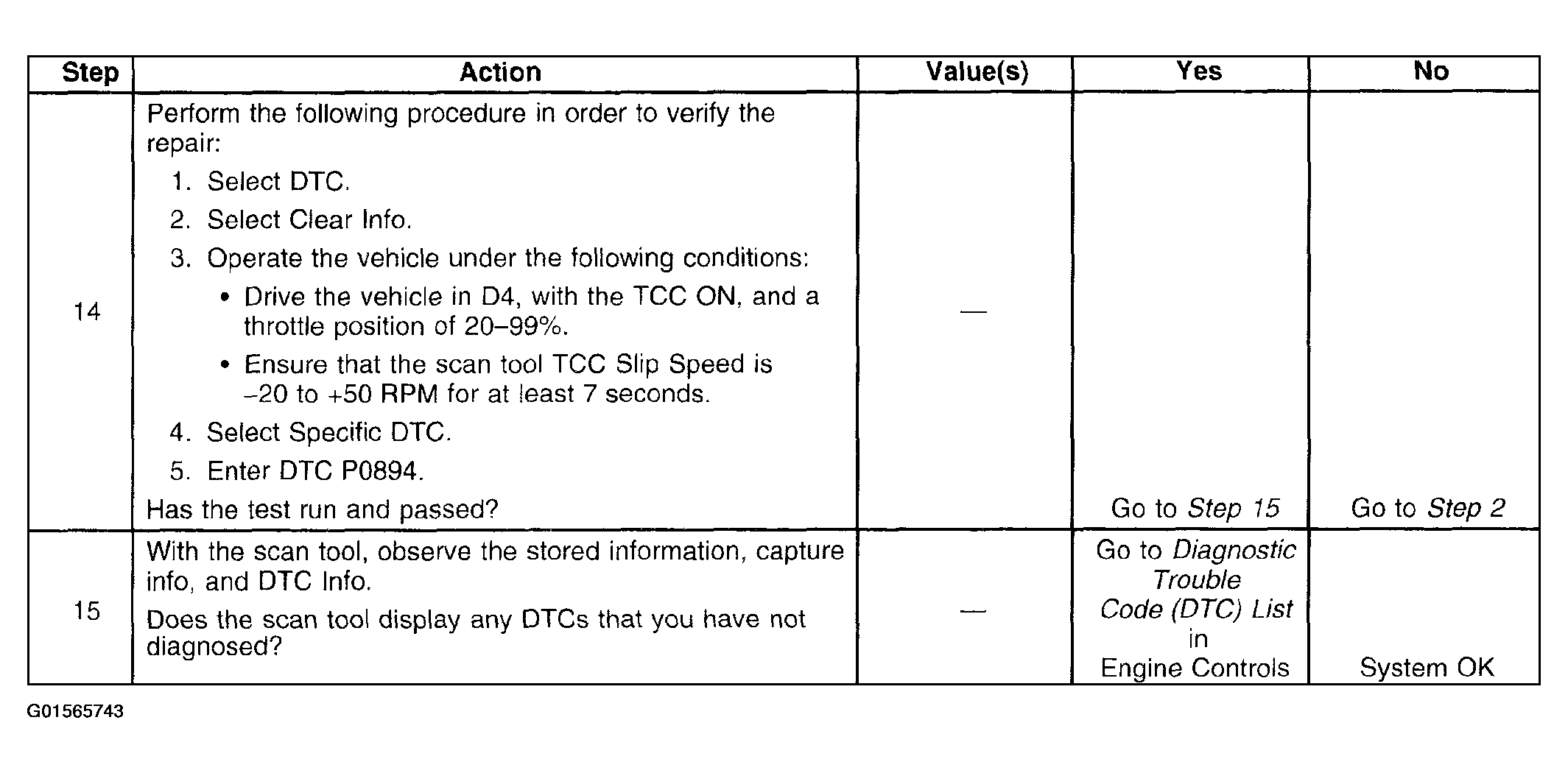

Fig 5: DTC P0894 Diagnosis (Steps 14-15)

Courtesy of GENERAL MOTORS CORP.
