Test Description

The number below refers to the step number on the diagnostic table.

  1. 2. This step tests that the PCM commanded all shifts, that all shift solenoid valves responded correctly, but that all the shifts did not occur.

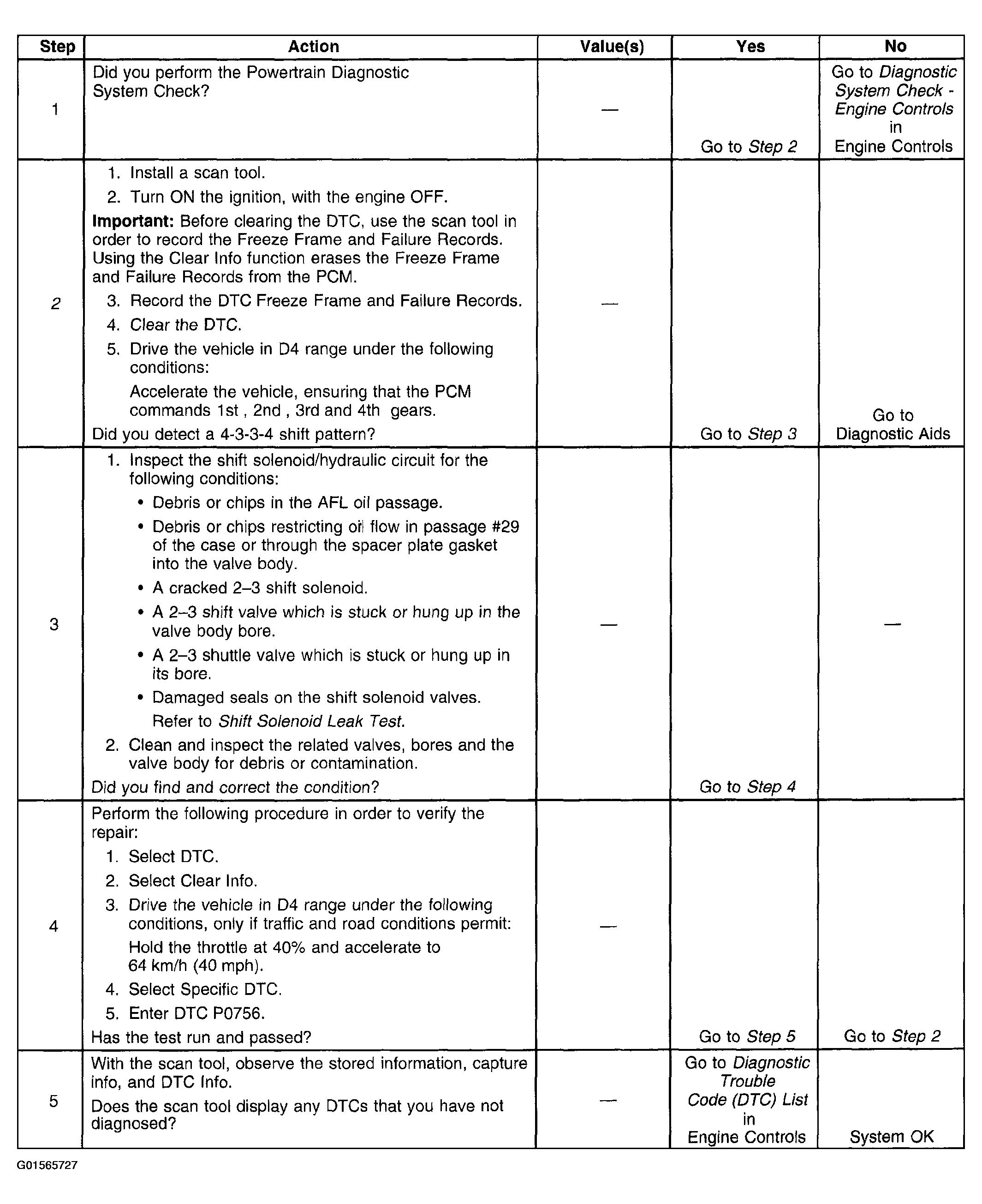

Fig 1: DTC P0756 Diagnosis
G01565727Courtesy of GENERAL MOTORS CORP.
