DTC P0748: PC Solenoid Valve Duty Cycle Has Reached Its High Limit: Notes

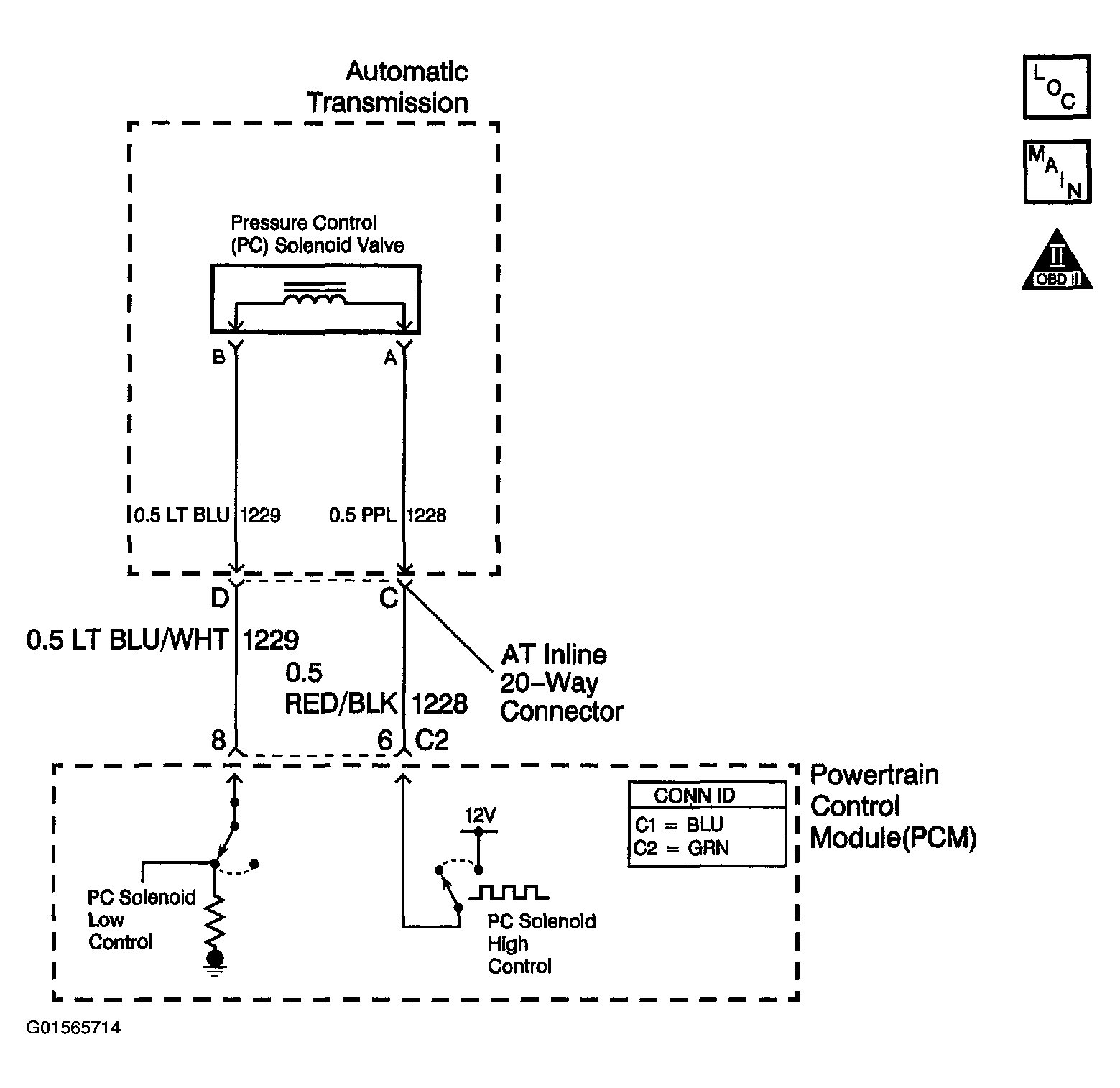

Fig 1: DTC P0748 Circuit Diagram

G01565714

Courtesy of GENERAL MOTORS CORP.
