Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step inspects for excessive TCC slip when the TCC is commanded ON.
  2. 3. This step inspects for possible causes of no TCC apply.

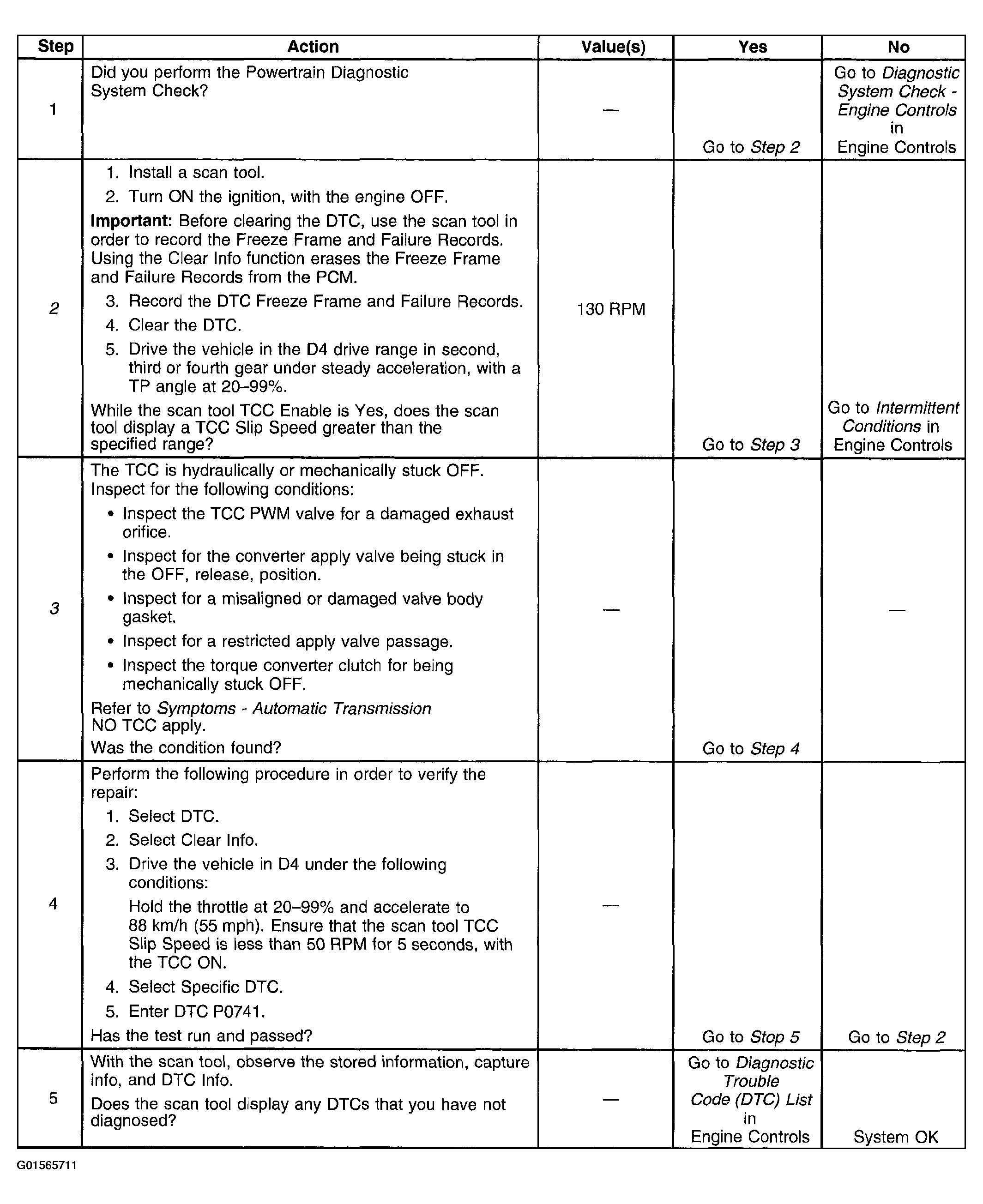

Fig 1: DTC P0741 Diagnosis
G01565711Courtesy of GENERAL MOTORS CORP.
