Home >> GMC >> 2003 >> Safari Van Cargo, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - 4L60-E/4L65-E (Service & Replacement) >> Diagnostic Information and Procedures >> DTC P0741: High TCC Slip Speed >> Notes

DTC P0741: High TCC Slip Speed: Notes

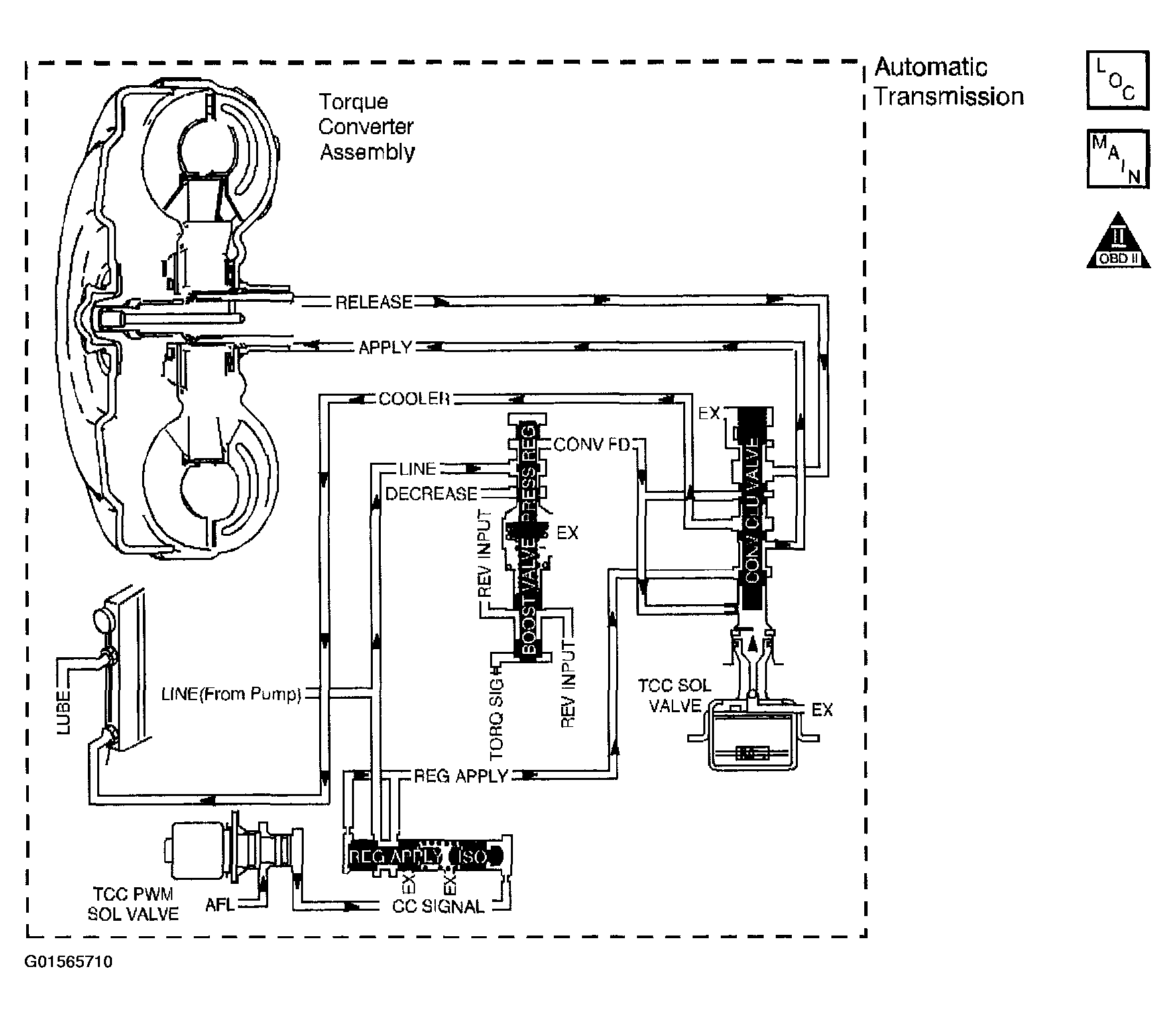

Fig 1: DTC P0741 Circuit Diagram

G01565710

Courtesy of GENERAL MOTORS CORP.
