Test Description

The number below refers to the step number on the diagnostic table.

  1. 2. This step isolates the brake switch as a source for setting the DTC.

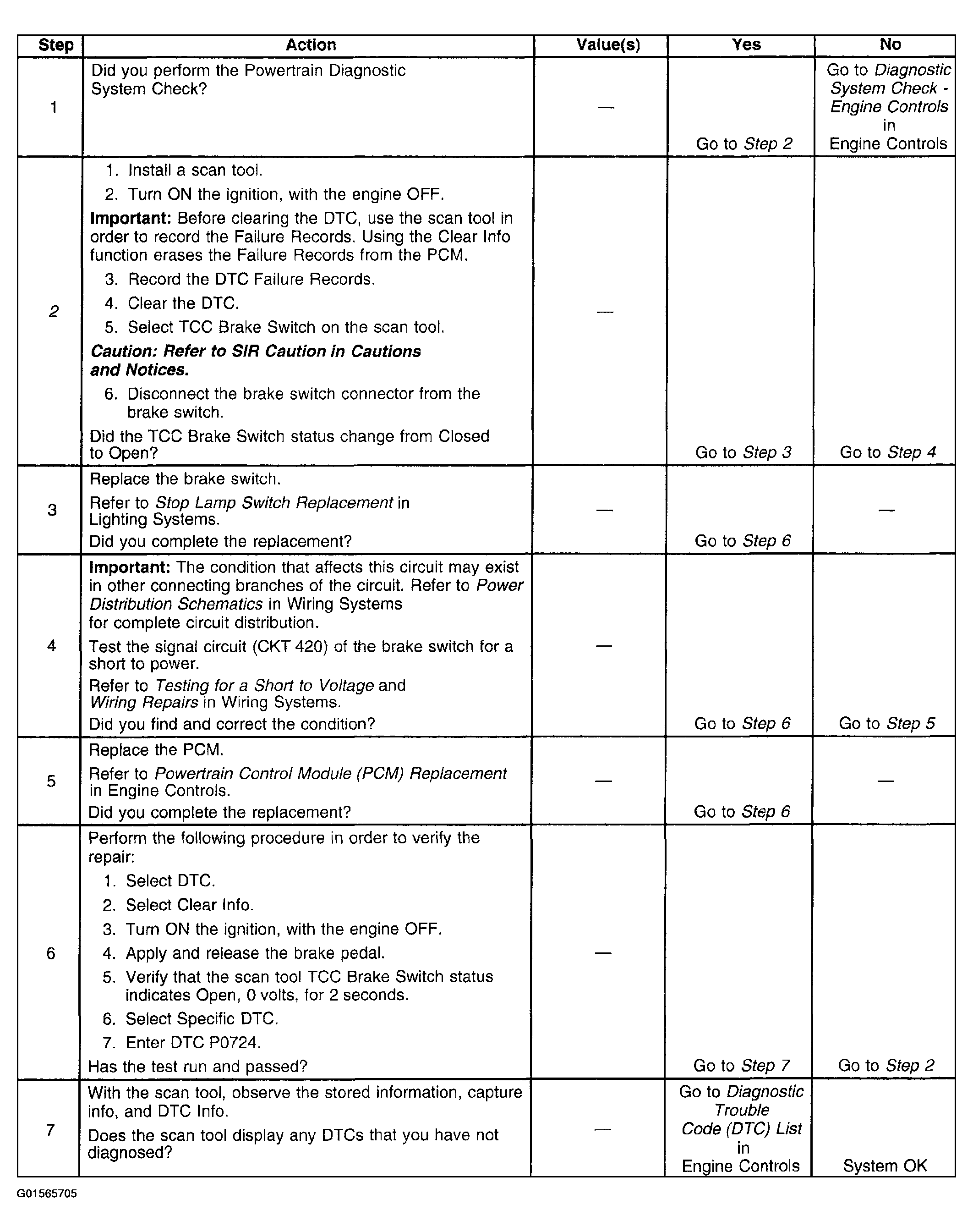

Fig 1: DTC P0724 Diagnosis
G01565705Courtesy of GENERAL MOTORS CORP.
