DTC P0724: Closed Brake Switch Circuit, 12 Volts, High Input, During Decelerations: Notes

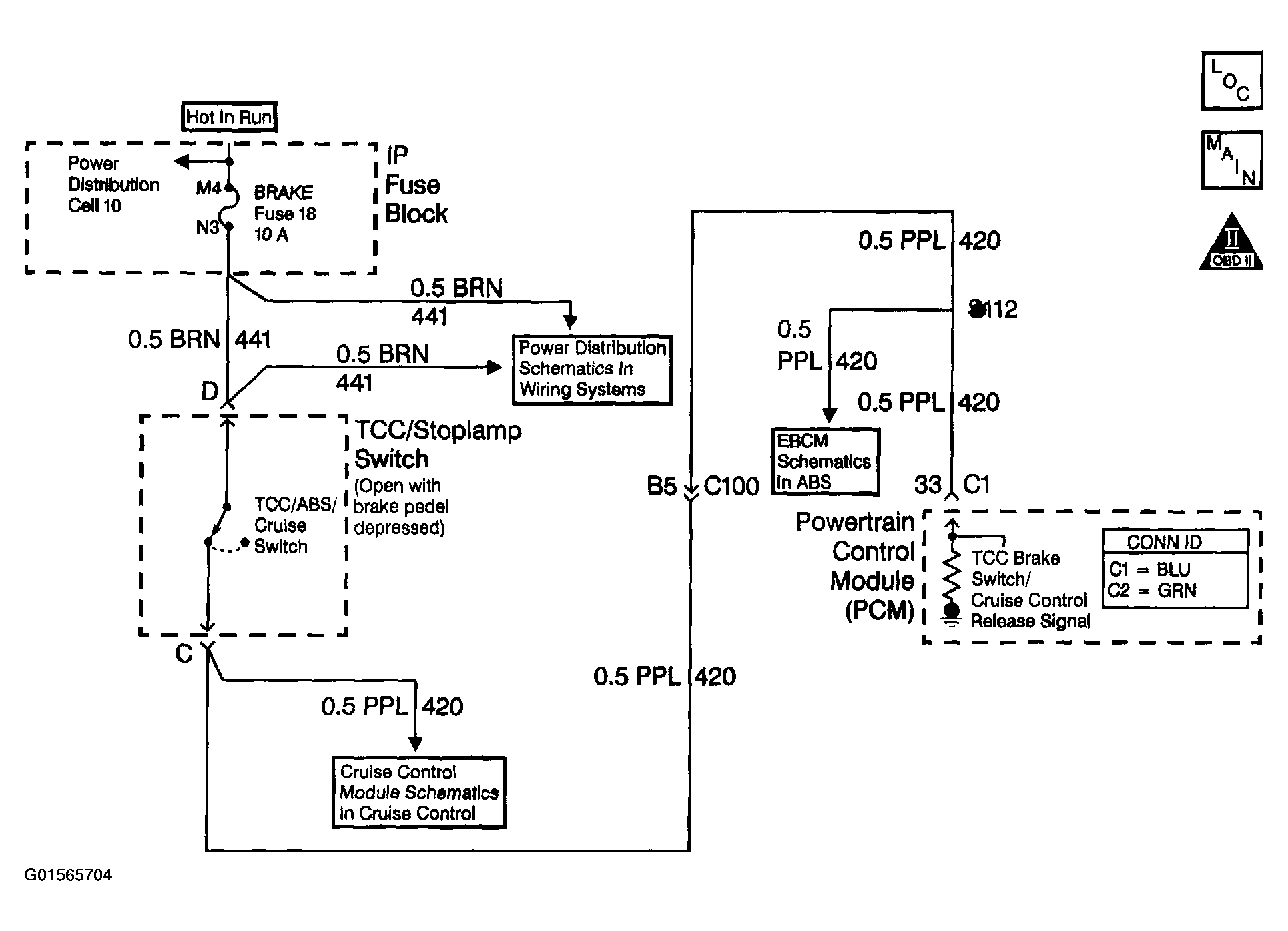

Fig 1: DTC P0724 Circuit Diagram

G01565704

Courtesy of GENERAL MOTORS CORP.
