Test Description

The number below refers to the step number on the diagnostic table.

  1. 3. This step isolates the brake switch as a source for setting the DTC.

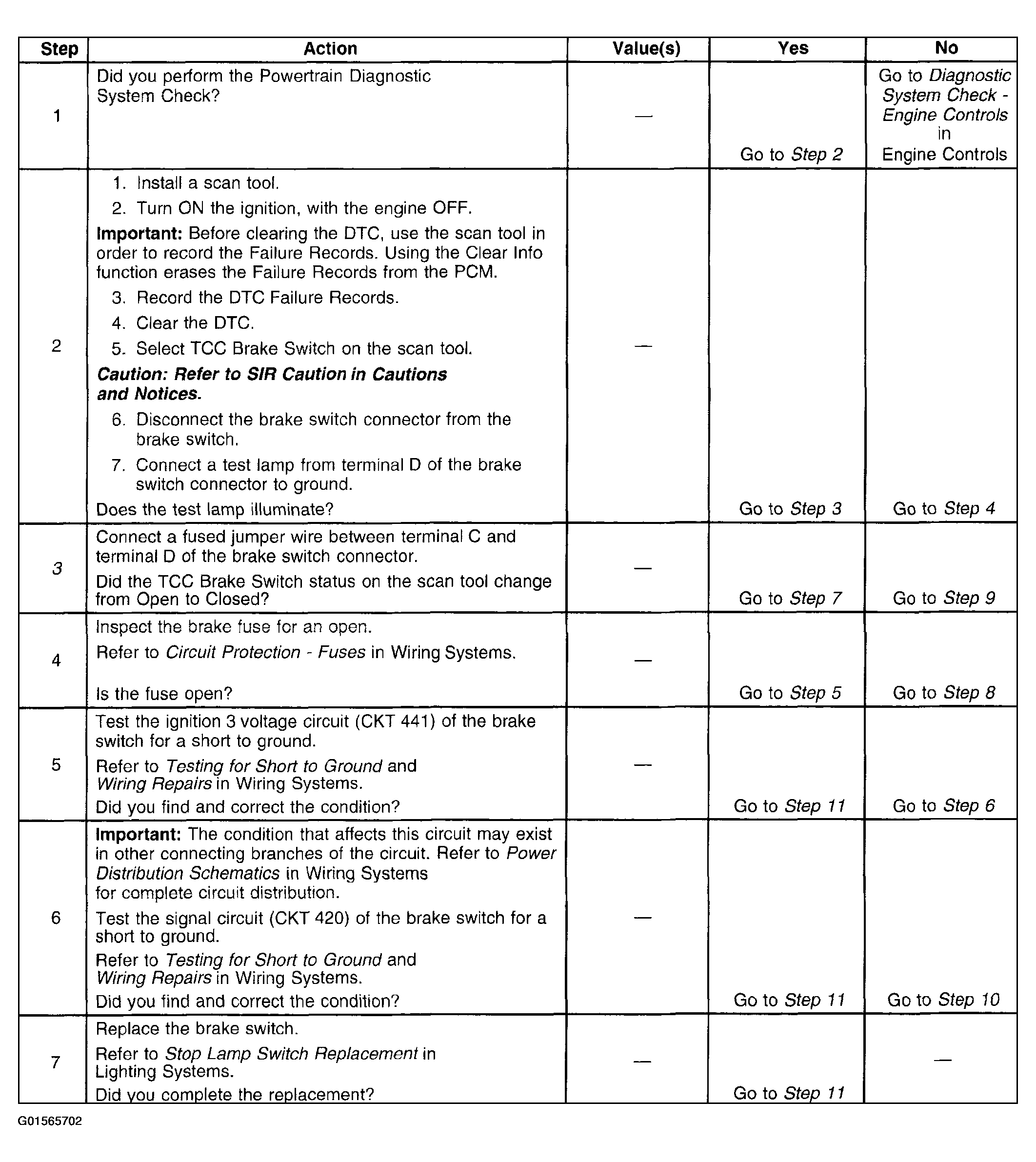

Fig 1: DTC P0719 Diagnosis (Steps 1-7)
G01565702Courtesy of GENERAL MOTORS CORP.

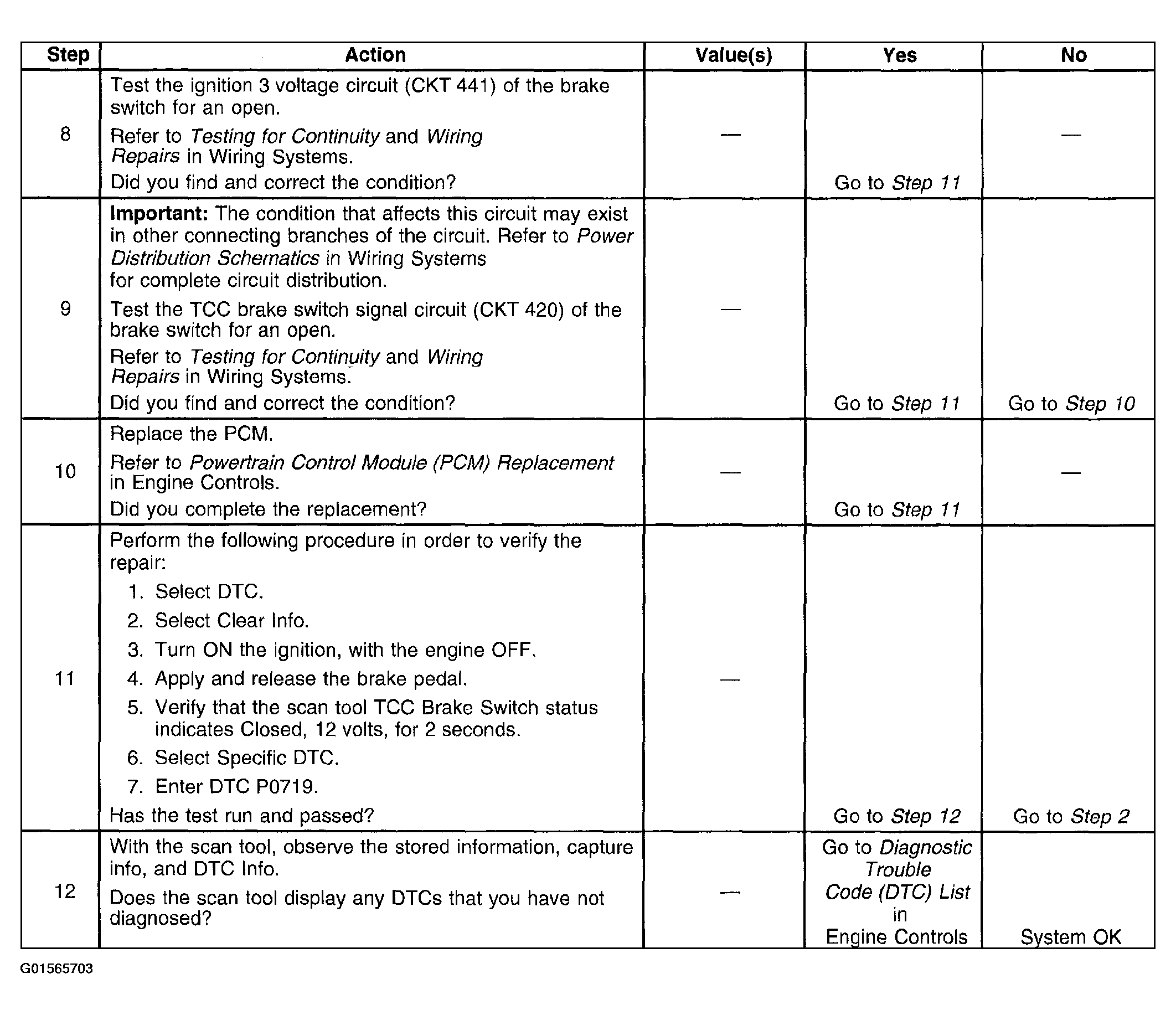

Fig 2: DTC P0719 Diagnosis (Steps 8-12)
G01565703Courtesy of GENERAL MOTORS CORP.
