DTC P0719: Open Brake Switch Circuit, 0 Volts, Low Input, During Accelerations: Notes

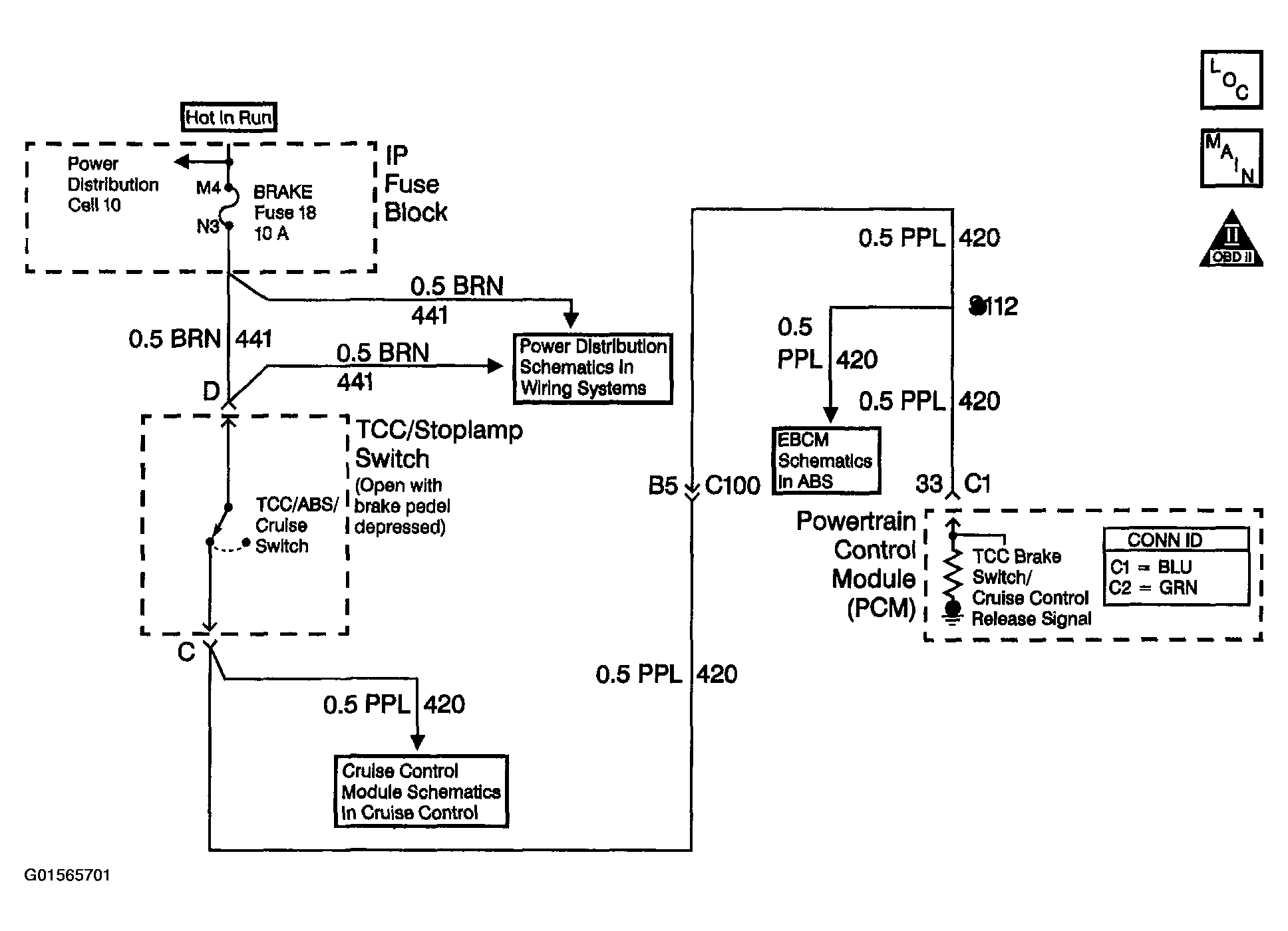

Fig 1: DTC P0719 Circuit Diagram

G01565701

Courtesy of GENERAL MOTORS CORP.
