DTC P0711: Transmission Temperature: Notes

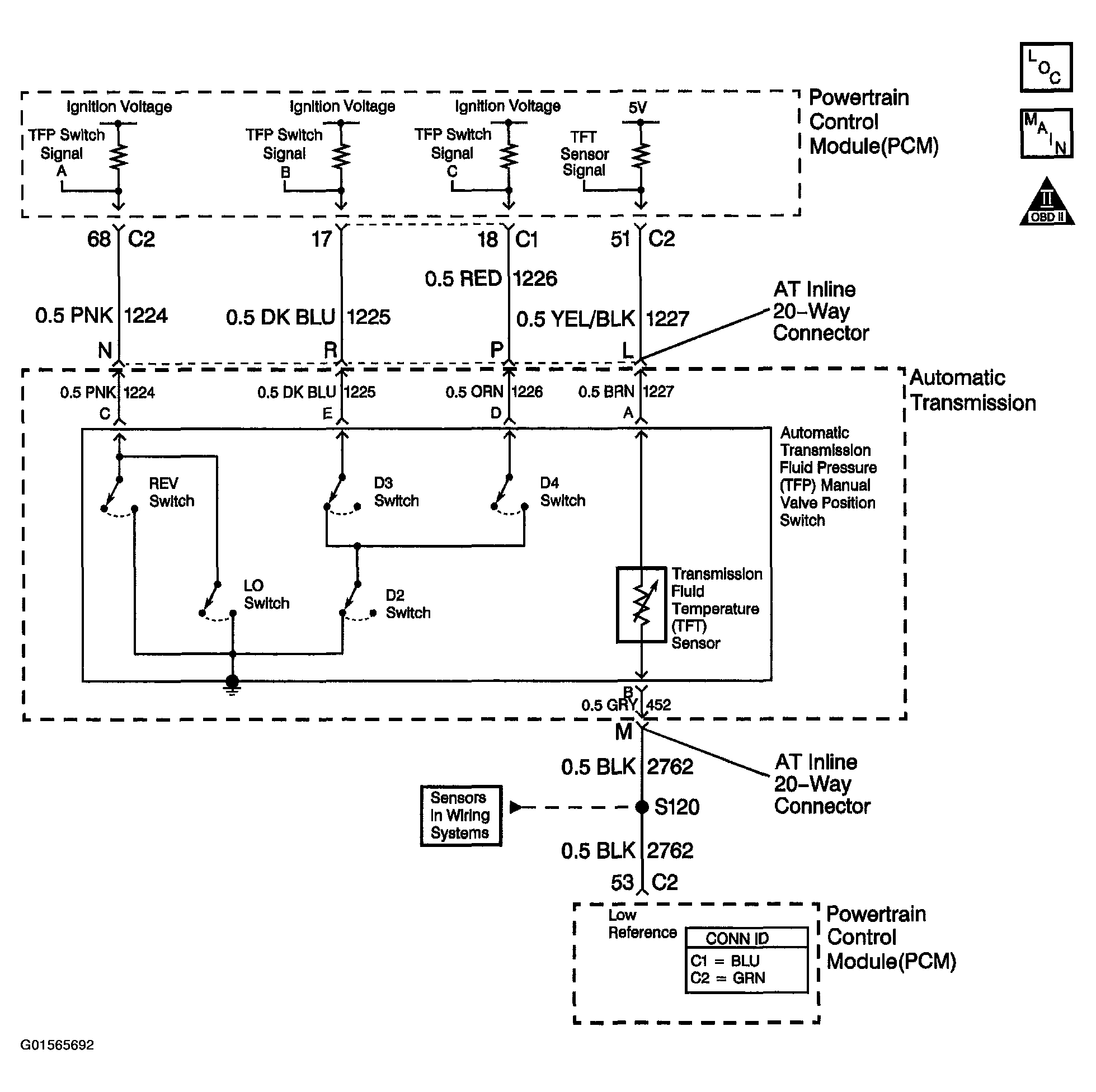

Fig 1: DTC P0711 Circuit Diagram

G01565692

Courtesy of GENERAL MOTORS CORP.
