Test Description

The number below refers to the step number on the diagnostic table.

This step checks for air flow restrictions or damage which may result in the transmission overheating.

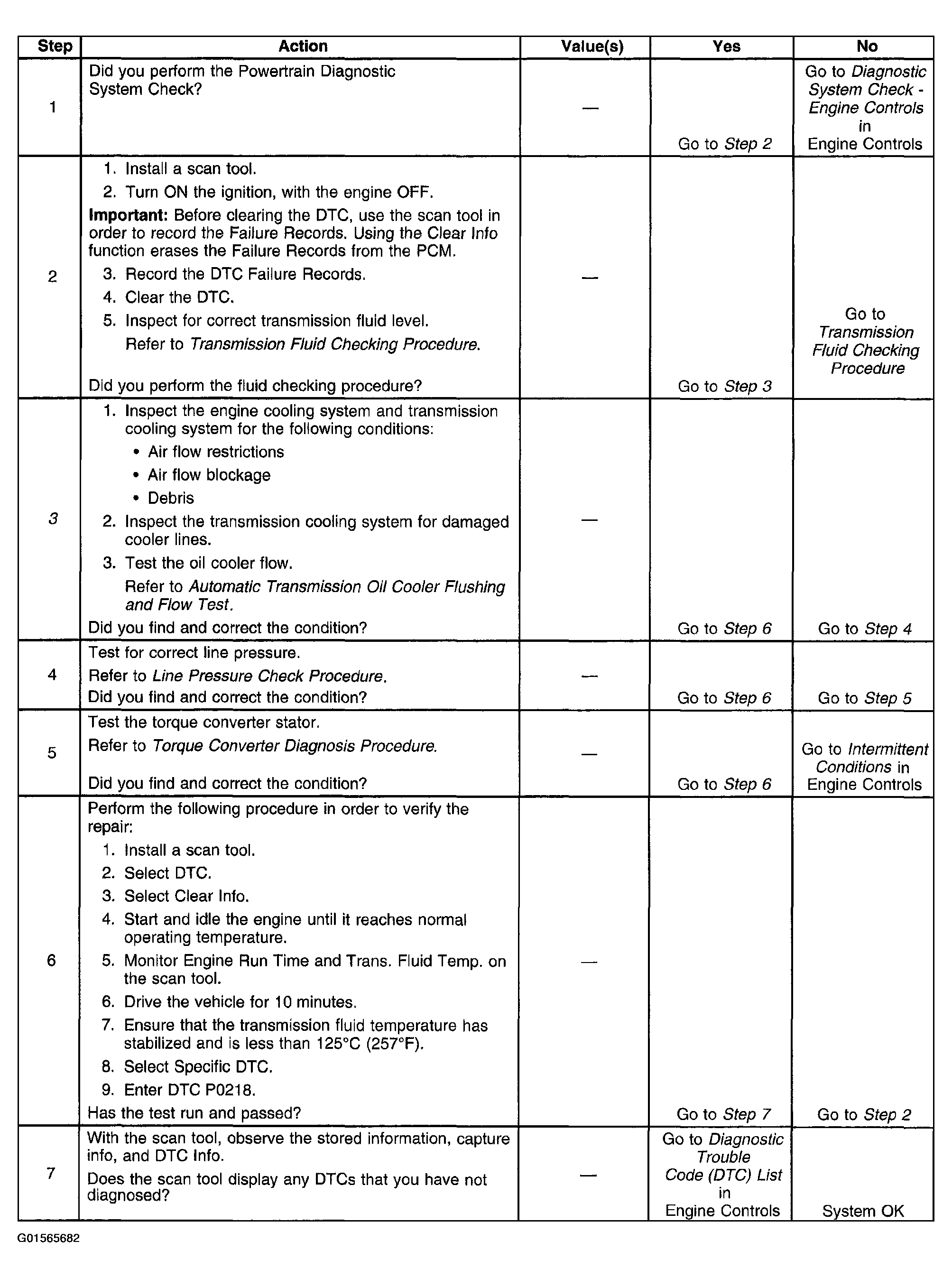

Fig 1: DTC P0218 Diagnosis
G01565682Courtesy of GENERAL MOTORS CORP.
