Transmission Identification Information

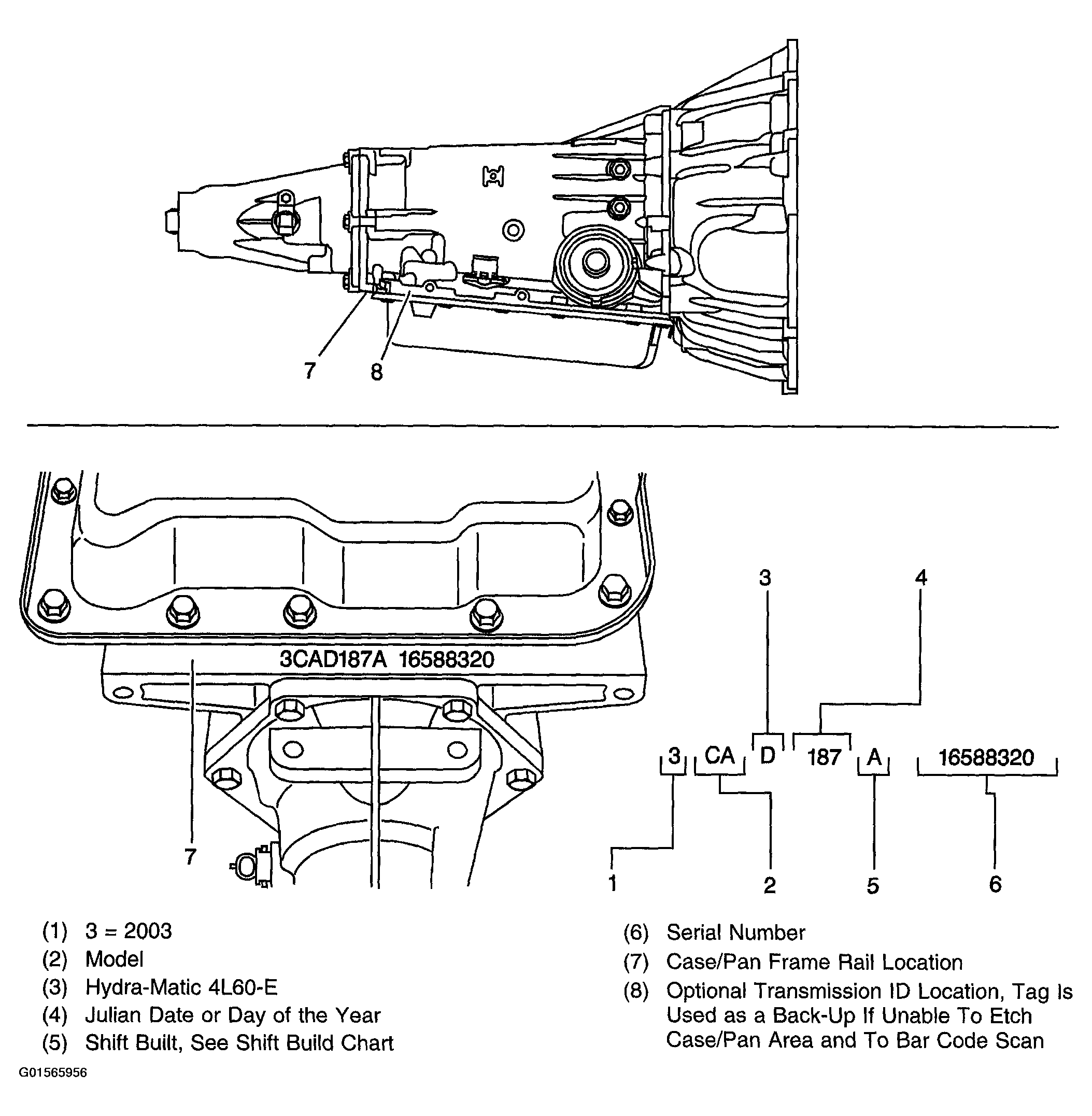

Fig 1: Toledo Or Romulus Build Transmission

Courtesy of GENERAL MOTORS CORP.

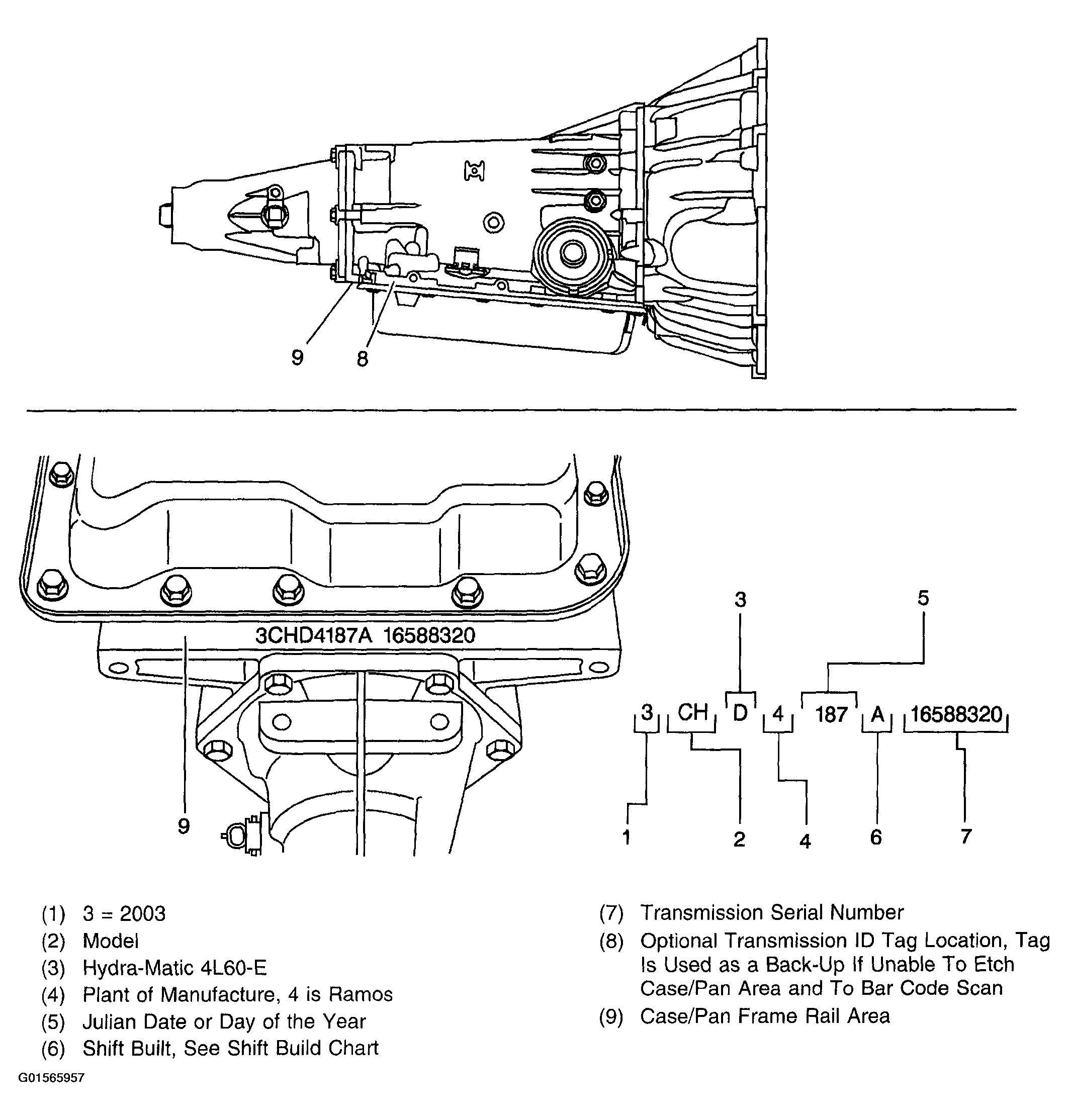

Fig 2: Ramos Arizpe, Mexico Build Transmission

Courtesy of GENERAL MOTORS CORP.

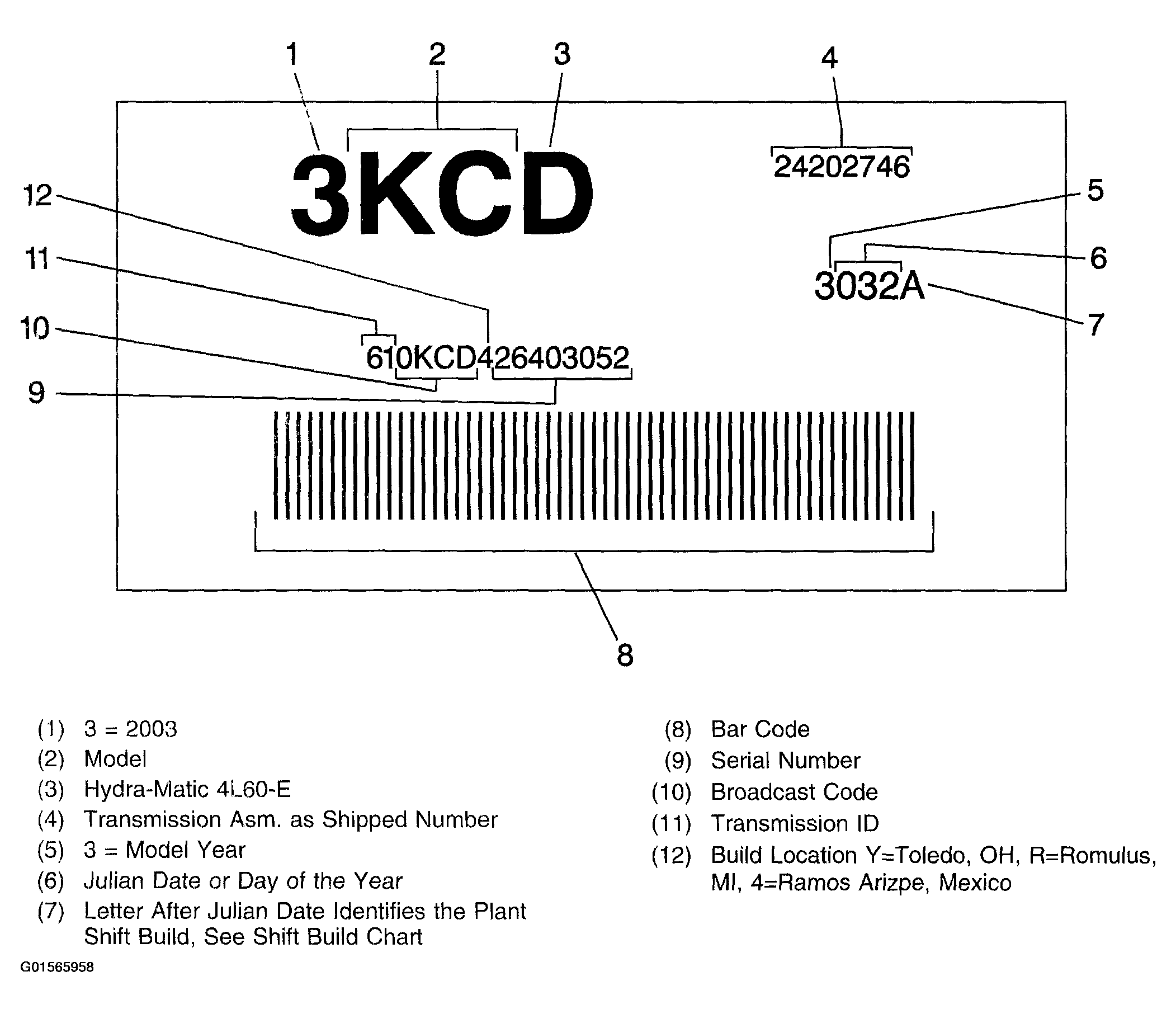

Fig 3: Transmission Bar Code Label Contents

Courtesy of GENERAL MOTORS CORP.

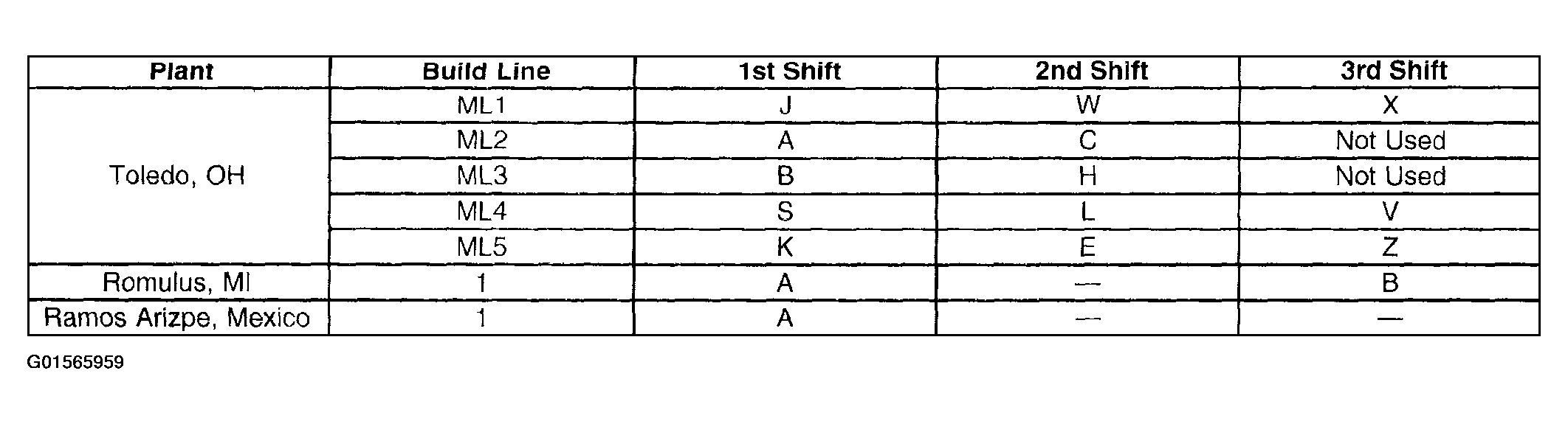

Fig 4: Plant Build Transmission Specification Table

Courtesy of GENERAL MOTORS CORP.
