Disassembled Views

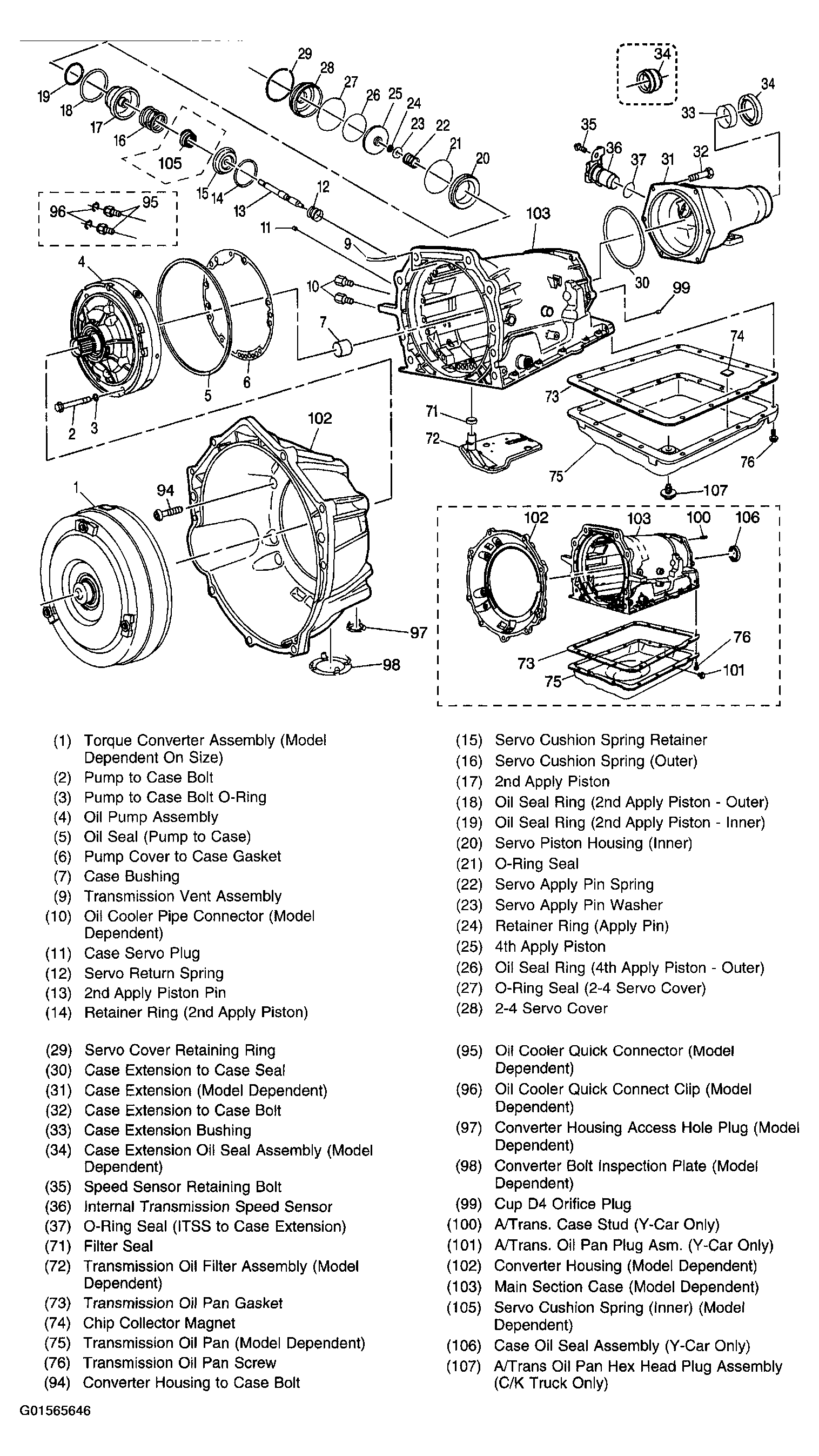

Fig 1: Transmission Case & Associated Parts (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

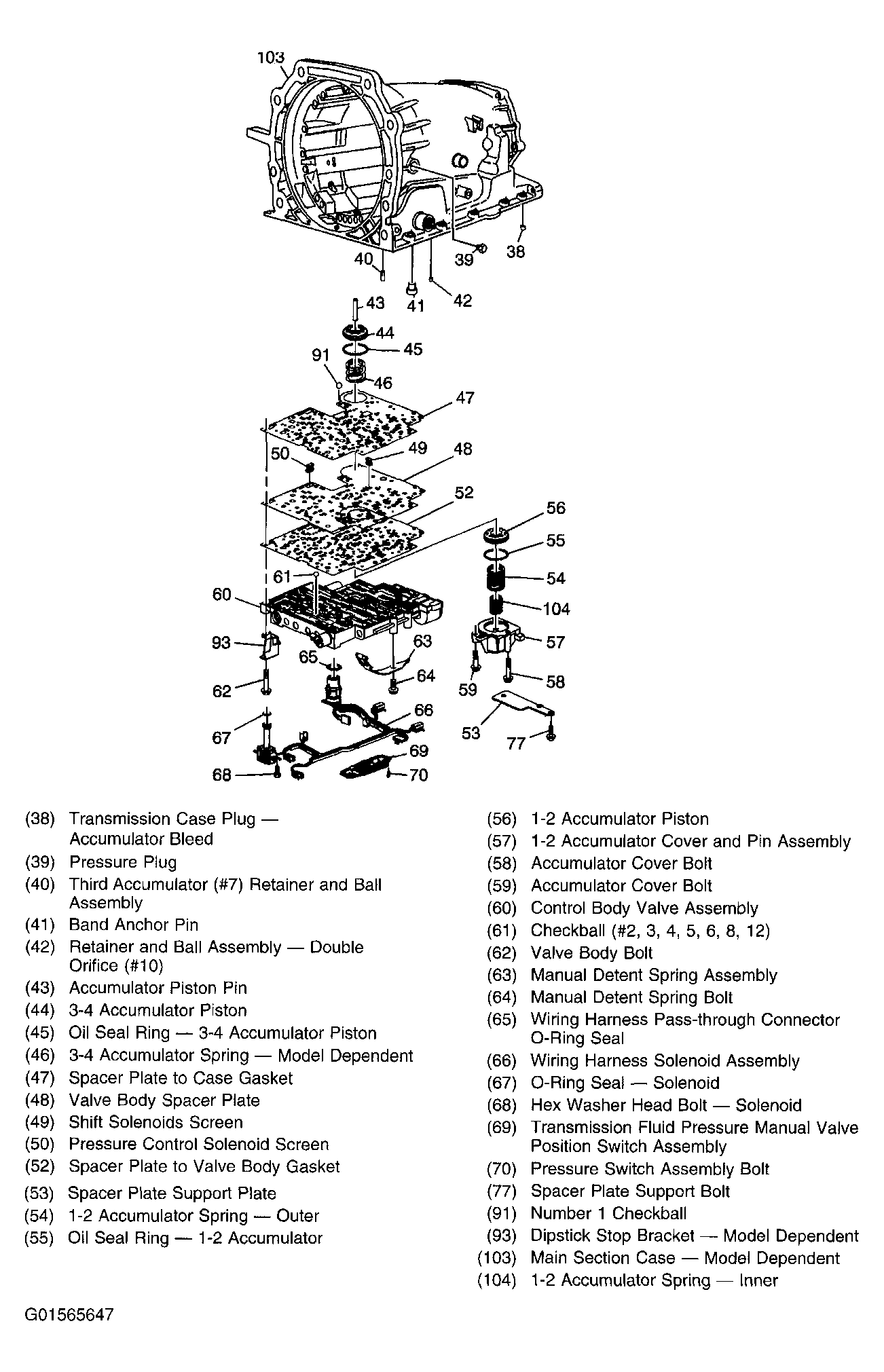

Fig 2: Transmission Case & Associated Parts (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

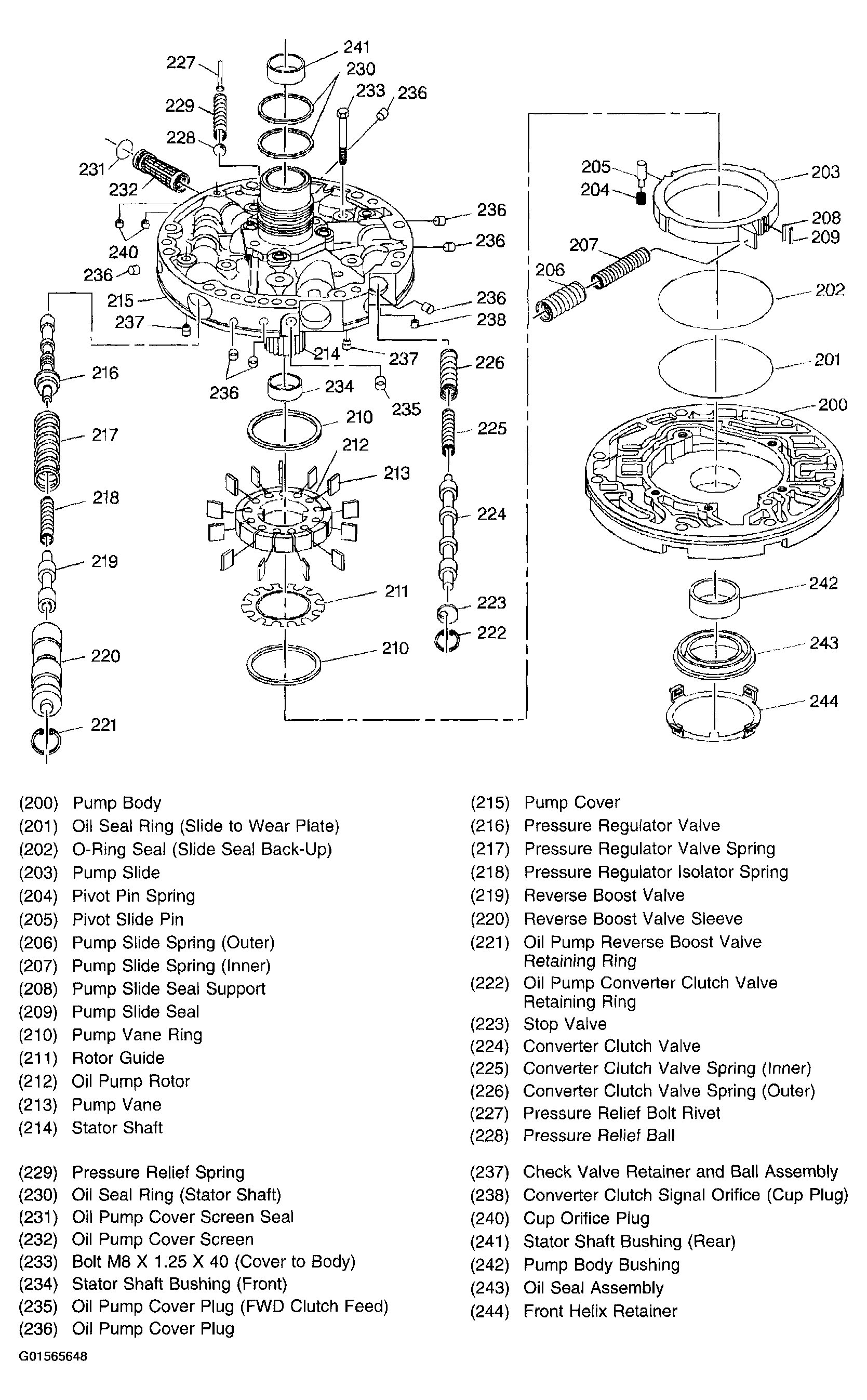

Fig 3: Oil Pump Assembly

Courtesy of GENERAL MOTORS CORP.

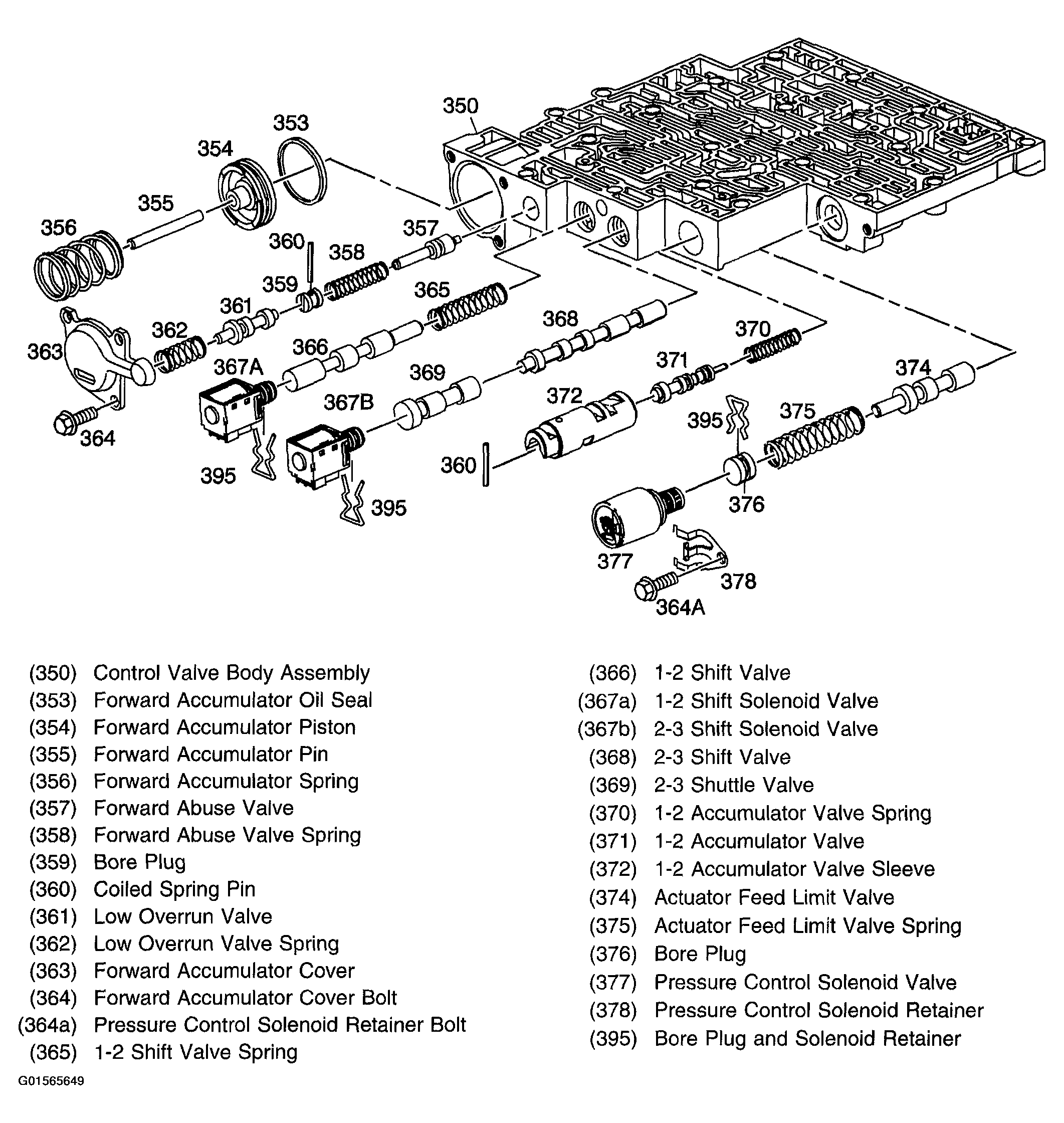

Fig 4: Control Valve Body Assembly (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

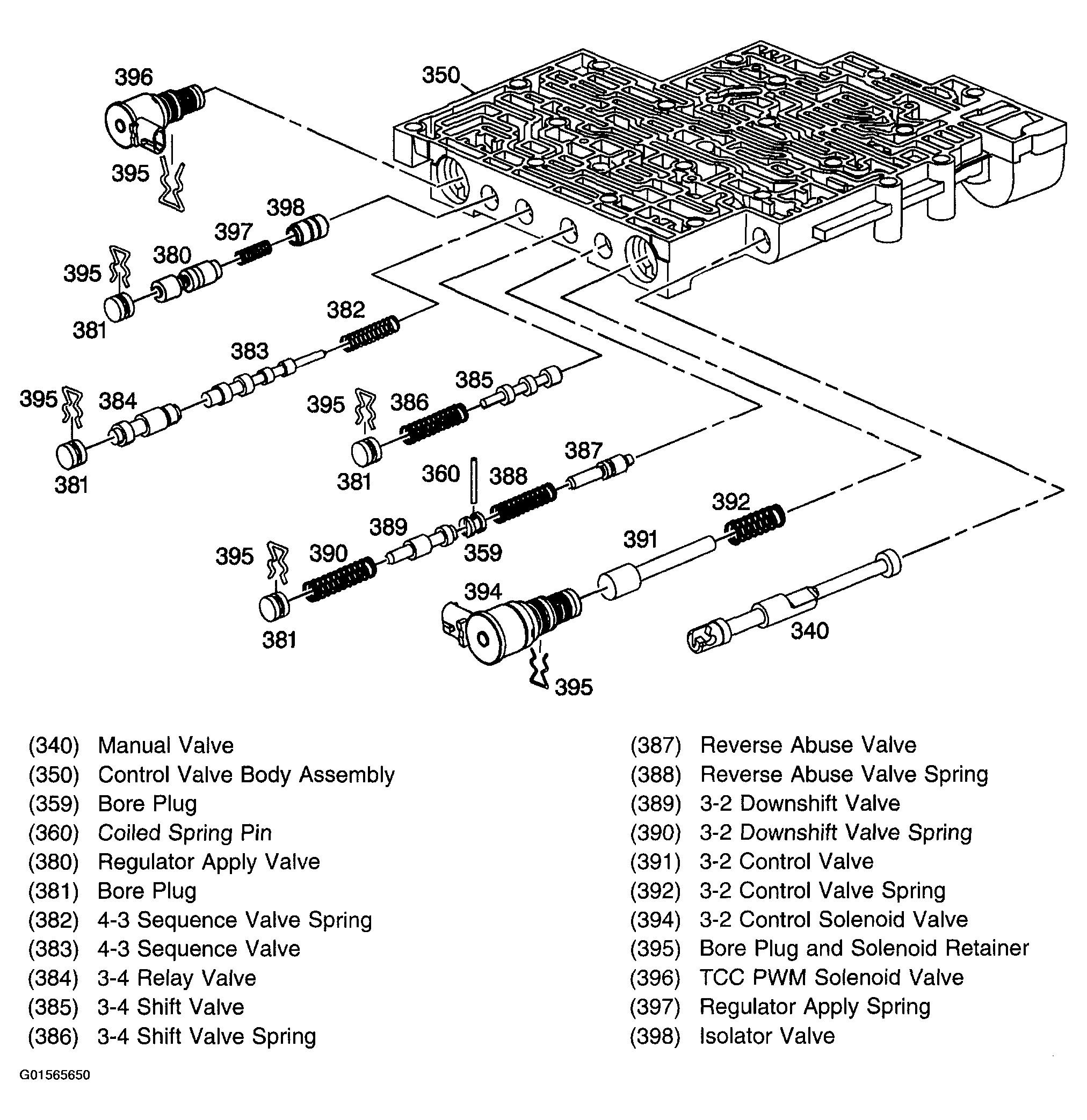

Fig 5: Control Valve Body Assembly (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

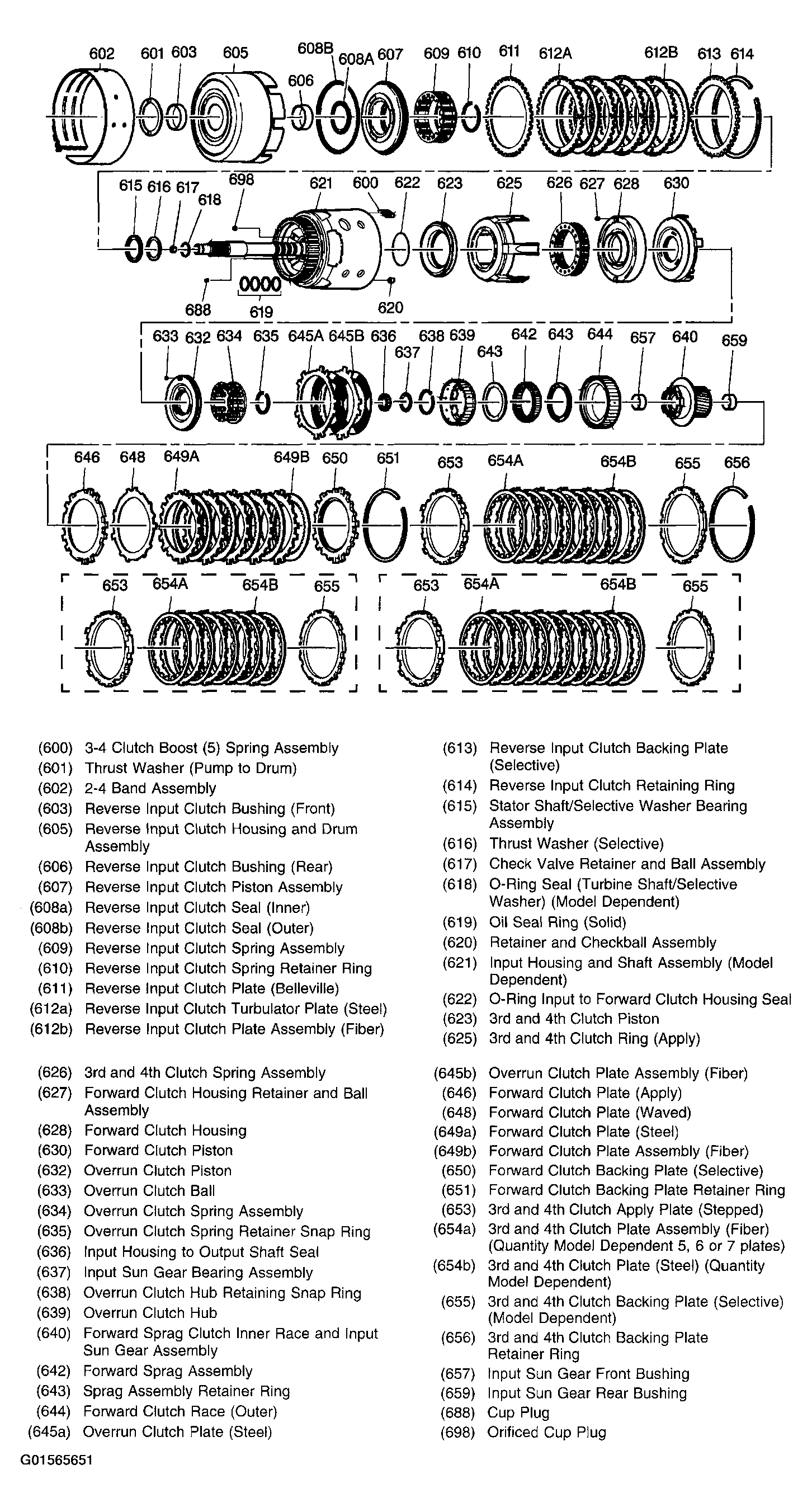

Fig 6: Internal Parts (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

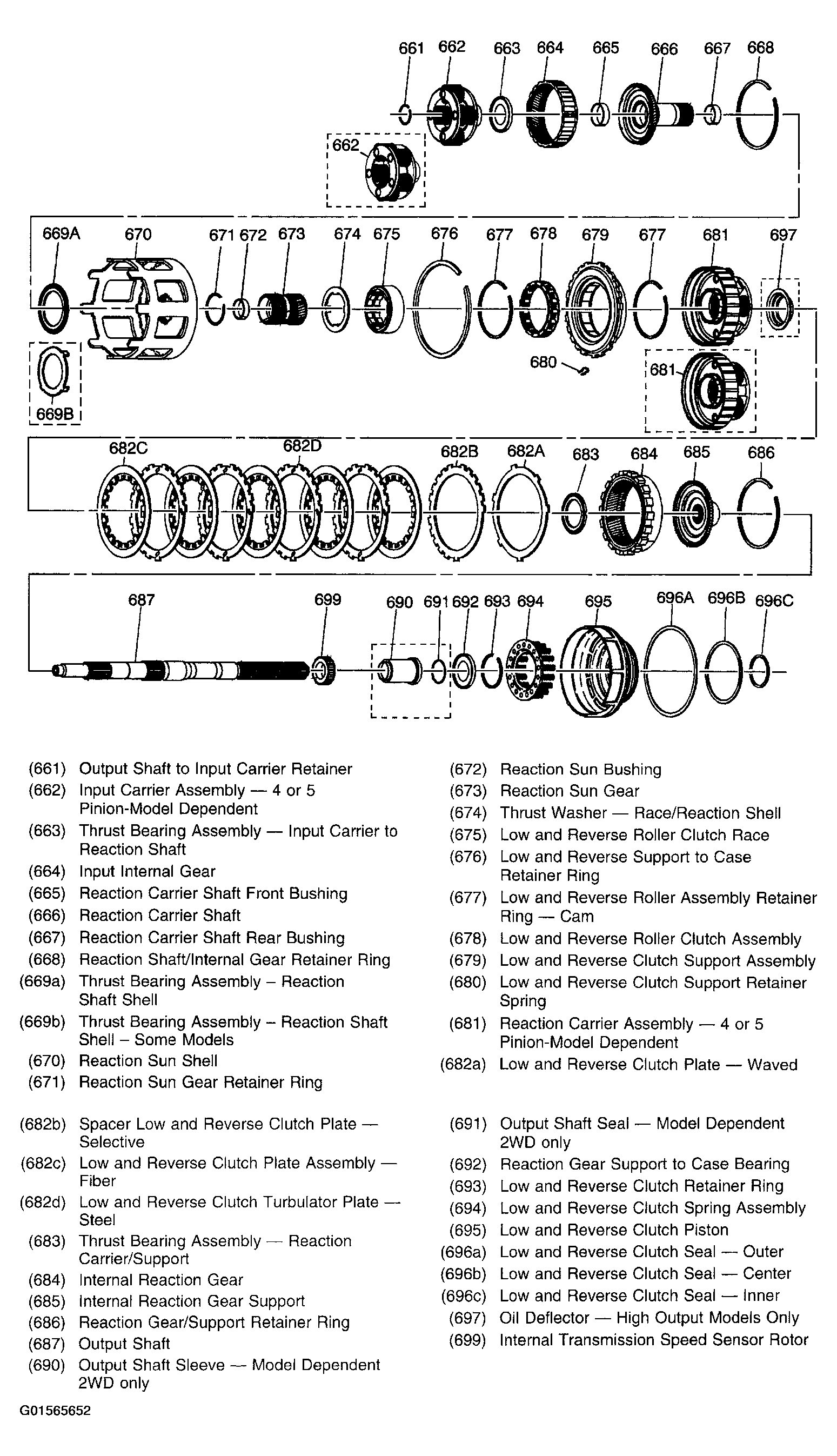

Fig 7: Internal Parts (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

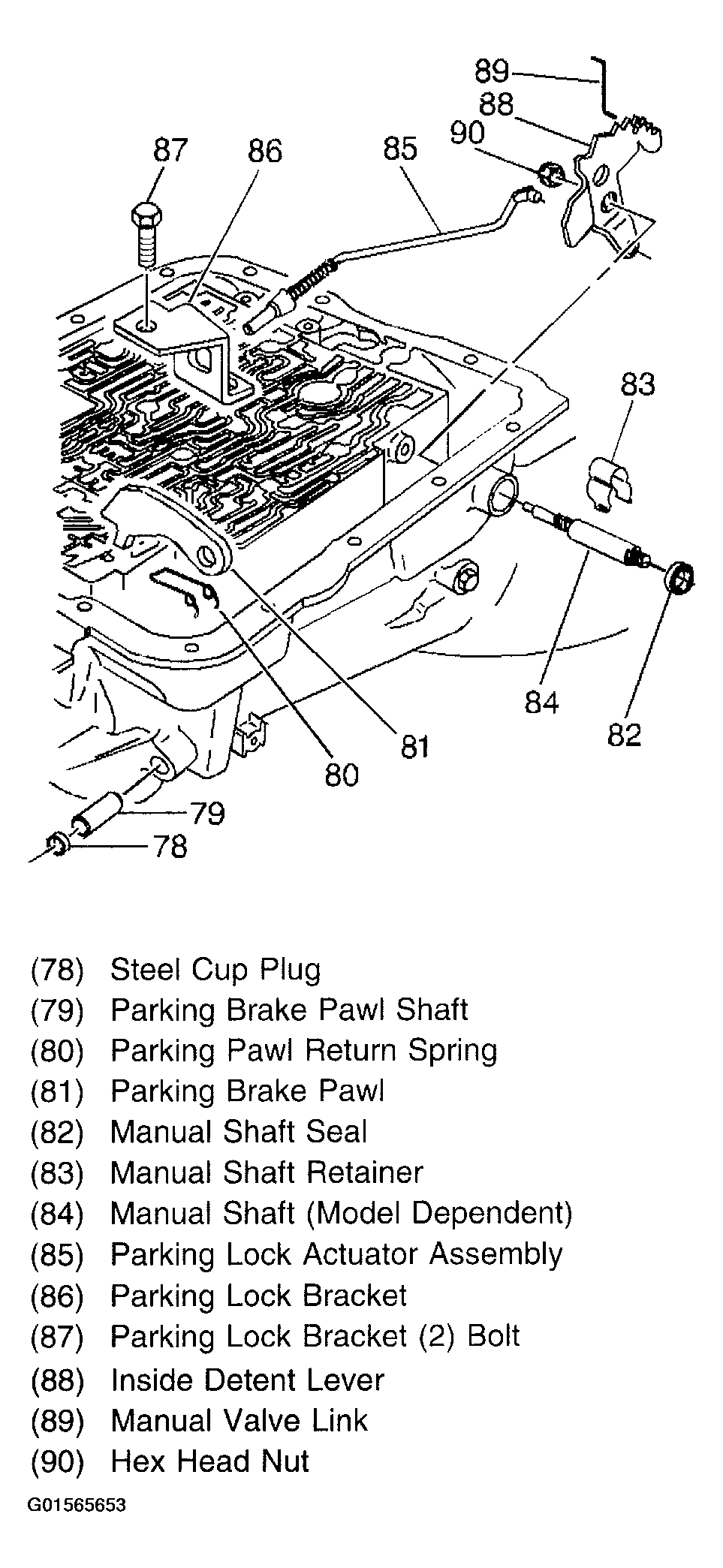

Fig 8: Parking Lock & Manual Shift Shaft Assembly

Courtesy of GENERAL MOTORS CORP.
