Component Location

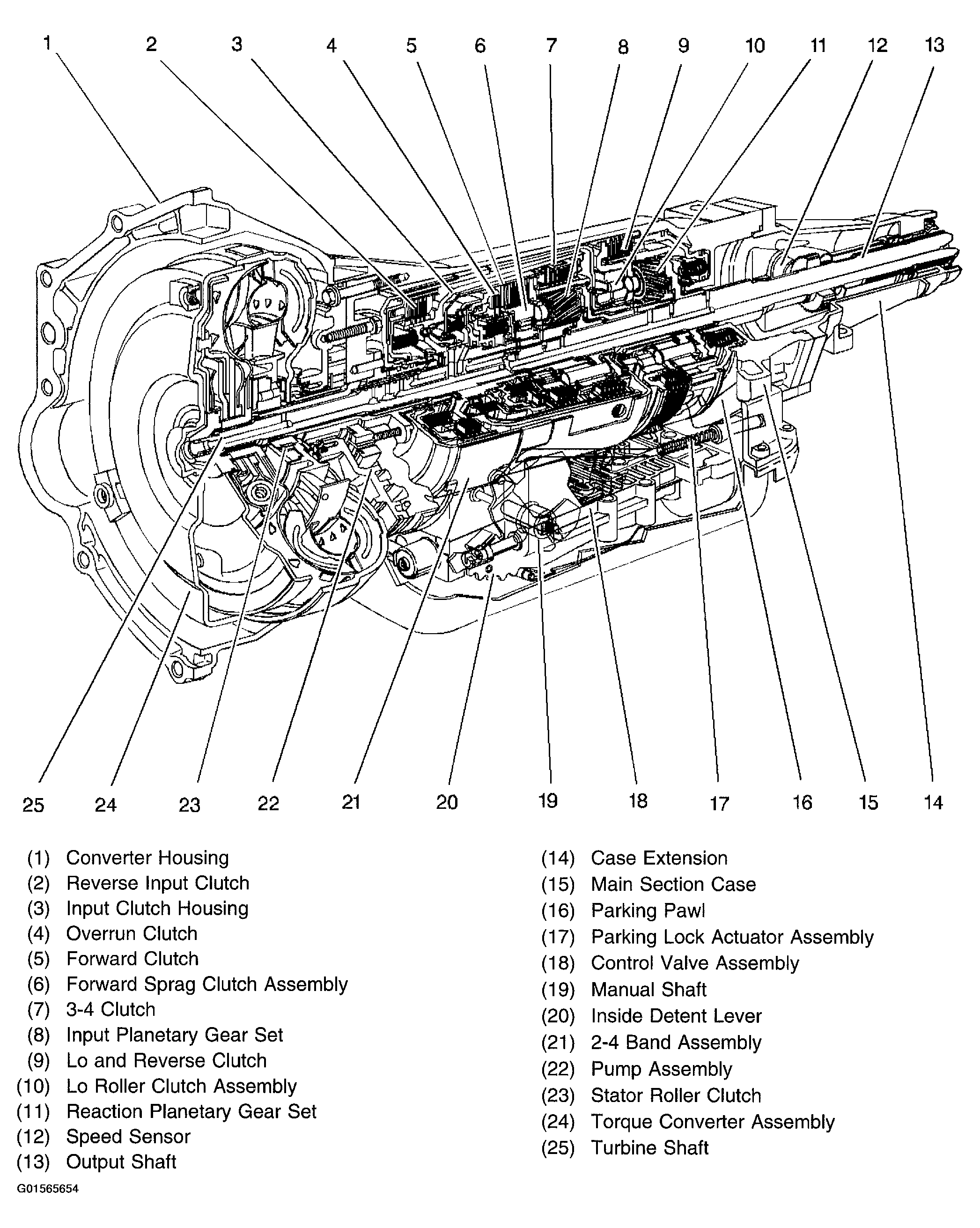

Fig 1: Automatic Transmission Components
G01565654Courtesy of GENERAL MOTORS CORP.

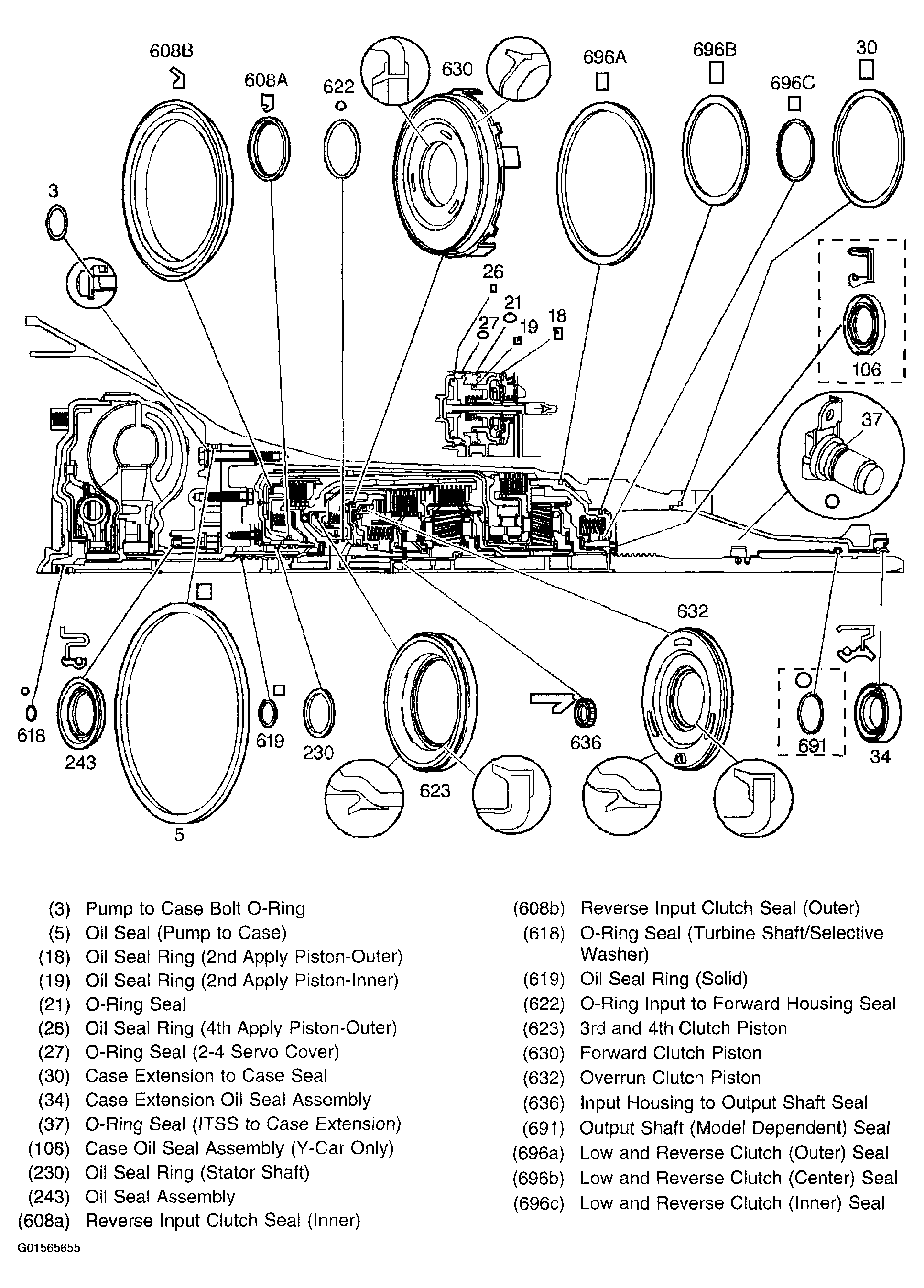

Fig 2: Seals
G01565655Courtesy of GENERAL MOTORS CORP.

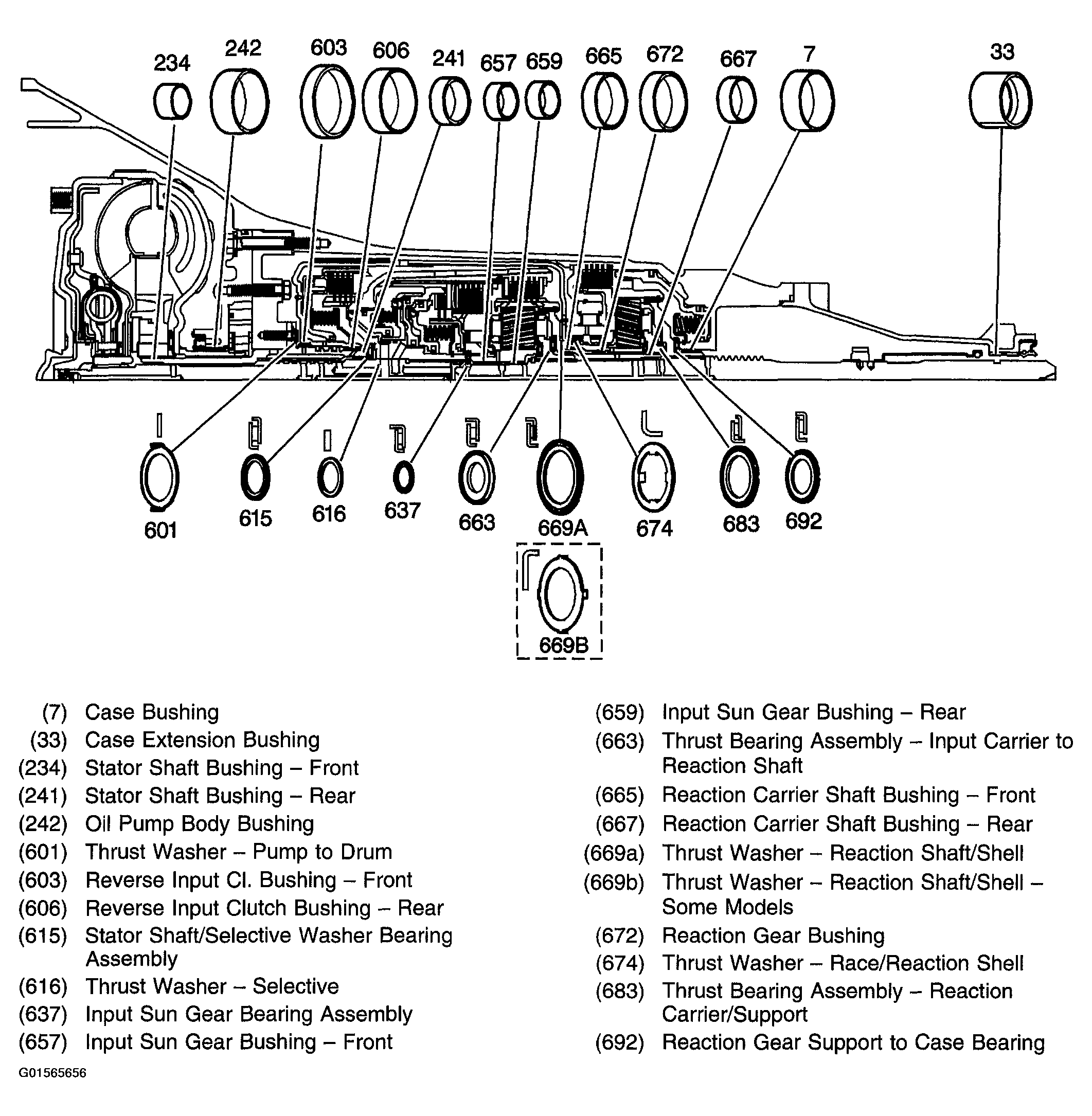

Fig 3: Bearings & Bushings
G01565656Courtesy of GENERAL MOTORS CORP.

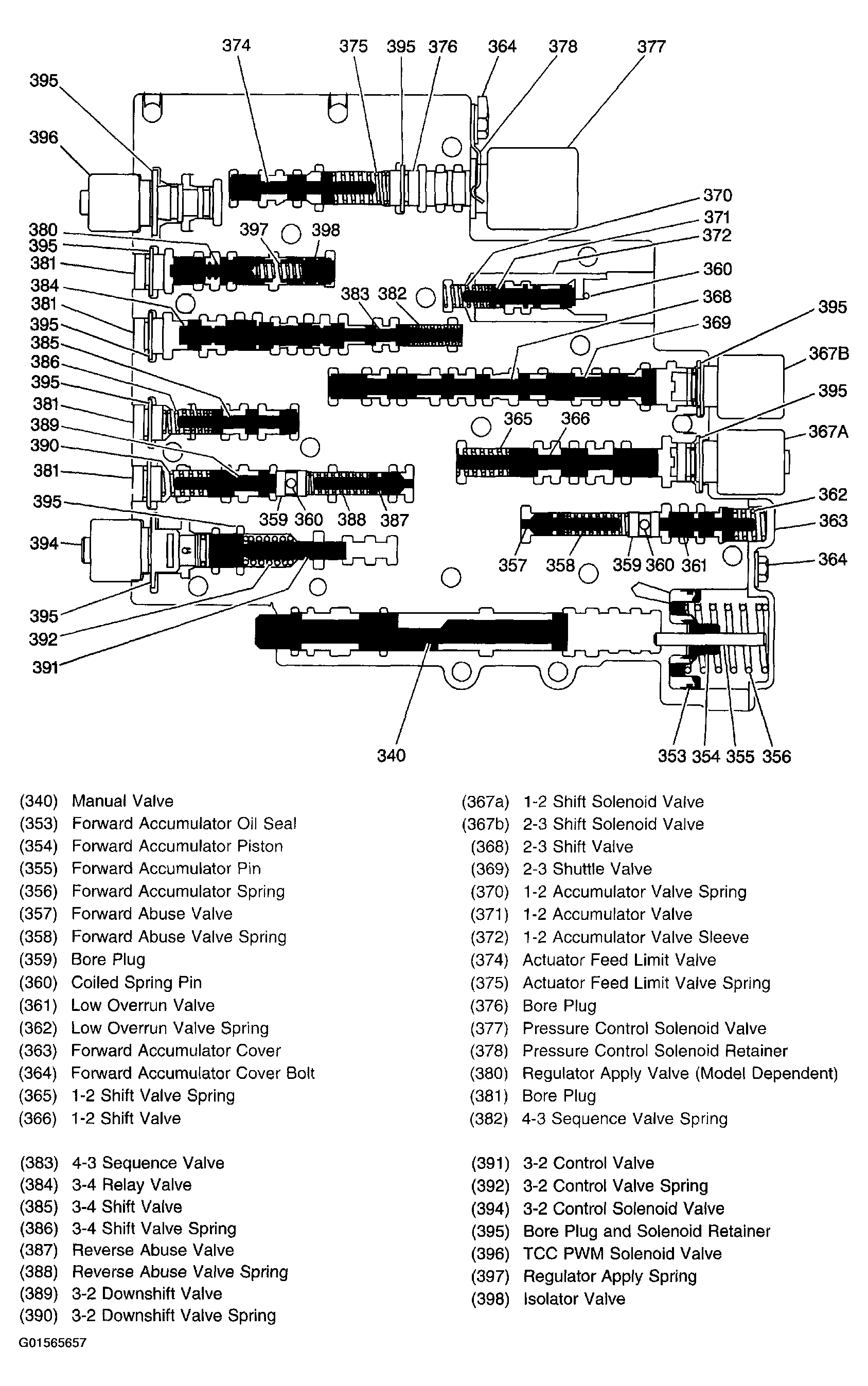

Fig 4: Valve Trains
G01565657Courtesy of GENERAL MOTORS CORP.
