Automatic Transmission Related Connector End Views

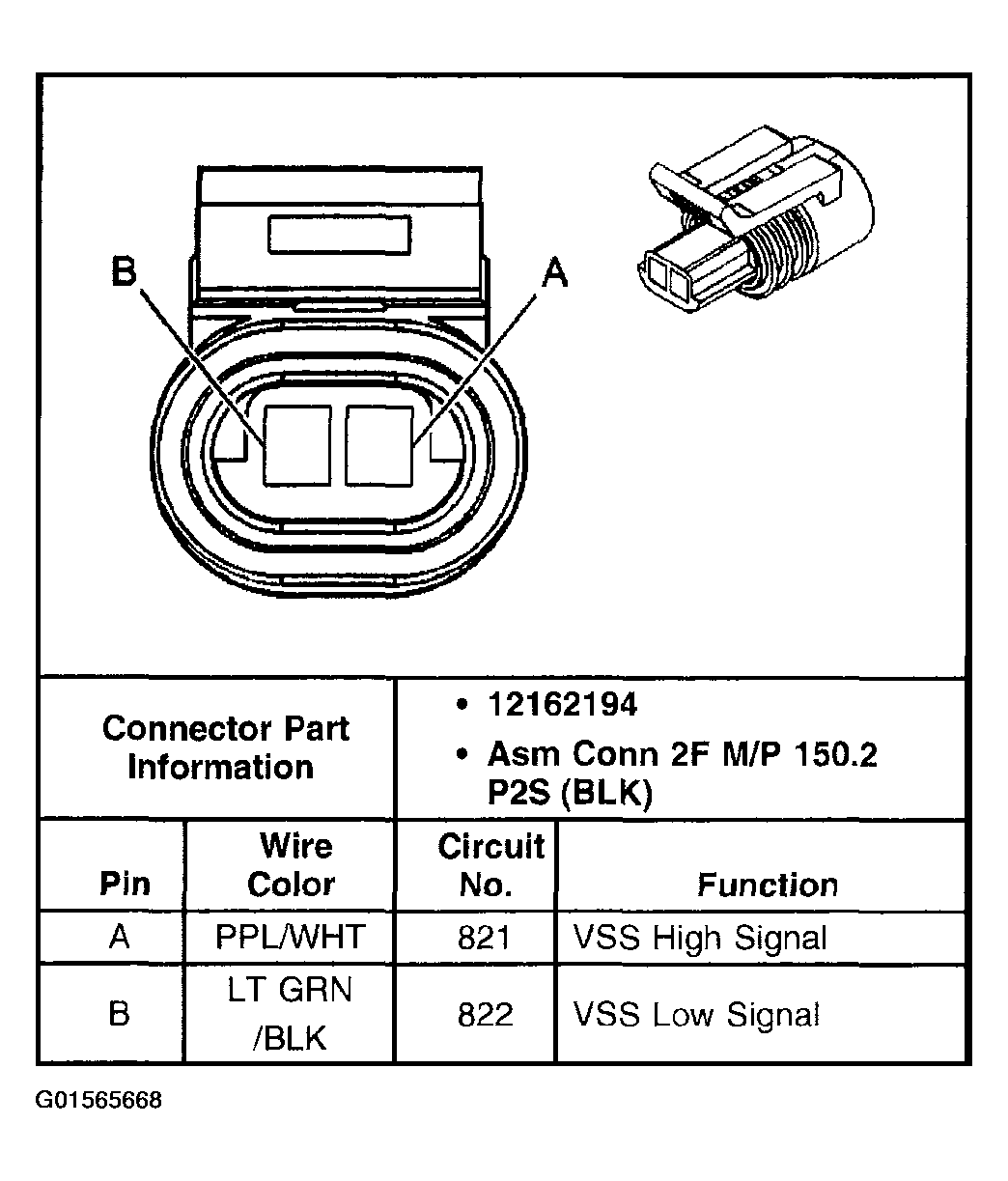

Fig 1: Vehicle Speed Sensor Assembly Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

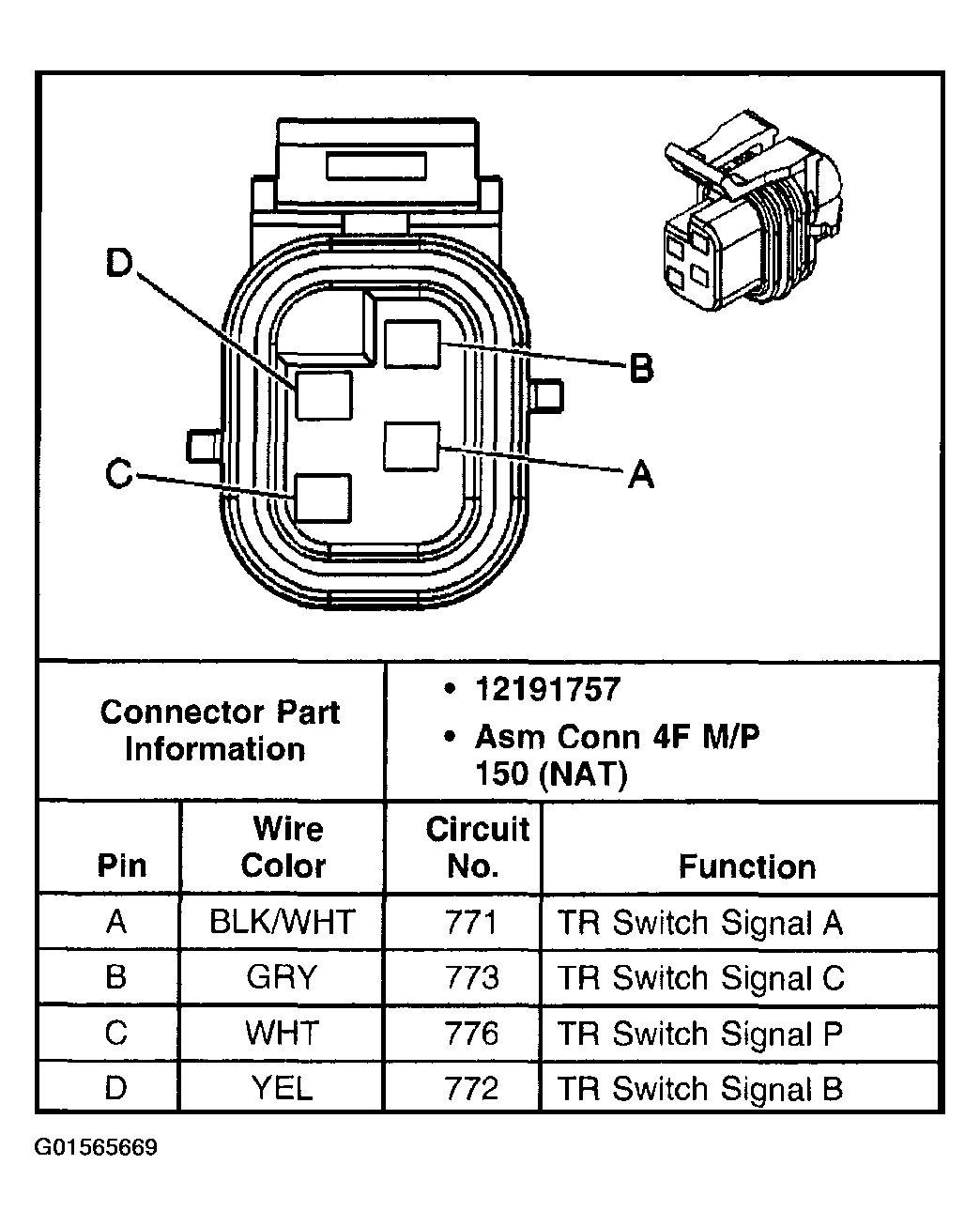

Fig 2: Transmission Range Switch Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

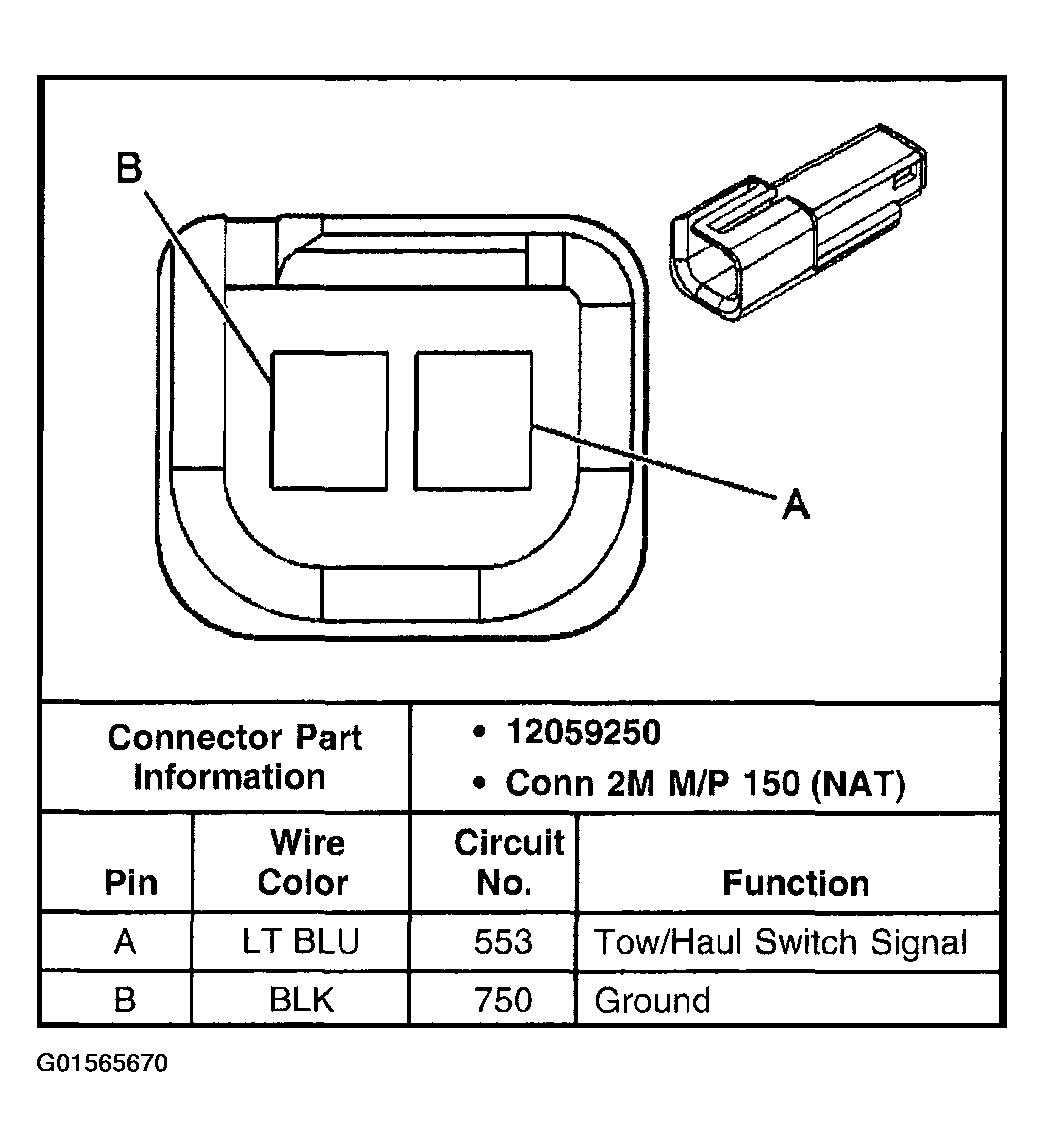

Fig 3: Tow/Haul Switch Connector, Column Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

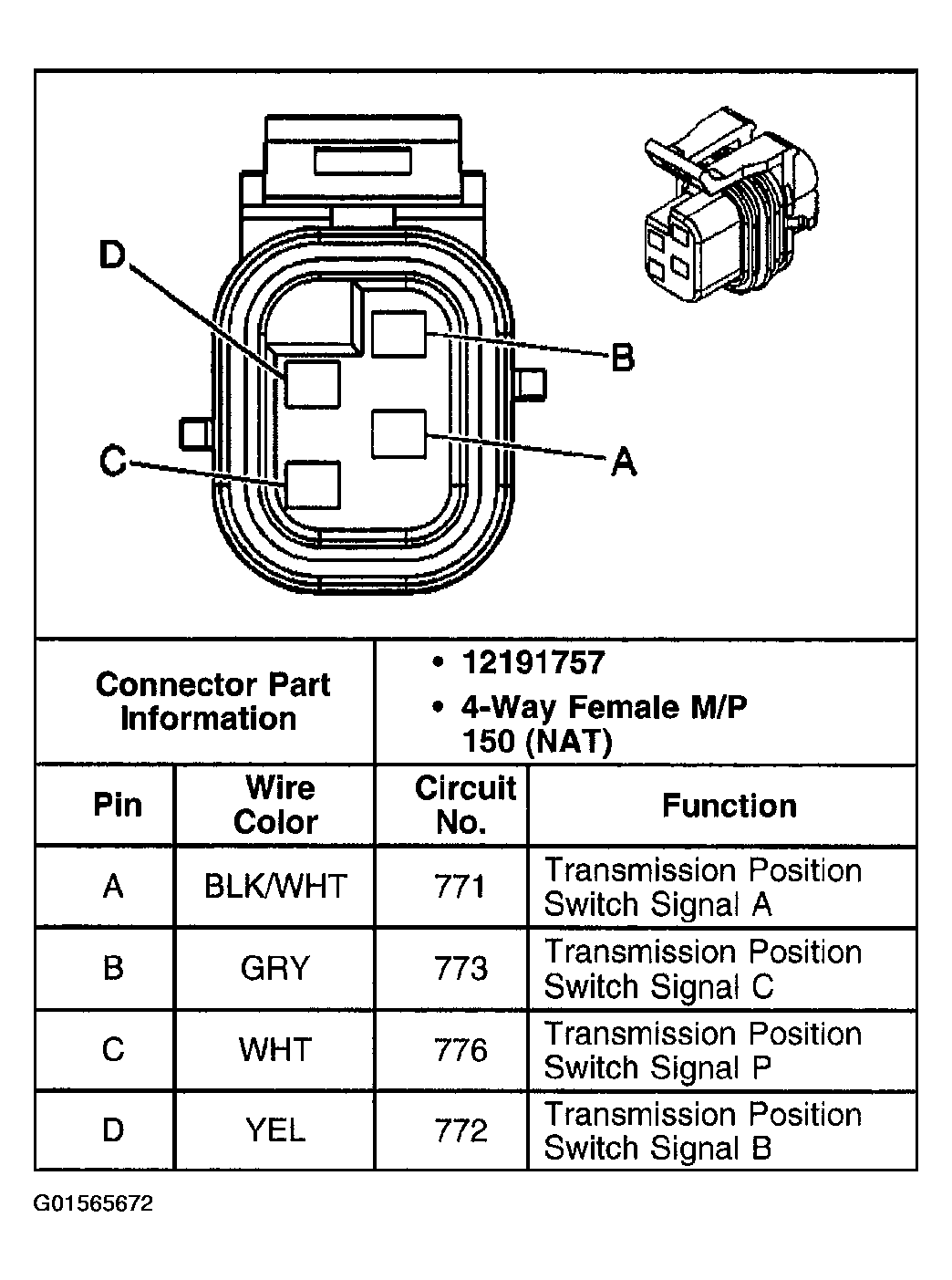

Fig 4: Park/Neutral Position Switch (C1)

Courtesy of GENERAL MOTORS CORP.

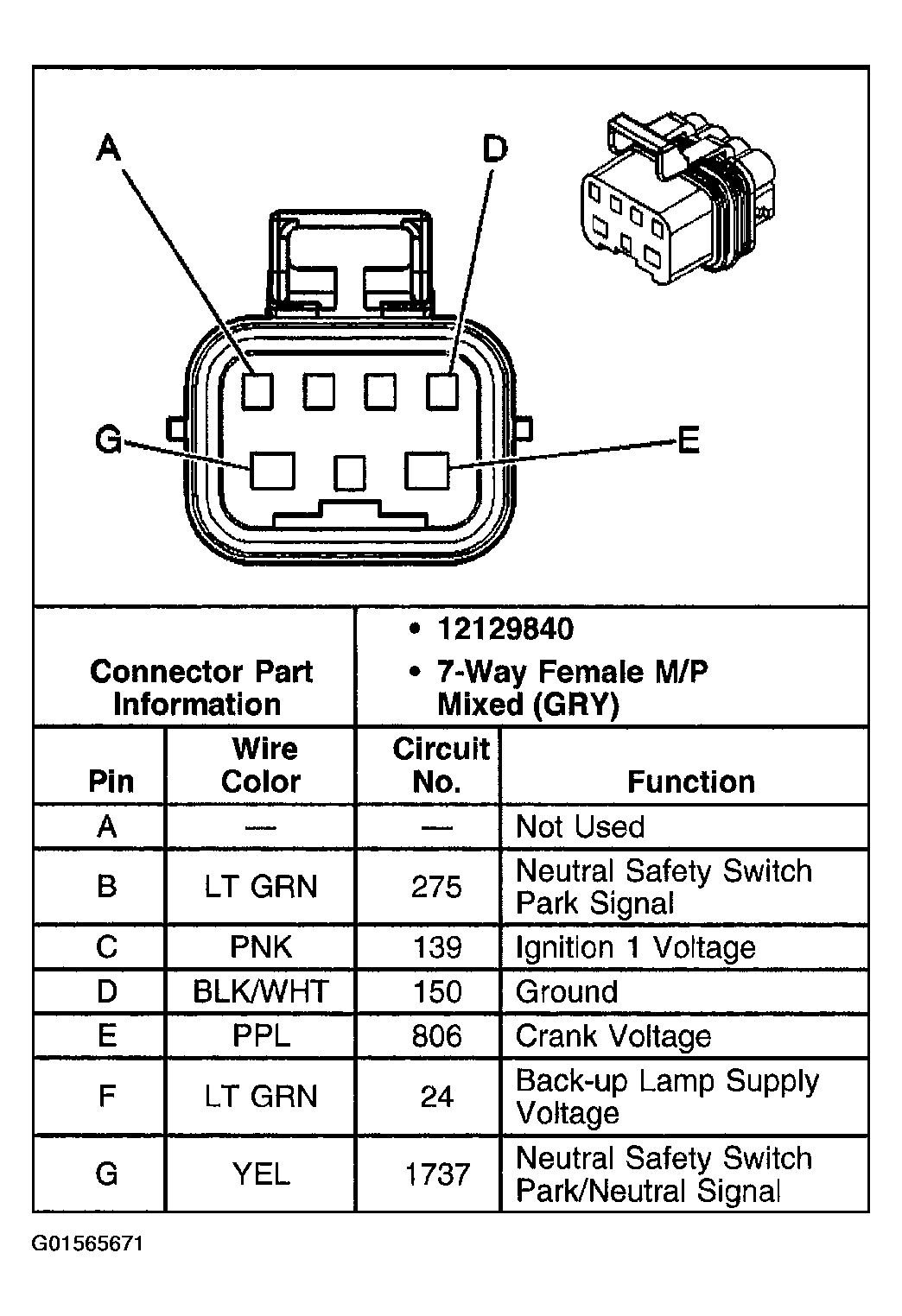

Fig 5: Park/Neutral Position Switch (C2)

Courtesy of GENERAL MOTORS CORP.
