Automatic Transmission Inline 20-Way Connector End View

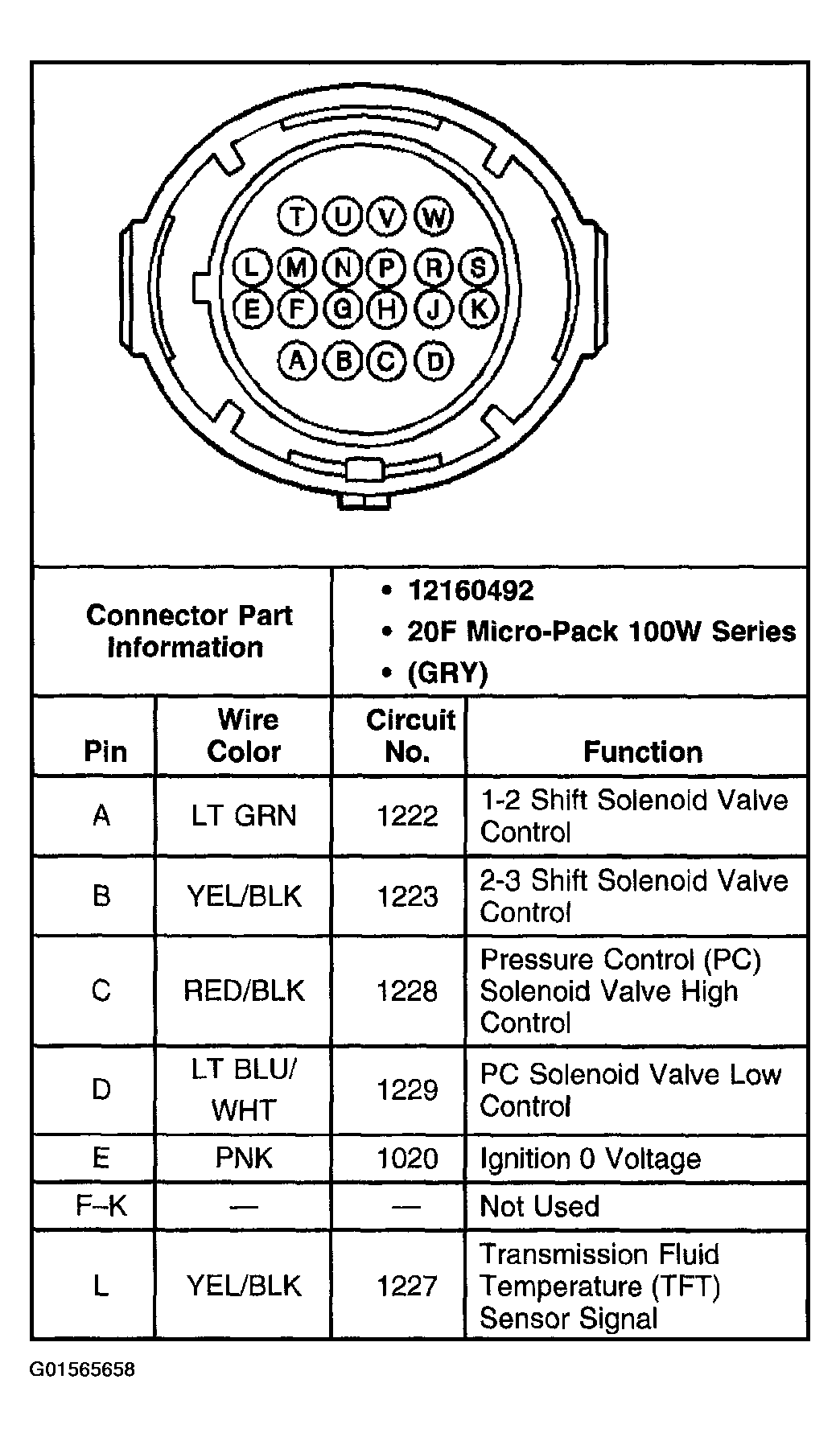

Fig 1: A/T Inline 20-Way Connector, Engine Side (1 Of 2)
G01565658Courtesy of GENERAL MOTORS CORP.

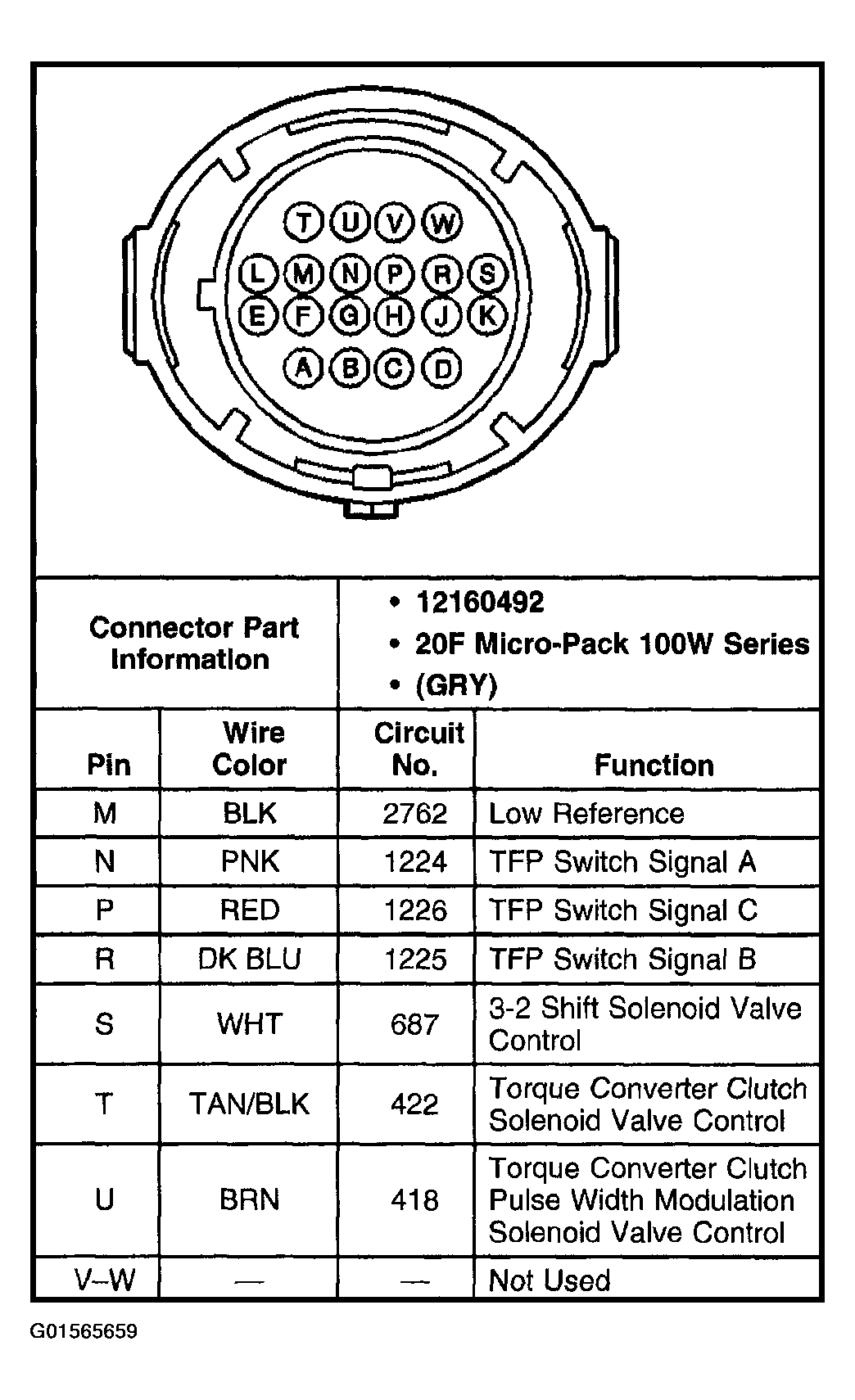

Fig 2: A/T Inline 20-Way Connector, Engine Side (2 Of 2)
G01565659Courtesy of GENERAL MOTORS CORP.

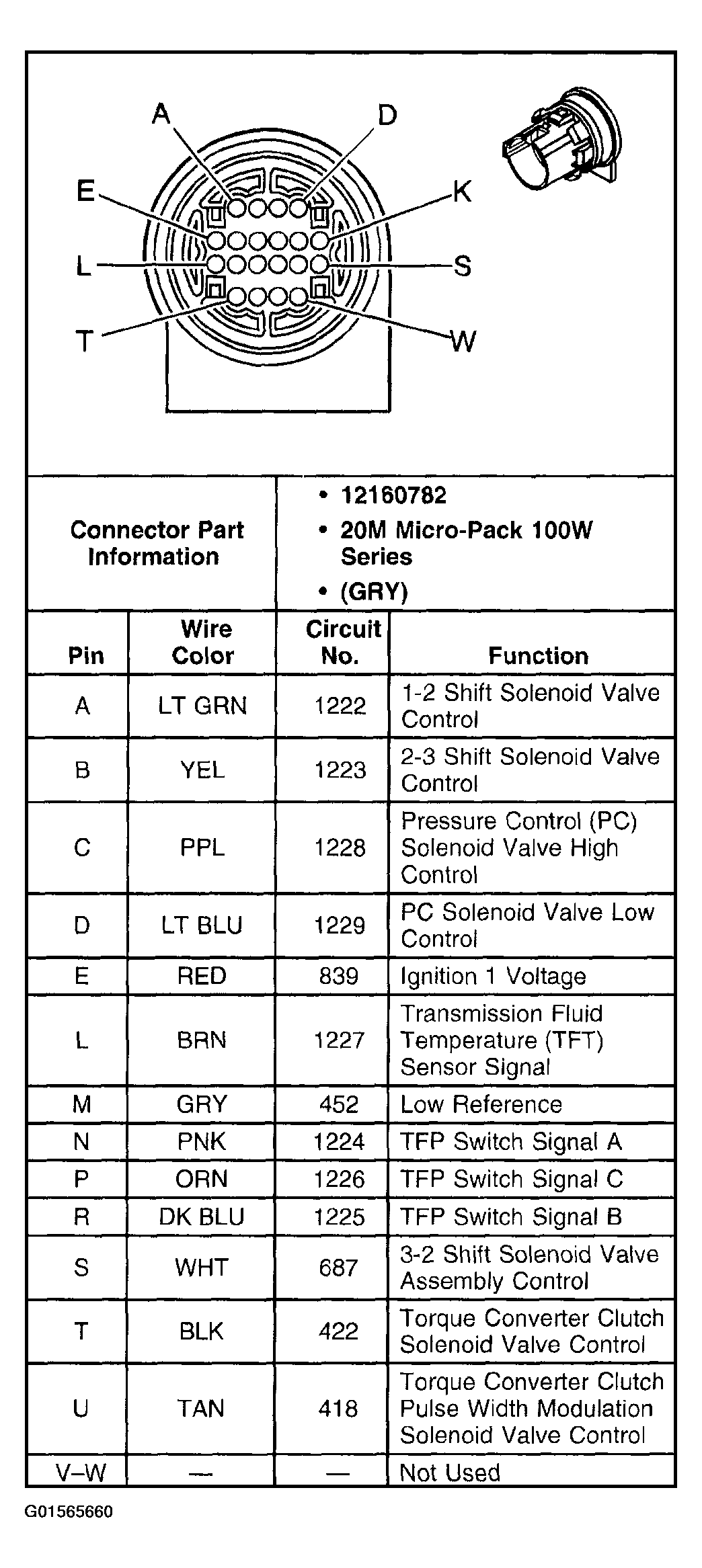

Fig 3: A/T Inline 20-Way Connector, Transmission Side
G01565660Courtesy of GENERAL MOTORS CORP.
