Automatic Transmission Electronic Component Views

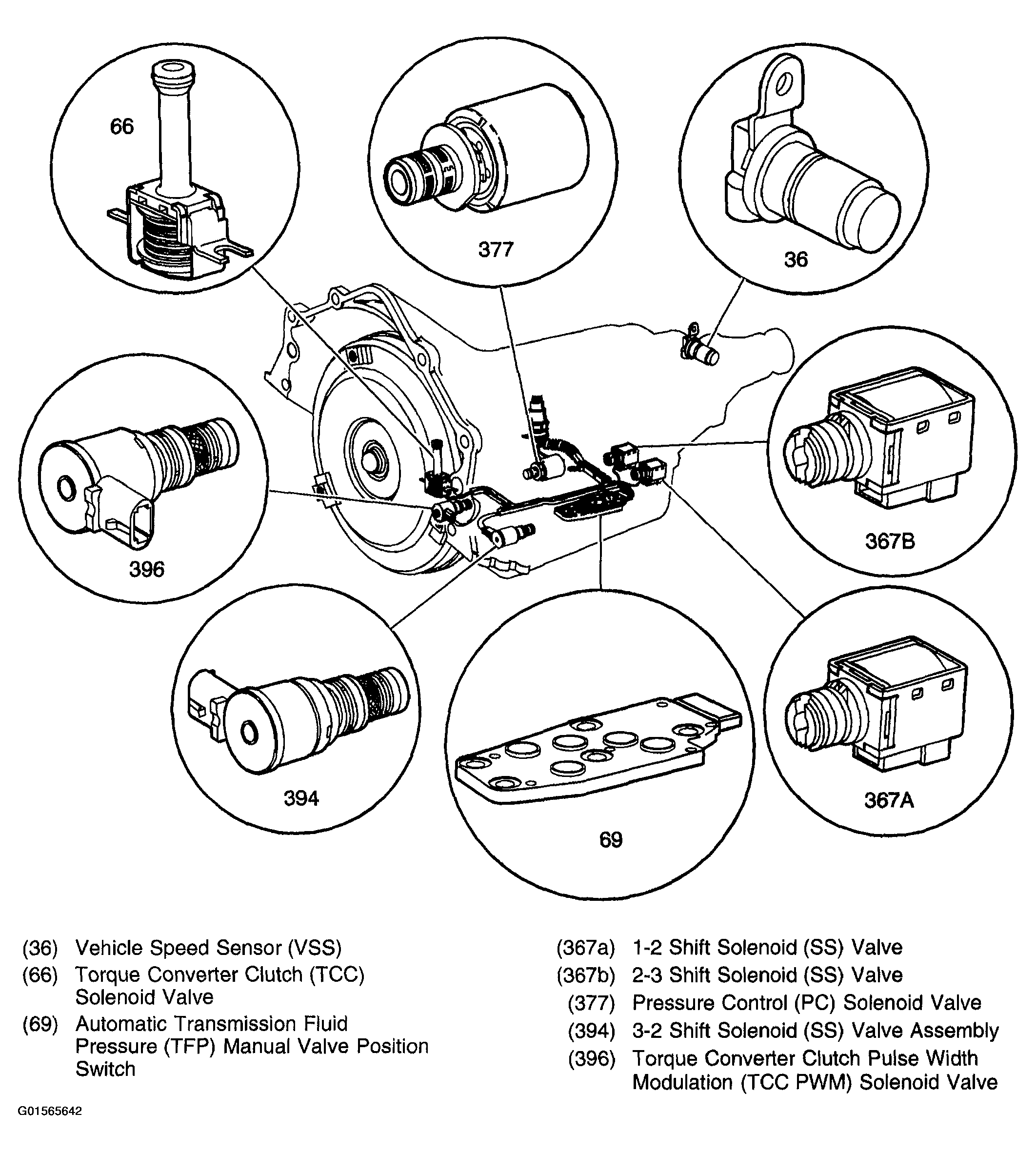

Fig 1: Electronic Components

Courtesy of GENERAL MOTORS CORP.

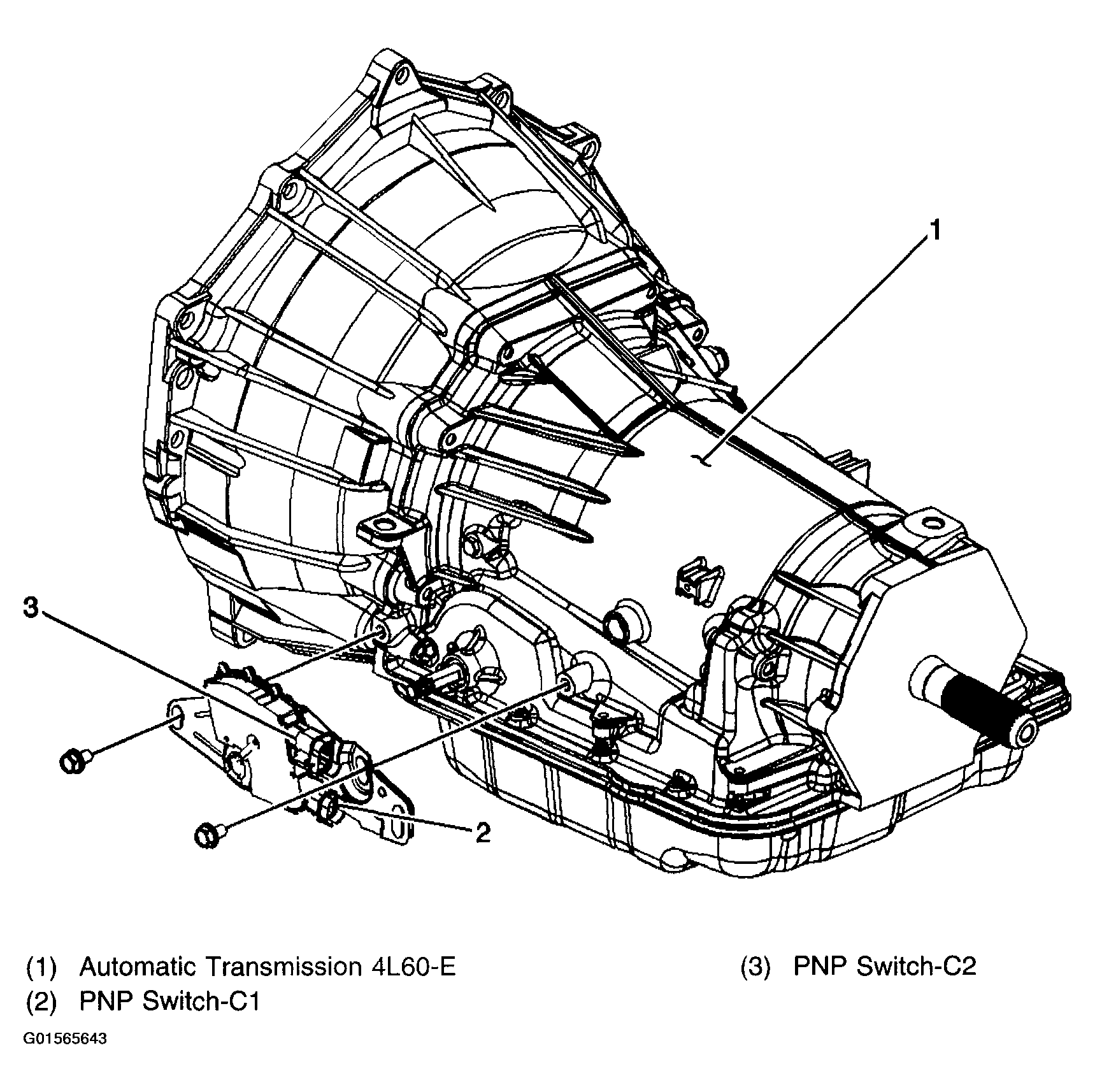

Fig 2: Park Neutral Position (PNP) Switch

Courtesy of GENERAL MOTORS CORP.

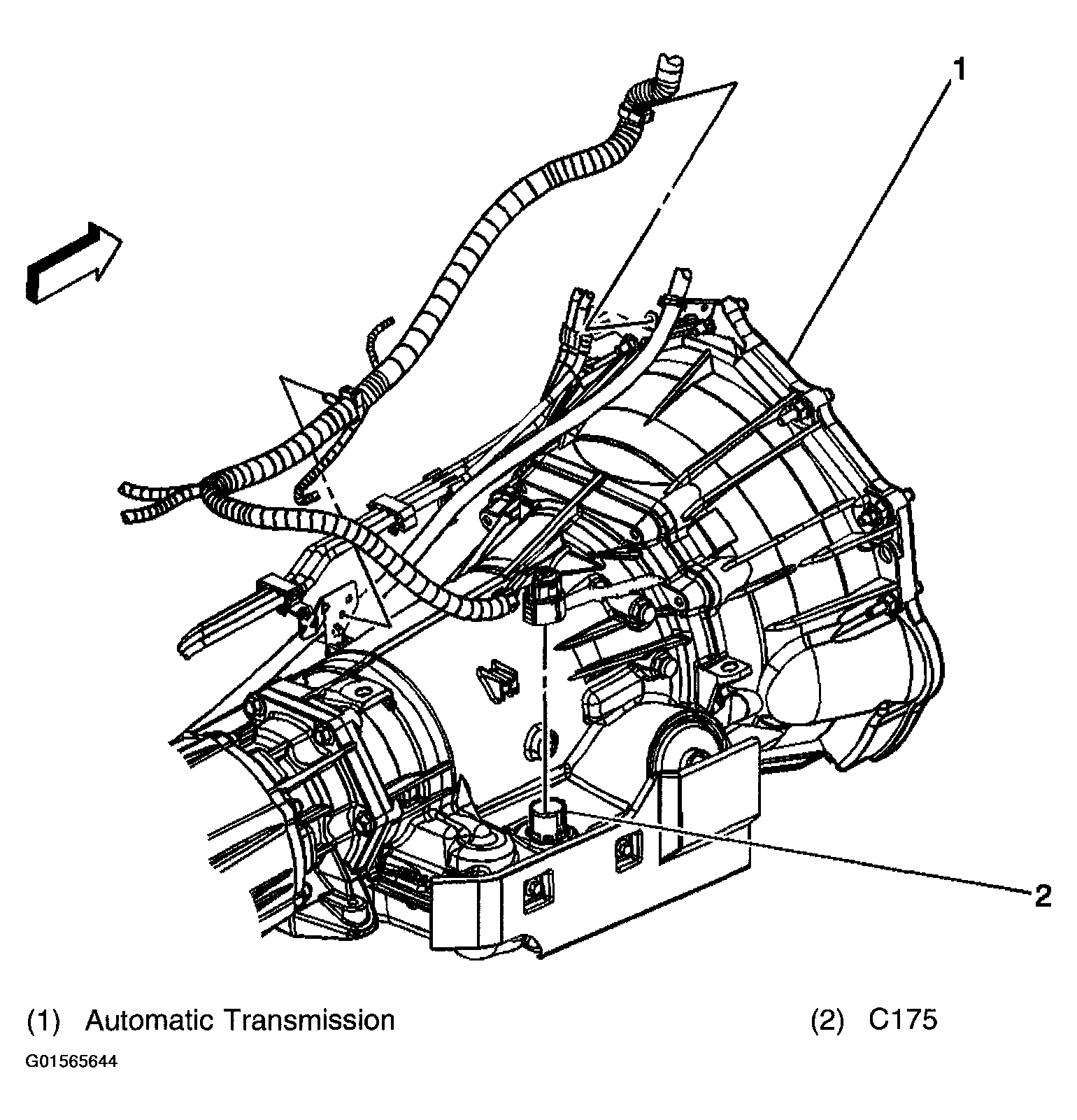

Fig 3: Connector C175

Courtesy of GENERAL MOTORS CORP.

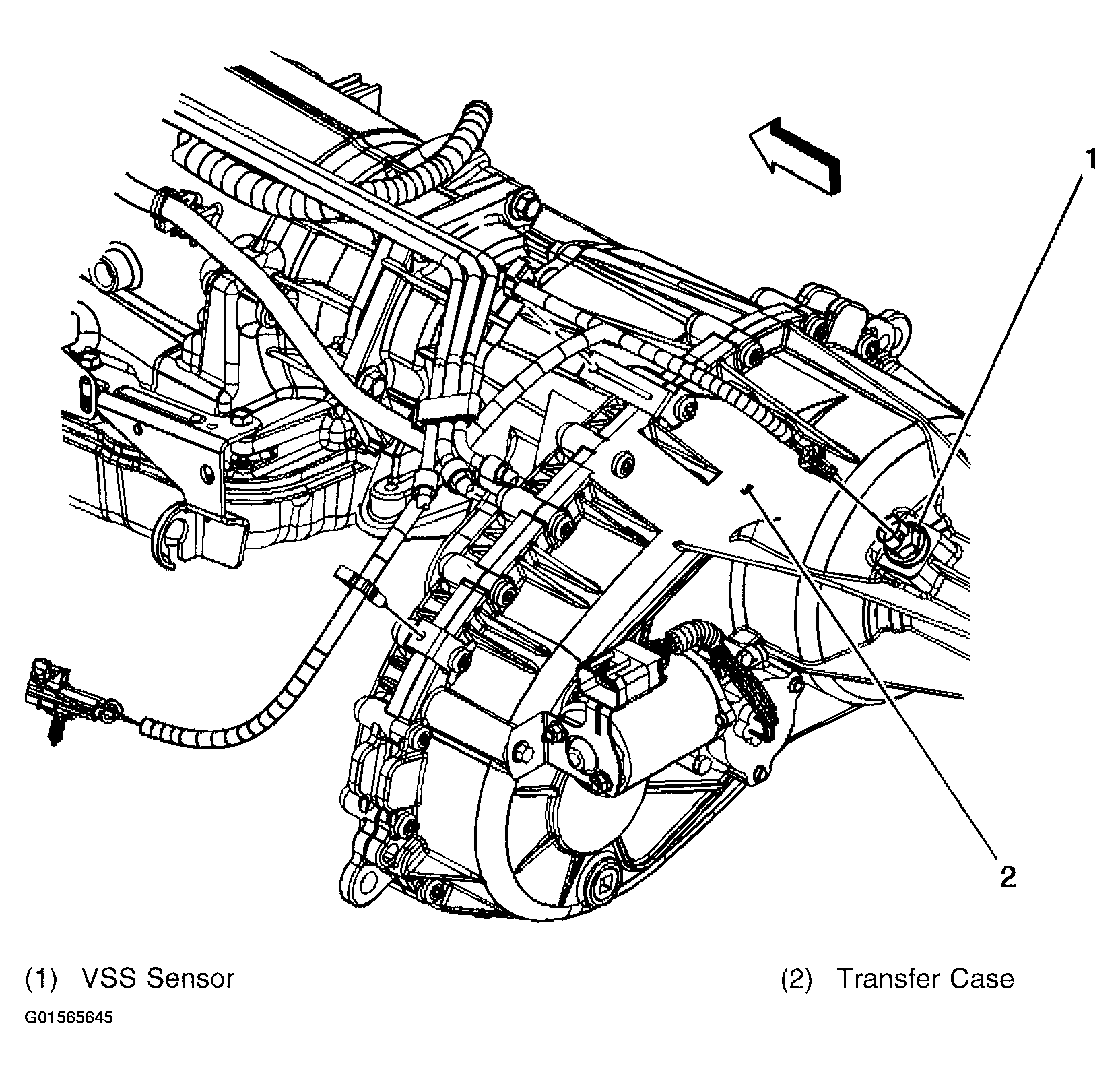

Fig 4: Vehicle Speed Sensor (VSS)

Courtesy of GENERAL MOTORS CORP.
