Removal Procedure

  1. Raise and support the vehicle with safety stands. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the wheel hub cap, if equipped.
  3. Remove the wheel nuts. Mark the location of the tire and wheel assembly to the hub assembly.
  4. Remove the tire and wheel assembly.

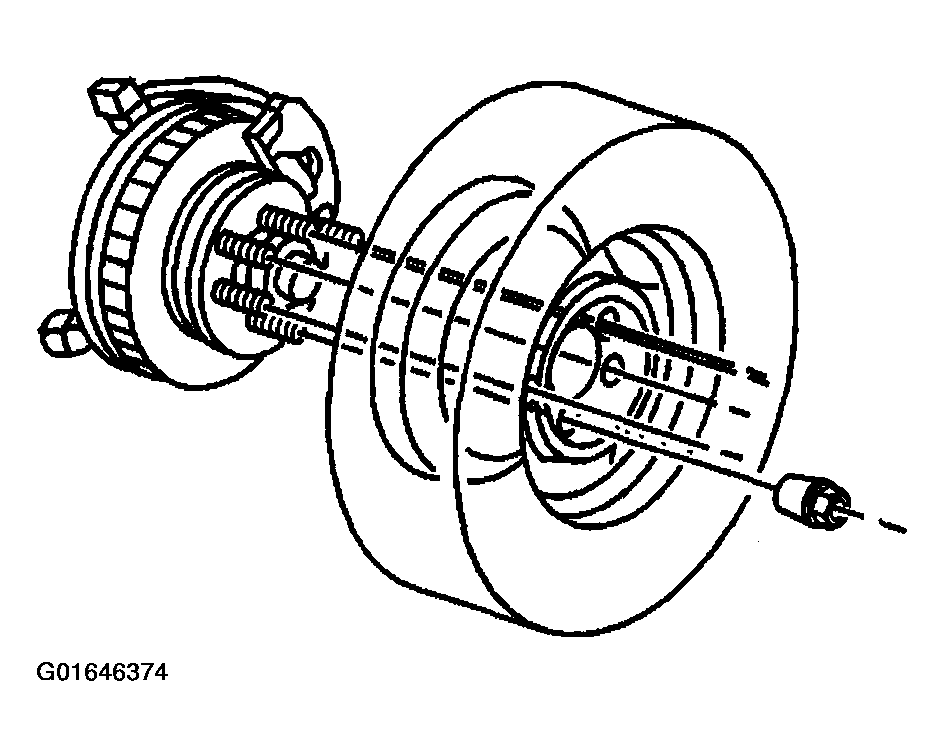

    Fig 1: Removing Tire & Wheel Assembly
    G01646374Courtesy of GENERAL MOTORS CORP.
  5. Clean the wheel nuts, studs, and the wheel and rotor mounting surfaces.
