Tire Diagnosis - Irregular or Premature Wear: Notes

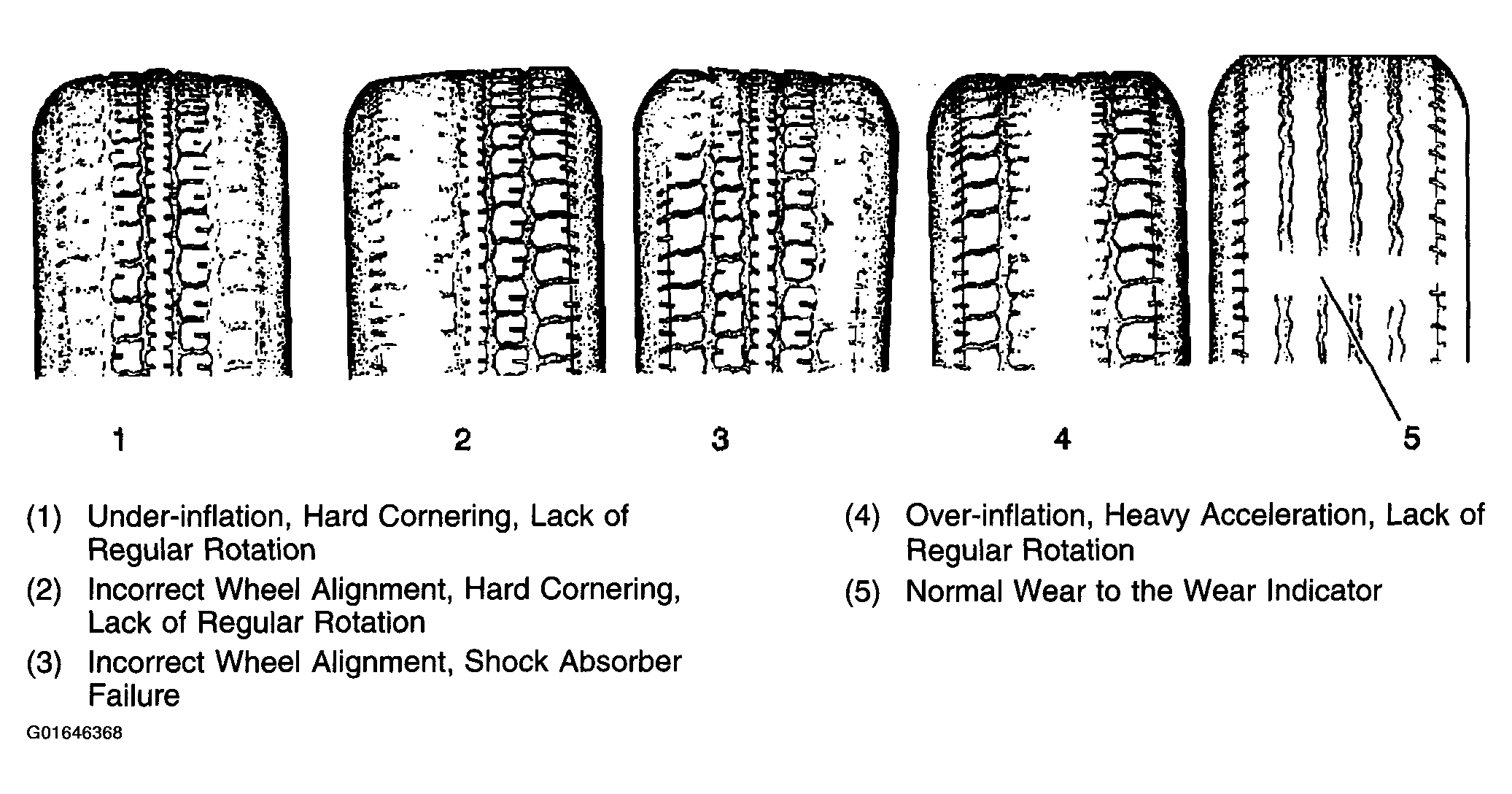

Fig 1: Diagnosing Irregular or Premature Tire Wear

G01646368

Courtesy of GENERAL MOTORS CORP.
