Removal Procedure

  1. Raise and suitably support the vehicle with safety stands. Refer to JACKING AND LIFTING in General Information.
  2. Remove the tire and the wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the brake rotor. Refer to BRAKE ROTOR (FRONT) in Disc Brakes.

    Important:  Do not hammer on a wheel stud.

  4. Remove the wheel stud using J 43631.

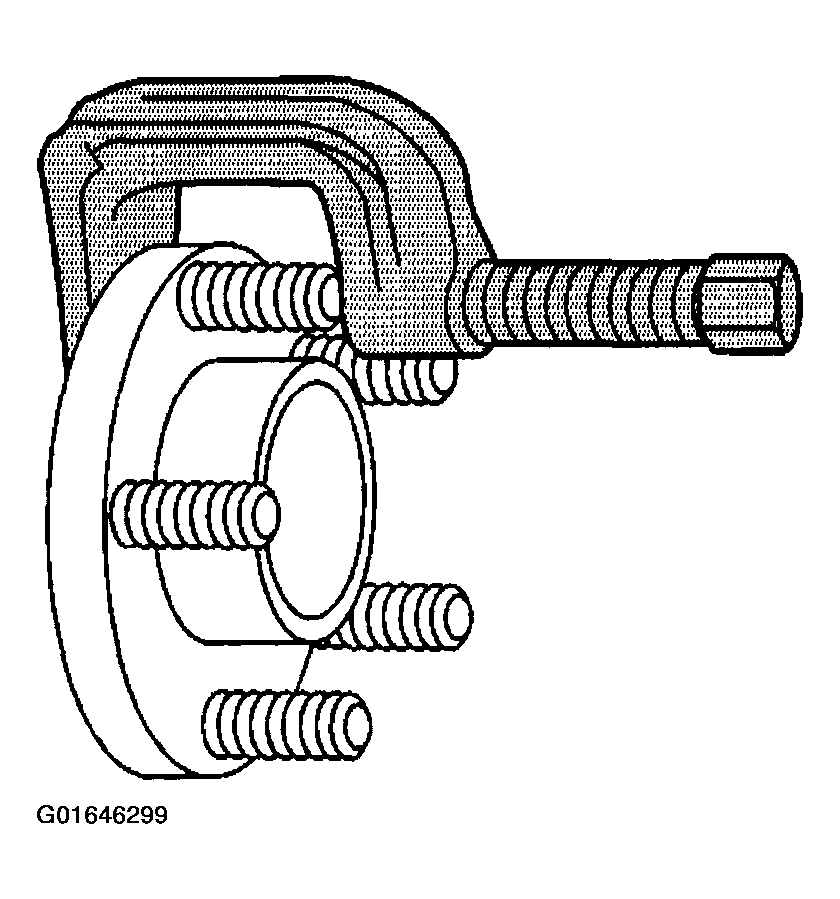

    Fig 1: Removing Wheel Stud
    G01646299Courtesy of GENERAL MOTORS CORP.
