Installation Procedure

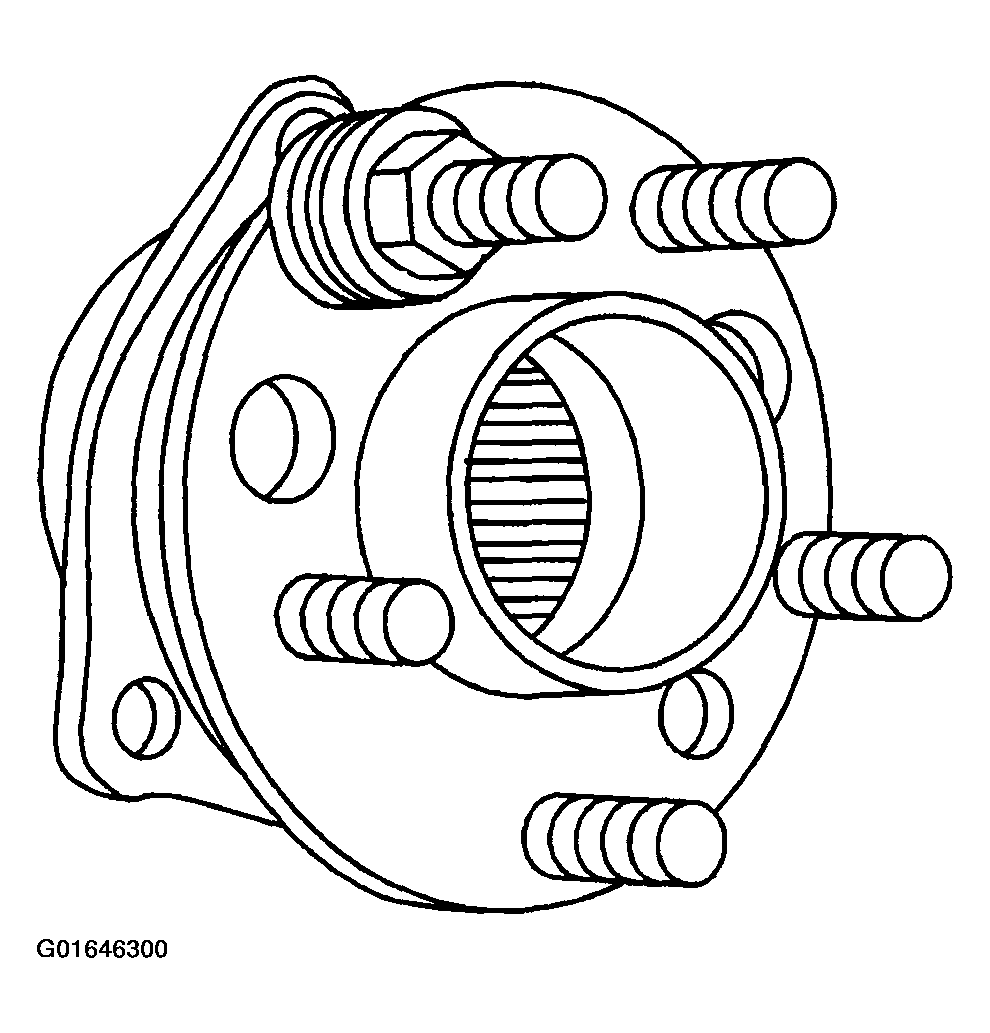

- Install the wheel stud to the wheel hub and bearing.
Courtesy of GENERAL MOTORS CORP.
- Install 4 washers to the wheel stud.
- Thread a wheel nut onto the new stud with the flat side facing the hub flange.
- Tighten the wheel nut until the new stud contacts the back of the hub flange.
- Remove the wheel nut and the washers from the wheel stud.
- Install the brake rotor. Refer to BRAKE ROTOR (FRONT)
in Disc Brakes.
- Install the tire and the wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION
in Tires and Wheels.
- Lower the vehicle.
