Removal Procedure
- Raise the vehicle. Refer to JACKING AND LIFTING
in General Information.
- Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION
in Tires and Wheels.
- Remove the brake rotor. Refer to BRAKE ROTOR (FRONT)
in Disc Brakes.

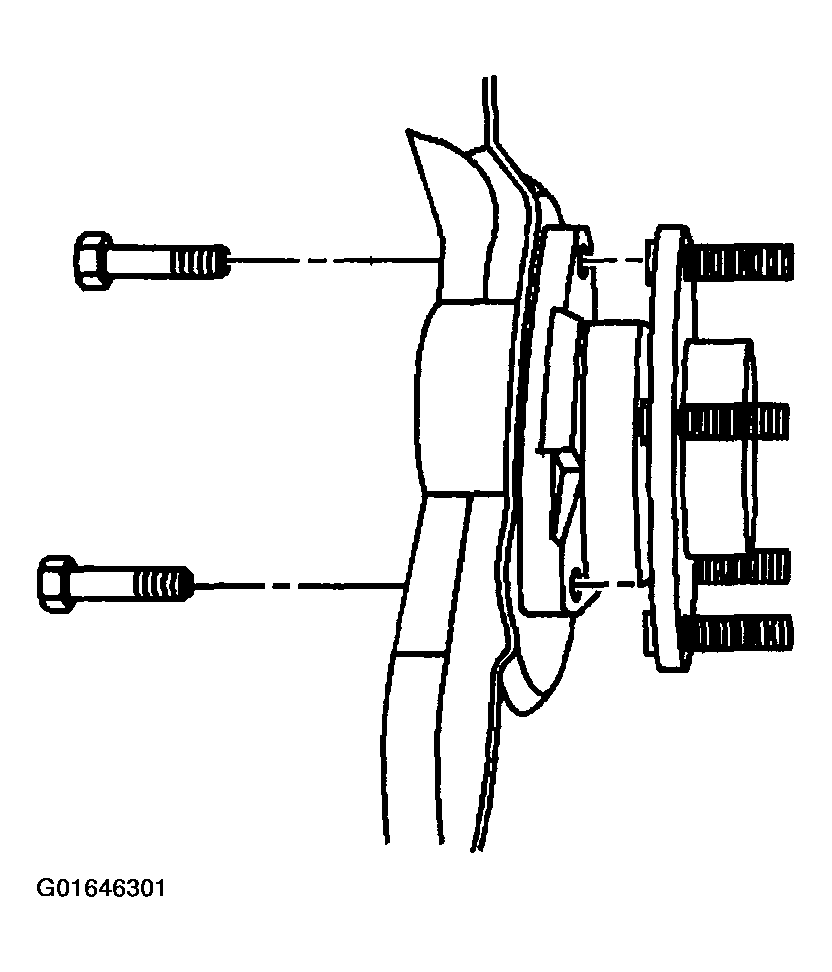

- Remove the wheel hub and bearing mounting bolts.
Courtesy of GENERAL MOTORS CORP.

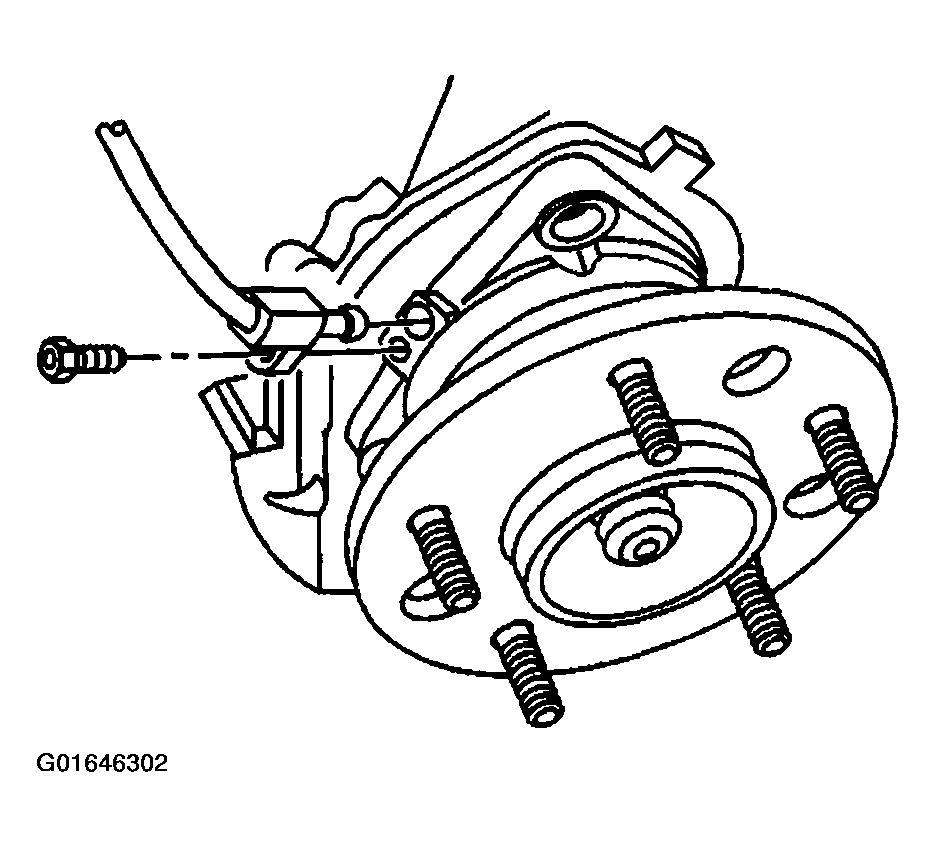

- Remove the wheel speed sensor mounting bolt from the wheel hub and bearing.
- Disconnect the wheel speed sensor from the wheel hub and bearing.
Courtesy of GENERAL MOTORS CORP.

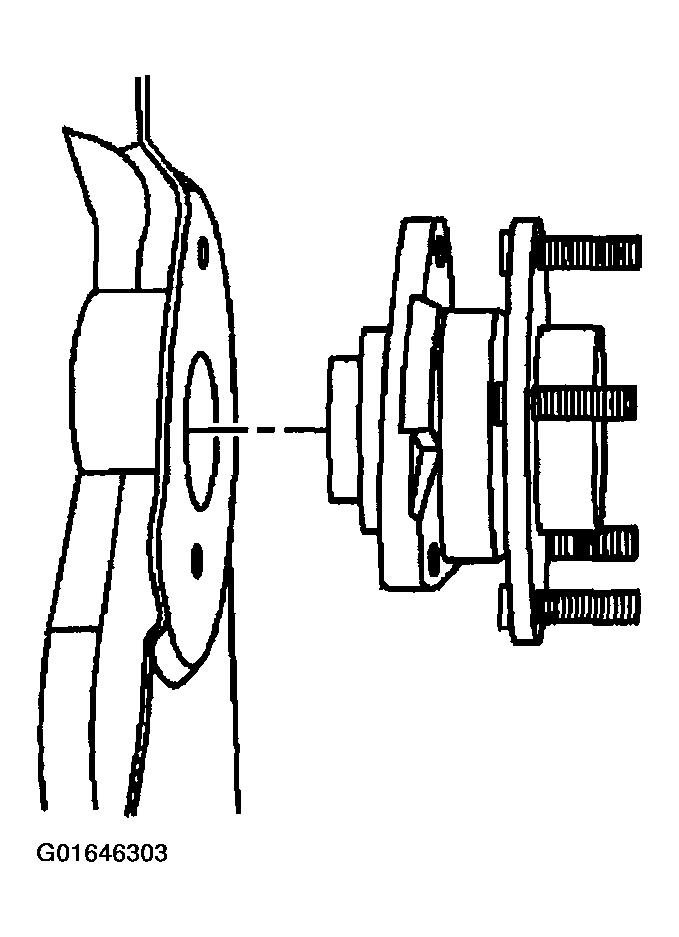

- Disengage wheel hub and bearing from steering knuckle.
- Remove wheel speed sensor through the access hole in the splash shield.
- Remove the wheel hub and bearing and splash shield.
- Remove the splash shield form the wheel hub and bearing.
Courtesy of GENERAL MOTORS CORP.
