Installation Procedure

  1. Install the splash shield to the wheel hub and bearing.
  2. Install the wheel speed sensor through the access hole in the splash shield.
  3. Install the wheel hub and bearing and splash shield to the steering knuckle.

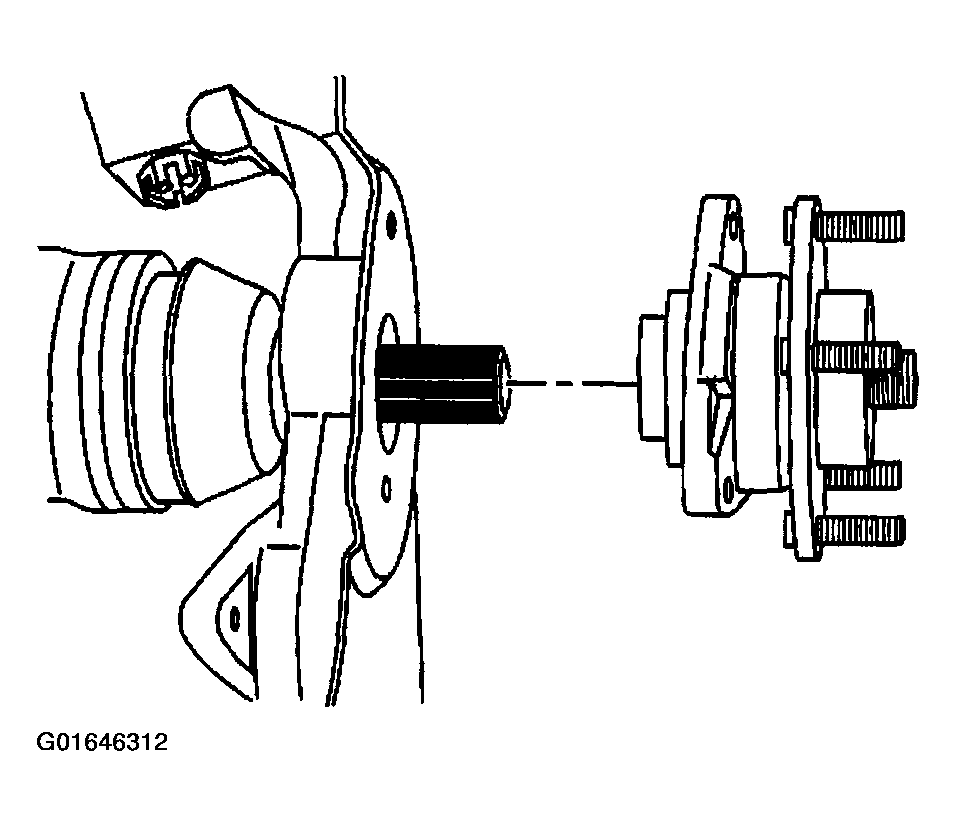

    Fig 1: Installing Splash Shield
    G01646312Courtesy of GENERAL MOTORS CORP.
  4. Install the wheel speed sensor to the wheel hub and bearing.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the wheel speed sensor mounting bolt to the wheel hub and bearing.

    Tighten

    Tighten the wheel speed sensor mounting bolt to 18 N.m (13 lb ft).

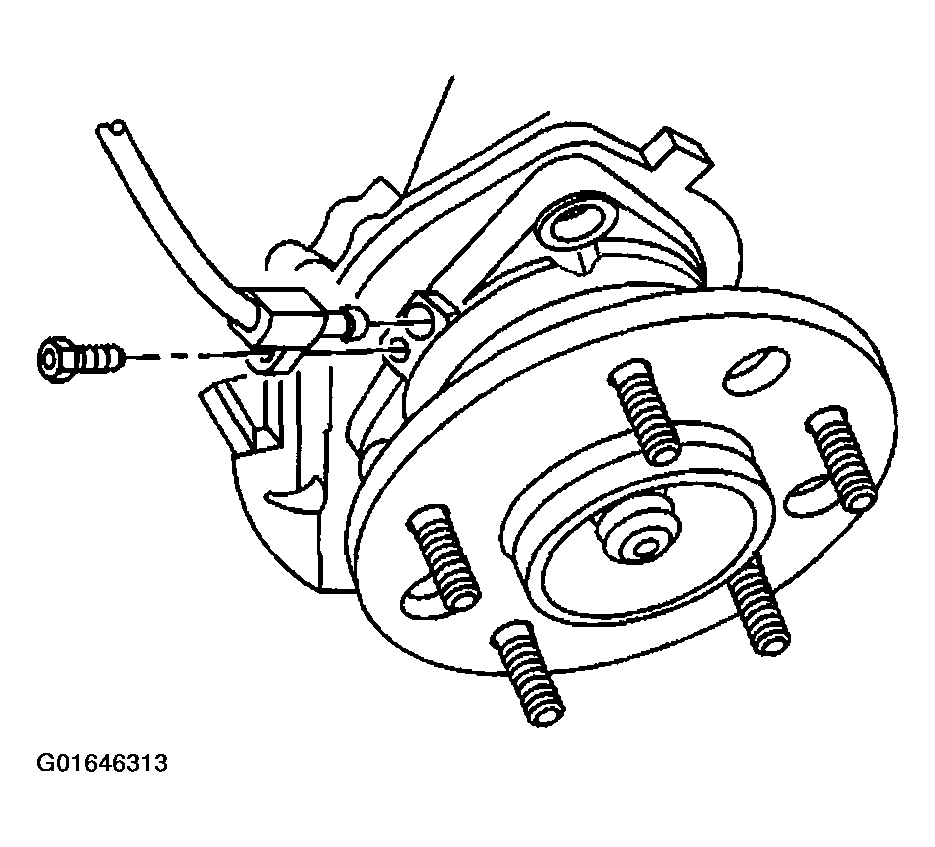

    Fig 2: Installing Wheel Speed Sensor Mounting Bolt
    G01646313Courtesy of GENERAL MOTORS CORP.
  6. Install the wheel hub and bearing mounting bolts.

    Tighten

    Tighten the wheel hub and bearing mounting bolts to 180 N.m (133 lb ft).

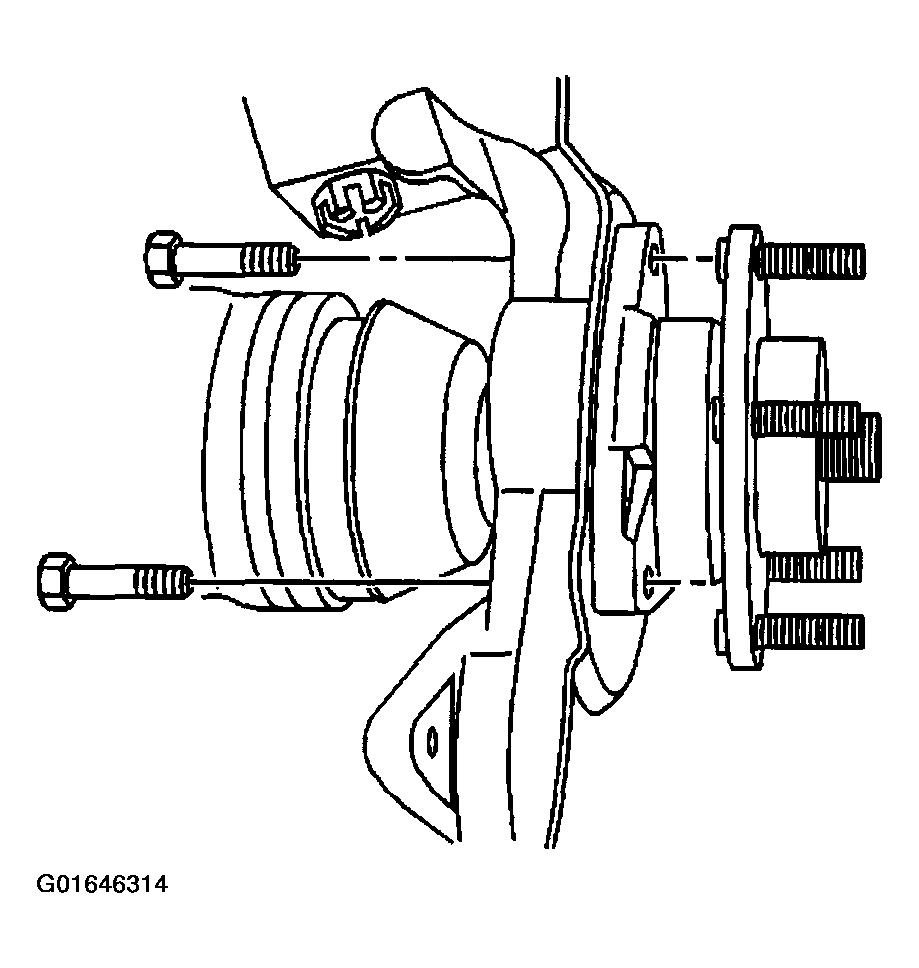

    Fig 3: Installing Wheel Hub And Bearing Mounting Bolts
    G01646314Courtesy of GENERAL MOTORS CORP.
  7. Install the wheel drive shaft washer and the nut.

    Tighten

    Tighten the wheel drive shaft nut to 200 N.m (147 lb ft).

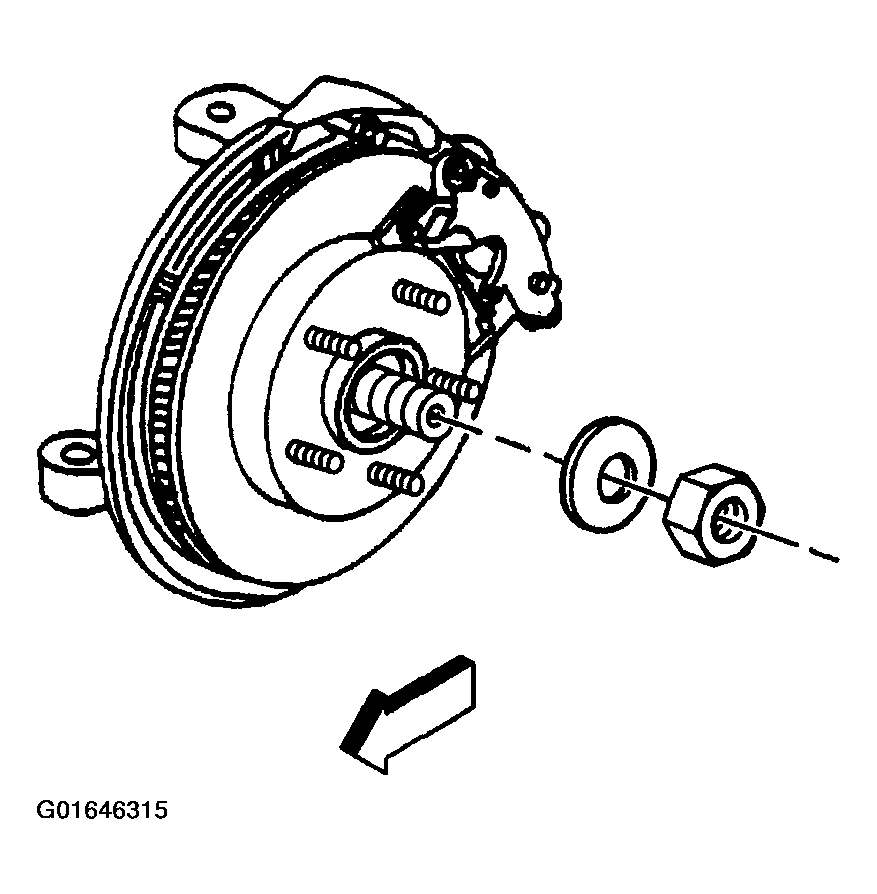

    Fig 4: Installing Wheel Drive Shaft Washer And Nut
    G01646315Courtesy of GENERAL MOTORS CORP.
  8. Install the brake rotor. Refer to BRAKE ROTOR (FRONT) in Disc Brakes.
  9. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  10. Lower and the vehicle.
