Removal Procedure

  1. Raise the vehicle. Refer to JACKING AND LIFTING in General Information.
    CAUTION: Refer to FLOOR JACK CAUTION in Cautions and Notices.
  2. Support the lower control arm with safety stands.

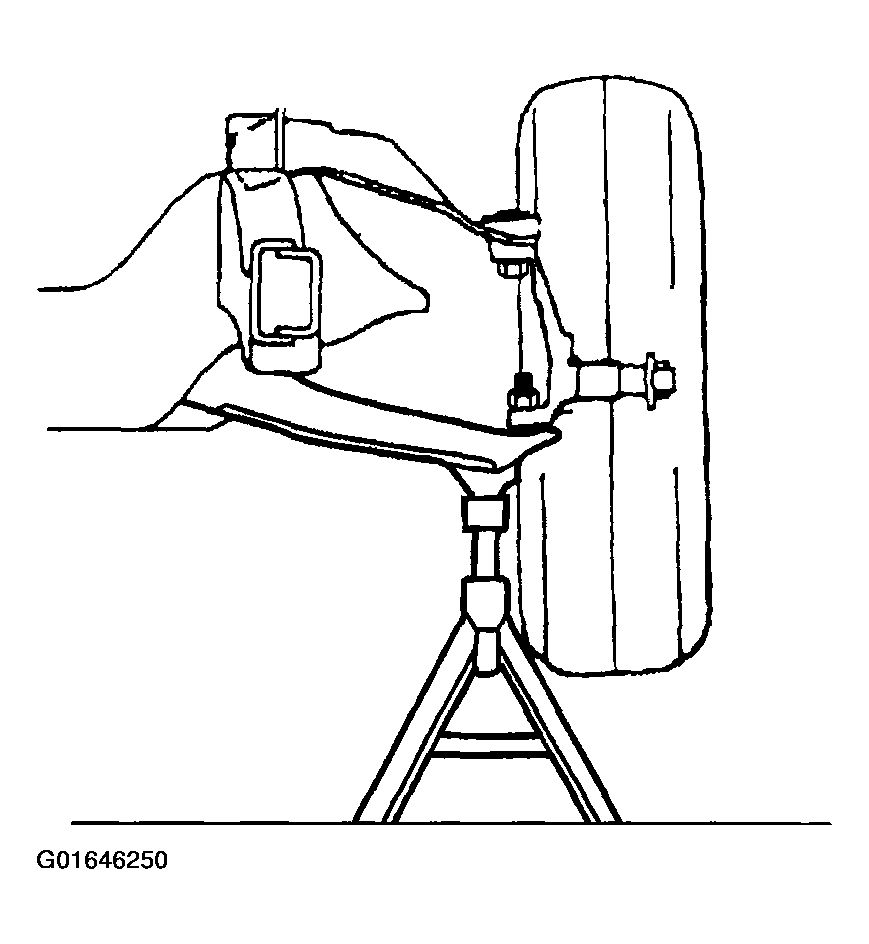

    Fig 1: Supporting Lower Control Arm Using Safety Stands
    G01646250Courtesy of GENERAL MOTORS CORP.
  3. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  4. Remove the wheel speed sensor harness bracket retaining bolt and nut.
  5. Remove the upper control arm center pin and the retaining.

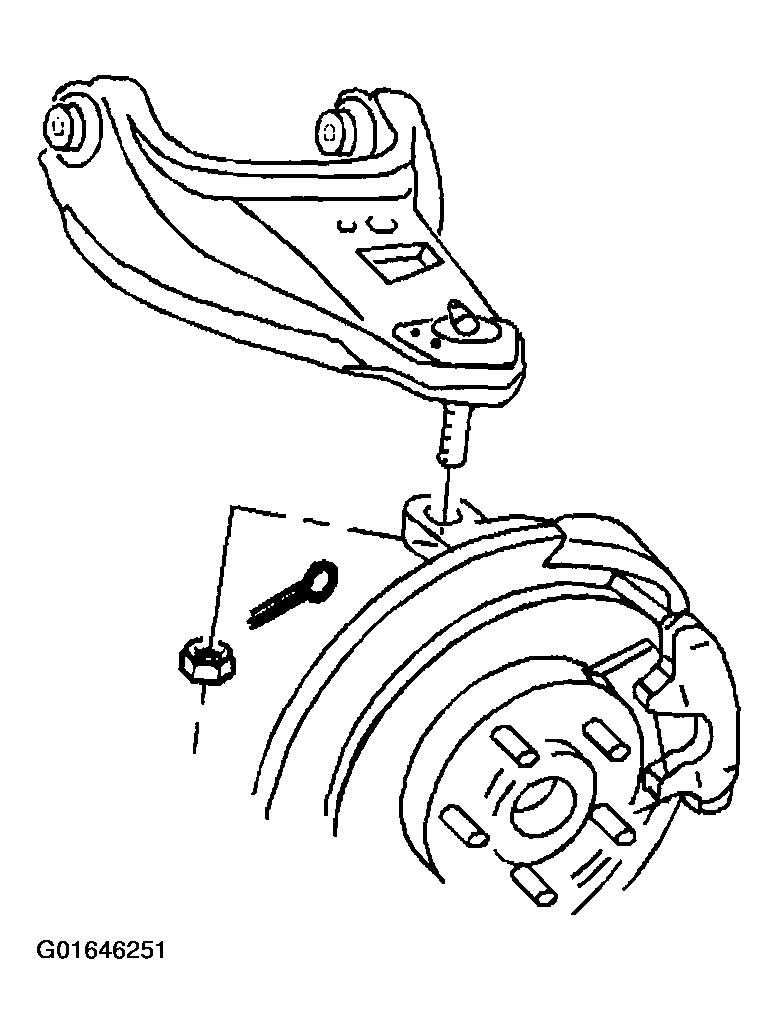

    Fig 2: Removing Upper Control Arm Center Pin And Retaining
    G01646251Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the steering knuckle from the upper ball joint using J 23742.

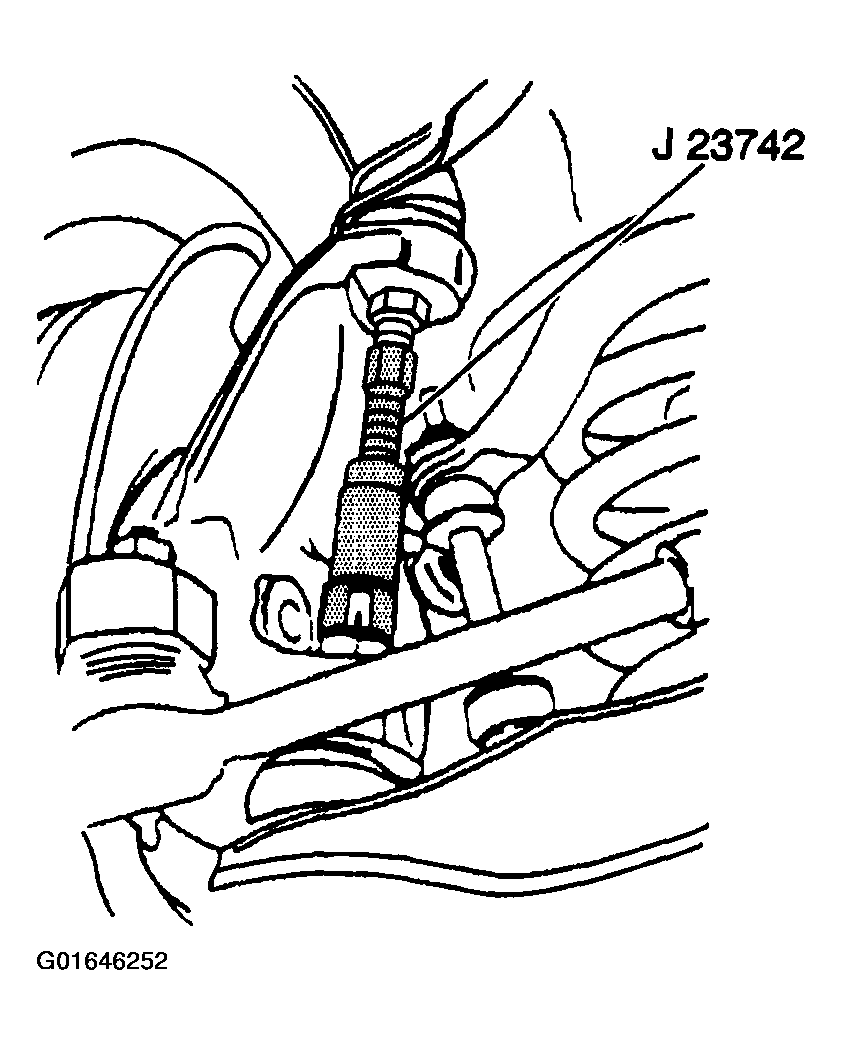

    Fig 3: Disconnecting Steering Knuckle From Upper Ball Joint
    G01646252Courtesy of GENERAL MOTORS CORP.
  7. Remove the upper control arm from the steering knuckle.
  8. Support the steering knuckle in order to prevent the knuckle weight from damage the brake hose.

    Important:  Note the location of the alignment shims. Replace the shims in the same location from which these were removed.

  9. Remove the upper control arm mounting bolts and the shims.
  10. Remove the upper control arm mounting bolts. Lift and upper control arm in order to gain access to the bolts.
  11. Remove the upper control arm.

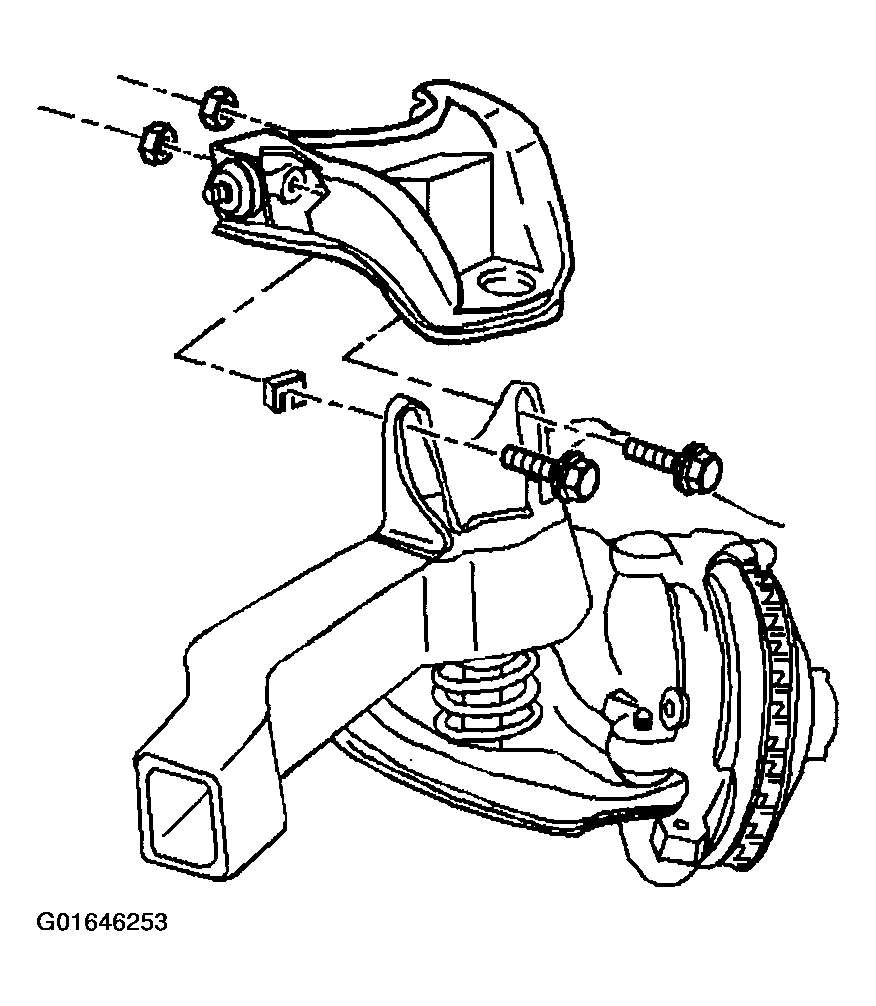

    Fig 4: Removing Upper Control Arm
    G01646253Courtesy of GENERAL MOTORS CORP.
