Removal Procedure

  1. Raise the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the idler arm mounting bolts.

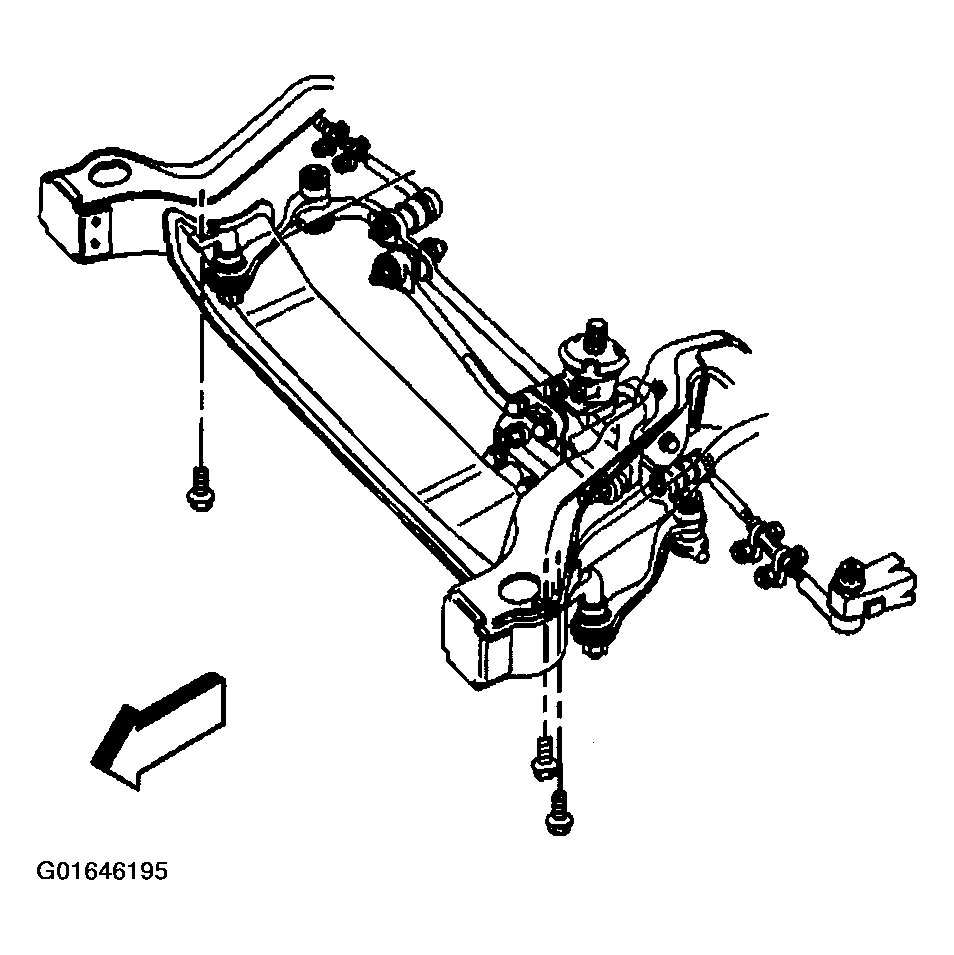

    Fig 1: Removing Idler Arm Mounting Bolts
    G01646195Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the idler arms for the frame. Move the steering linkage to gain access to the stabilizer shaft bracket mounting bolts.
  5. Remove the stabilizer shaft links. Refer to STABILIZER SHAFT LINK REPLACEMENT (RWD)  or STABILIZER SHAFT LINK REPLACEMENT (AWD)  .
  6. Remove the stabilizer shaft bracket mounting bolt and the nut (left hand).

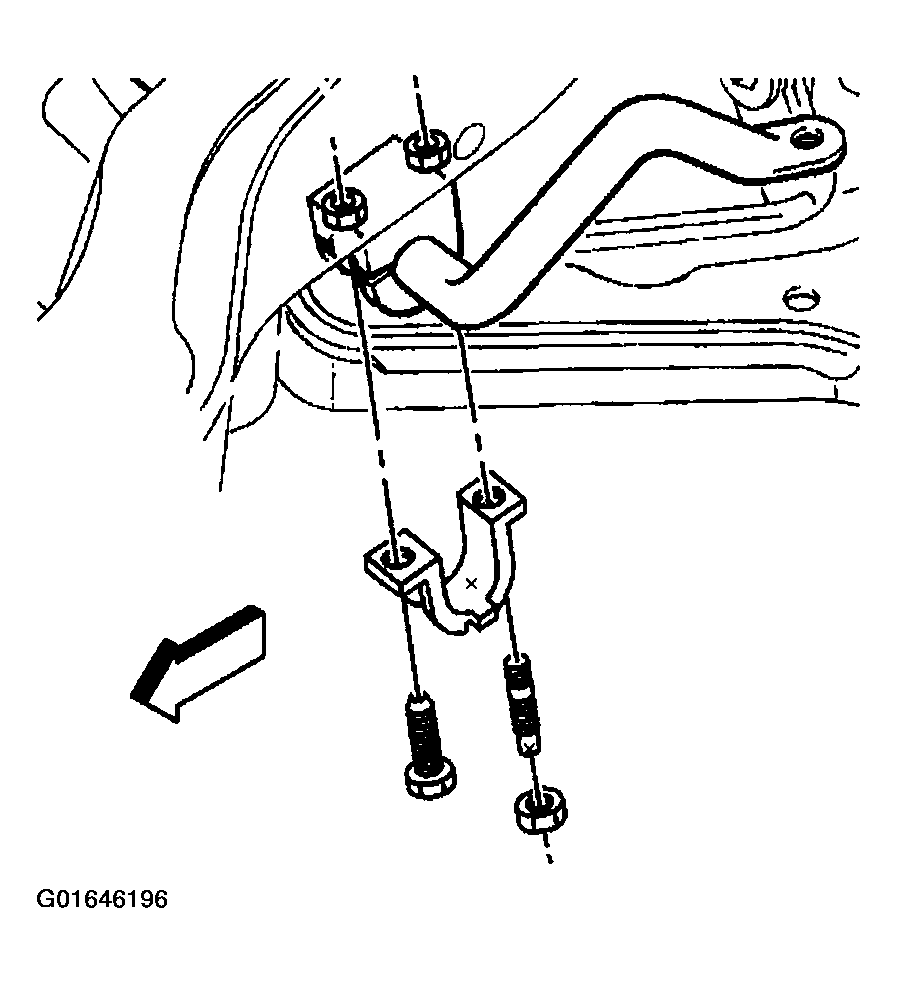

    Fig 2: Removing Stabilizer Shaft Bracket Mounting Bolt And Nut (Left Hand)
    G01646196Courtesy of GENERAL MOTORS CORP.
  7. Remove the stabilizer shaft bracket mounting bolts (right hand).

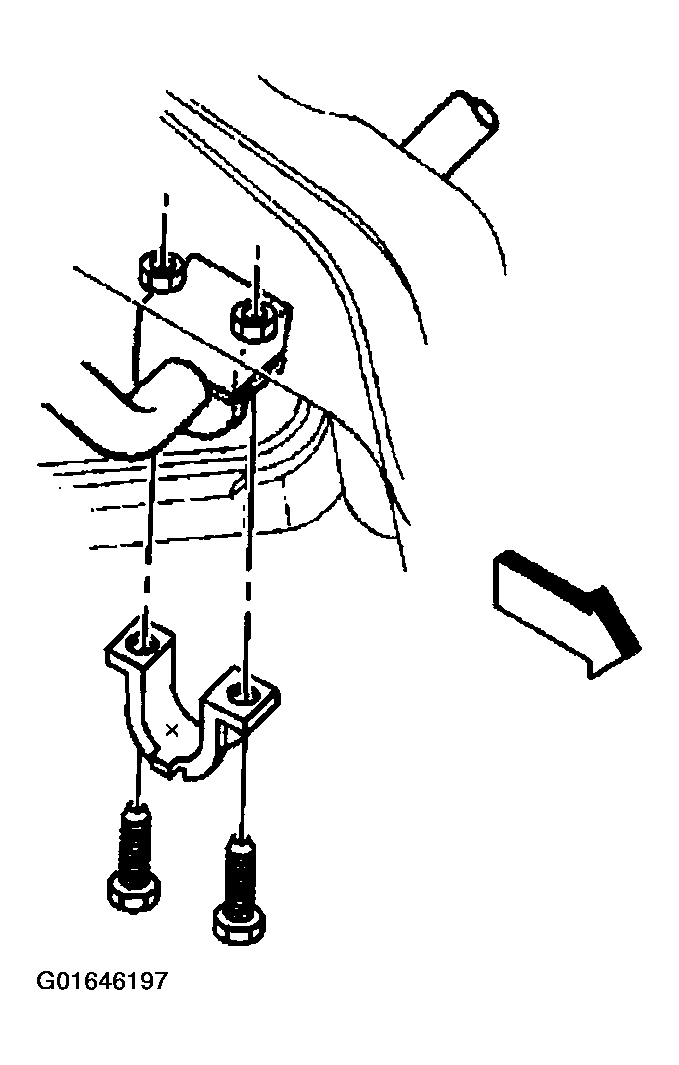

    Fig 3: Removing Stabilizer Shaft Bracket Mounting Bolt And Nut (Right Hand)
    G01646197Courtesy of GENERAL MOTORS CORP.
  8. Remove the stabilizer shaft brackets.
  9. Remove the stabilizer shaft insulators from the stabilizer shaft.
  10. Remove the stabilizer shaft.
  11. Inspect all of the parts for wear or damage.
