Removal Procedure

  1. Raise the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the stabilizer shaft link nut.
  4. Remove the retainer and insulator from the stabilizer shaft link bolt.
  5. Remove the stabilizer shaft link bolt, retainers, insulators, and stabilizer shaft link by pulling the bolt down through the stabilizer shaft and lower control arm.

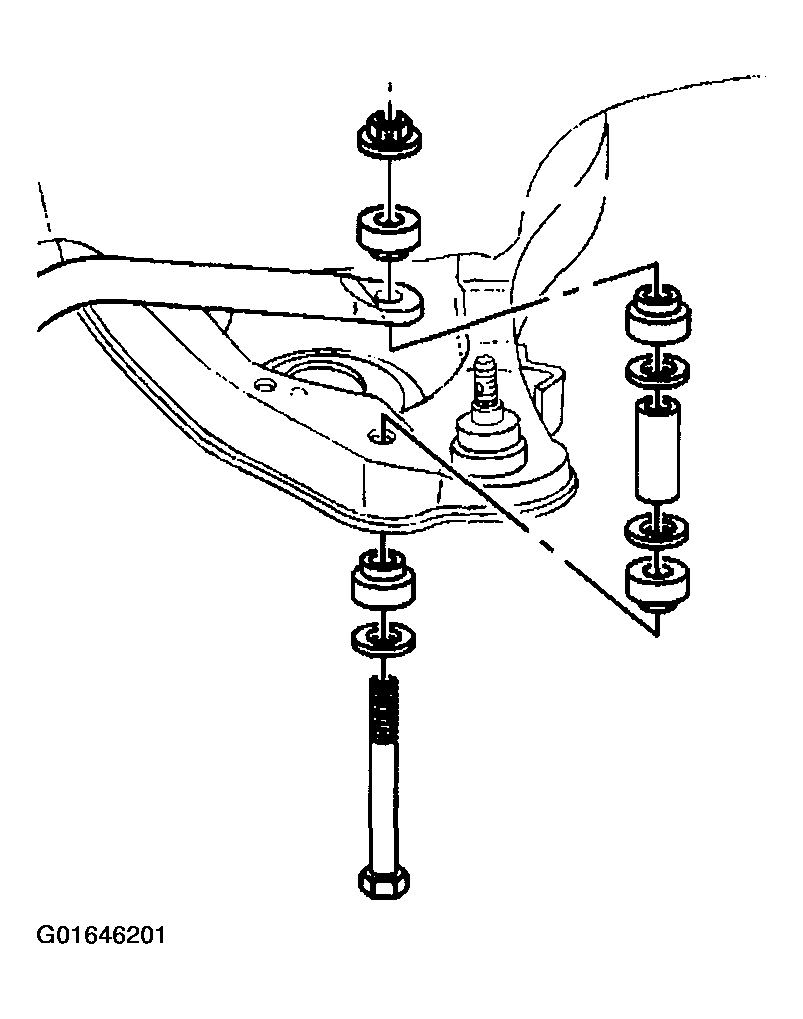

    Fig 1: Removing Stabilizer Shaft Link
    G01646201Courtesy of GENERAL MOTORS CORP.
