Installation Procedure

  1. Install the stabilizer shaft link insulator to the stabilizer shaft link bolt and insert the stabilizer shaft link bolt down through the stabilizer shaft.
  2. Install stabilizer shaft link to the stabilizer shaft link bolt and insert the stabilizer shaft link bolt down through the lower control arm.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the stabilizer shaft insulator and stabilizer shaft link retaining nut.

    Tighten

    Tighten the stabilizer shaft link retaining nut to 17 N.m (13 lb ft).

  4. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.

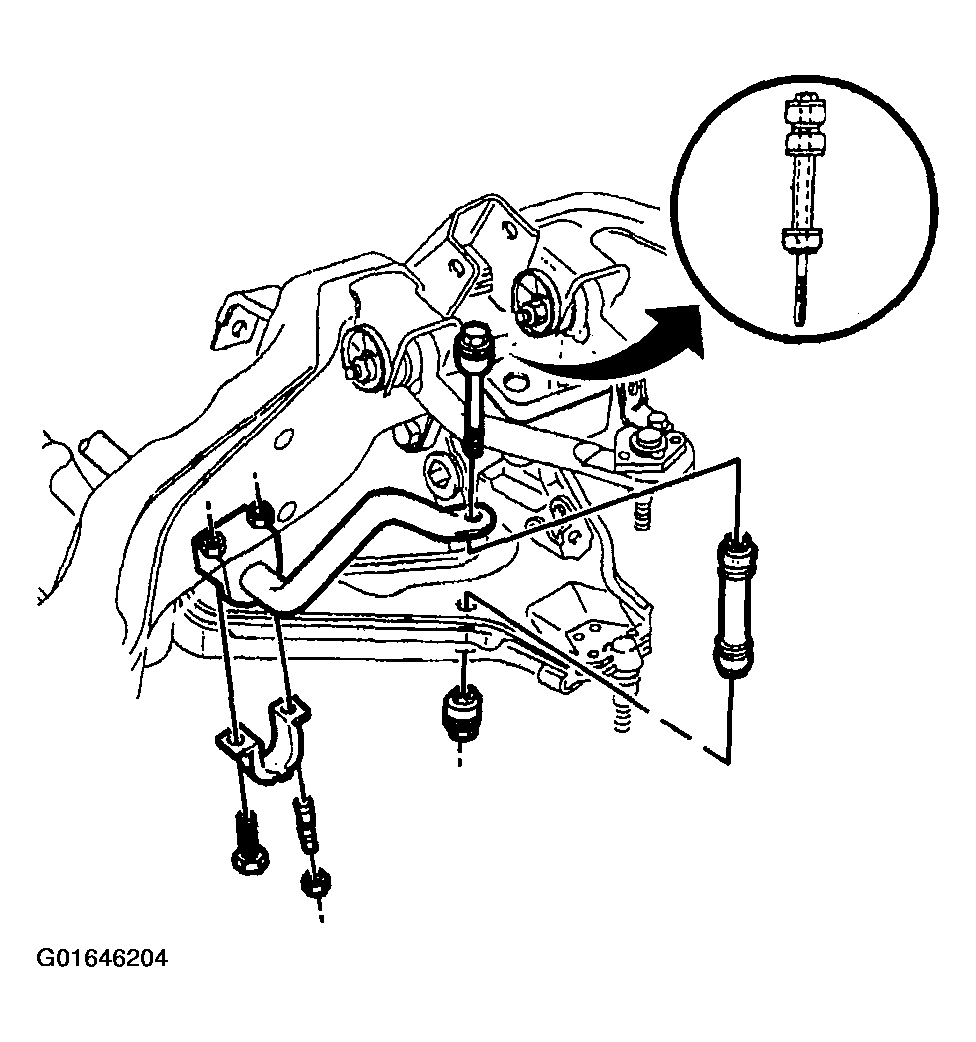

    Fig 1: Installing Stabilizer Shaft Link
    G01646204Courtesy of GENERAL MOTORS CORP.
  5. Lower the vehicle.
