Removal Procedure

  1. Raise the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the stabilizer shaft insulator bracket bolts.
  3. Remove the stabilizer shaft insulator bracket.

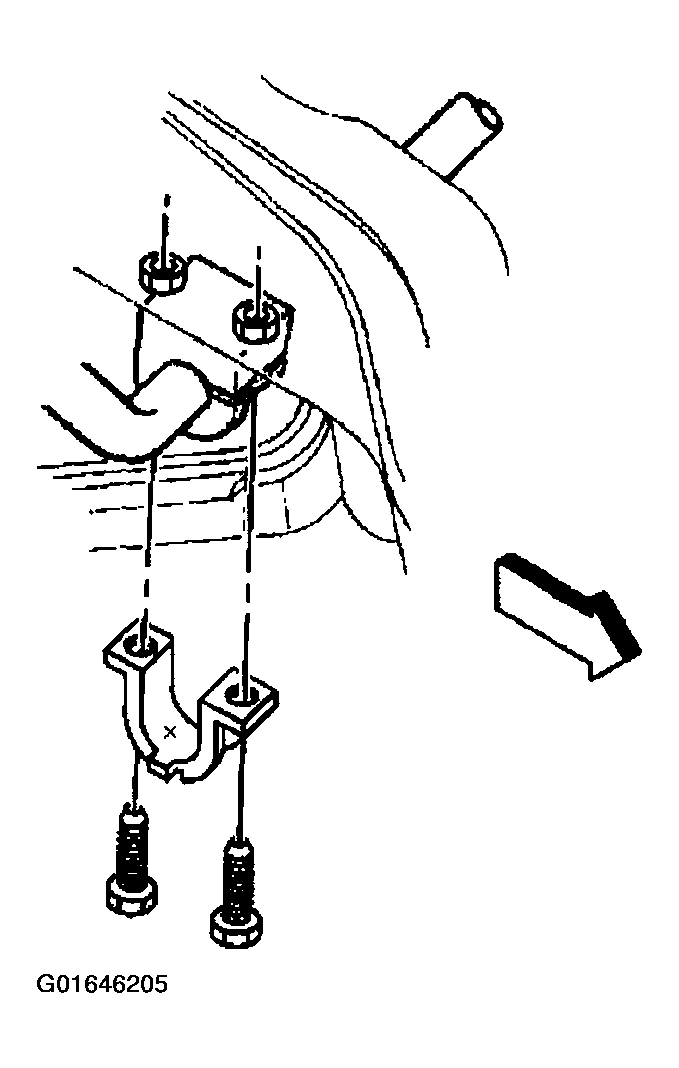

    Fig 1: Removing Stabilizer Shaft Insulator Bracket
    G01646205Courtesy of GENERAL MOTORS CORP.
  4. Using a pry bar, lower the stabilizer shaft.
  5. Remove the stabilizer shaft insulator.
