Installation Procedure

  1. Using a pry bar, lower the stabilizer shaft.
  2. Install the stabilizer shaft insulator to the stabilizer shaft. Position the slit on the stabilizer shaft insulator toward the front of the vehicle.
  3. Install the stabilizer shaft bracket over the stabilizer shaft insulator.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the stabilizer shaft bracket retaining bolts.

    Tighten

    Tighten the stabilizer shaft bracket retaining bolts to 36 N.m (27 lb ft).

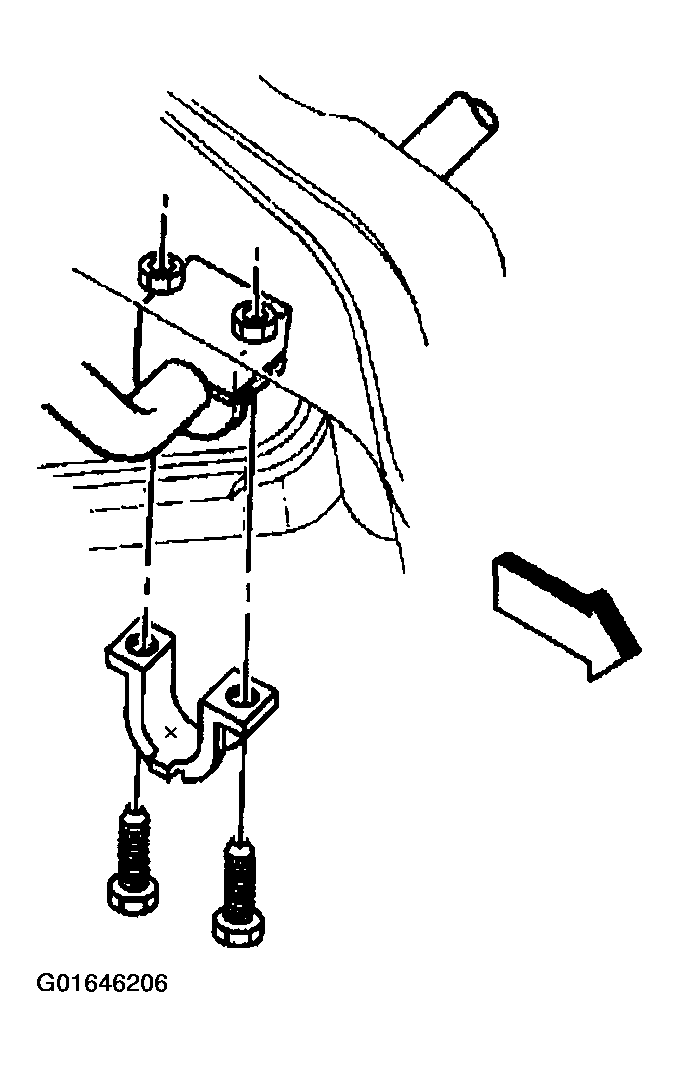

    Fig 1: Installing Stabilizer Shaft Bracket
    G01646206Courtesy of GENERAL MOTORS CORP.
  5. Lower the vehicle.
