Installation Procedure

  1. Install the intermediate shaft to the steering gear shaft.
    NOTE:
  2. Install the intermediate shaft to steering gear pinch bolt.

    Tighten

    Tighten the intermediate shaft to steering gear pinch bolt to 41 N.m (30 lb ft).

  3. Install the intermediate shaft boot over the intermediate shaft.

    Do not secure the boot to the steering gear.

    Fig 1: Installing Intermediate Shaft To Steering Gear Pinch Bolt
    G01646040Courtesy of GENERAL MOTORS CORP.
  4. Install the intermediate shaft (2) to the steering column shaft (1).
  5. Install the intermediate shaft to steering column pinch bolt (3).

    Tighten

    Tighten the intermediate shaft to steering column pinch bolt to 41 N.m (30 lb ft).

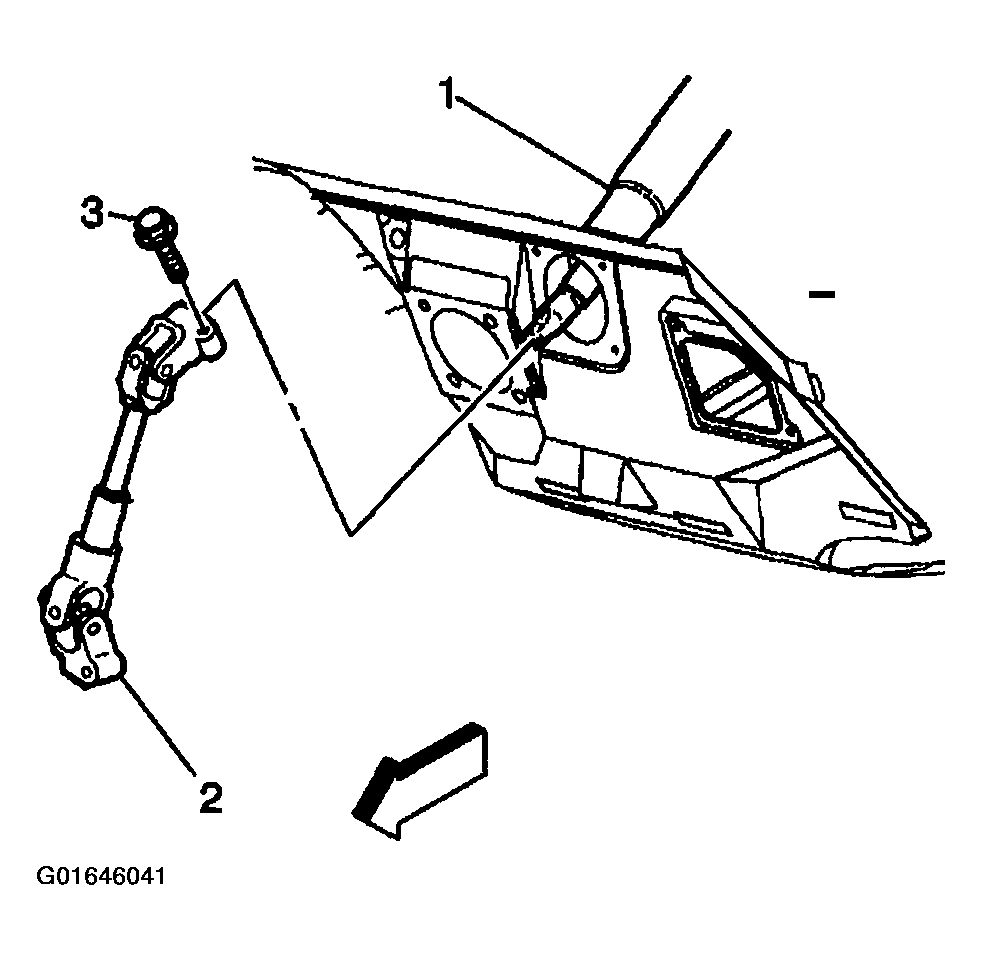

    Fig 2: Installing Intermediate Shaft To Steering Column Shaft
    G01646041Courtesy of GENERAL MOTORS CORP.
  6. Measure the intermediate shaft angle. The angle must be 38-40 degrees.
  7. Install the intermediate shaft boot to the steering gear.
    Fig 3: Identifying Intermediate Shaft Angle
    G01646042Courtesy of GENERAL MOTORS CORP.
  8. Install the intermediate shaft boot to cowl mounting bolts.

    Tighten

    Tighten the intermediate shaft boot to cowl mounting bolts to 2.8 N.m (25 lb ft).

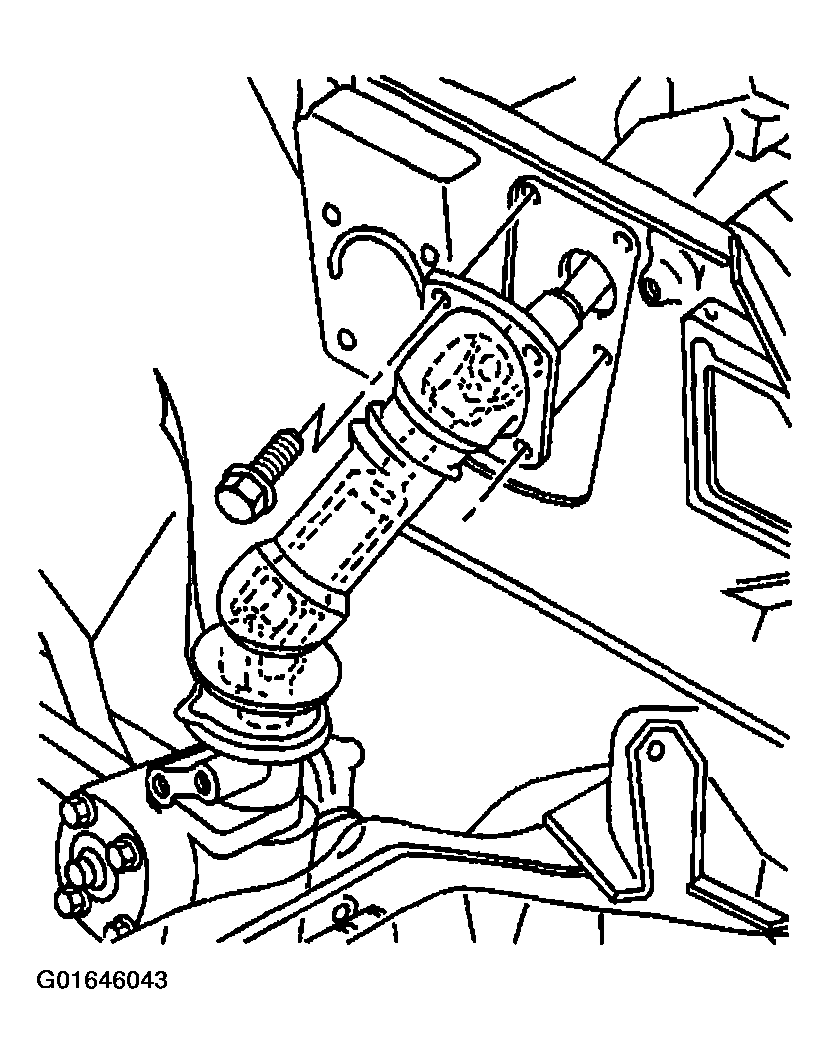

    Fig 4: Installing Intermediate Shaft Boot To Cowl Mounting Bolts
    G01646043Courtesy of GENERAL MOTORS CORP.
  9. Install the underhood electrical center to cowl.
  10. Install the underhood electrical center mounting bolts.

    Tighten

    Tighten the underhood electrical center mounting bolts to 5.5 N.m (49 lb in).

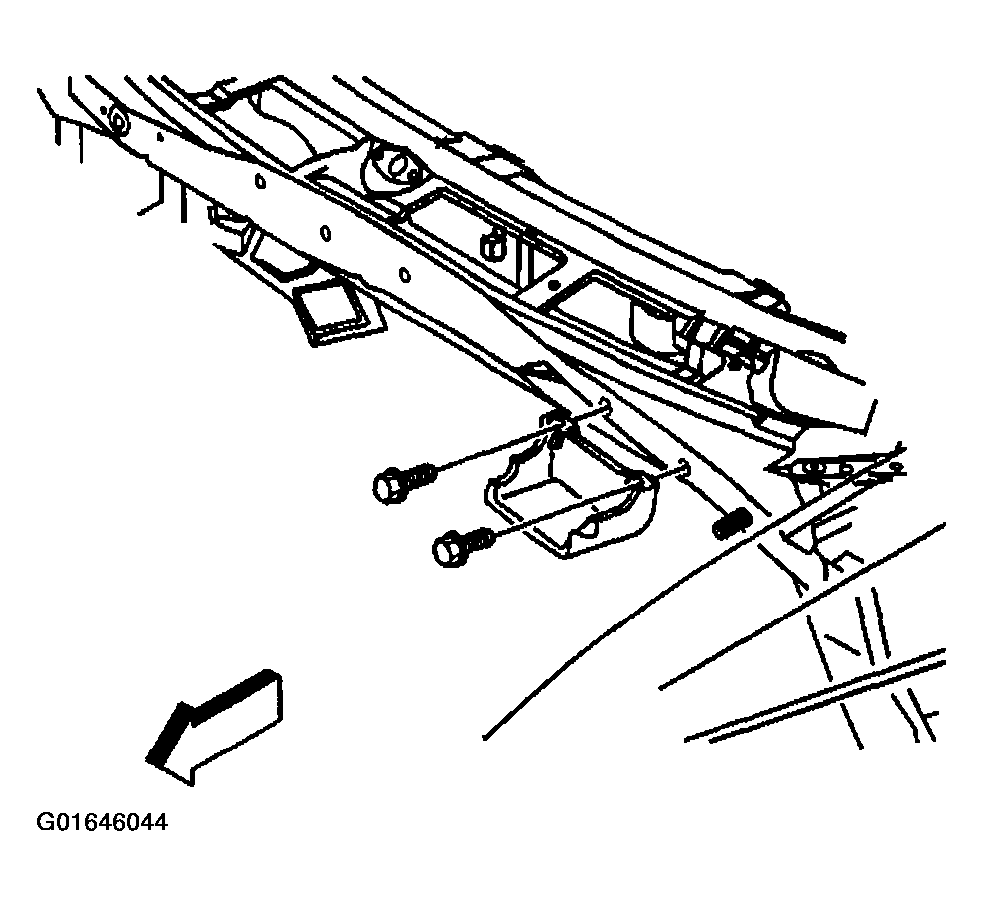

    Fig 5: Installing Underhood Electrical Center Mounting Bolts
    G01646044Courtesy of GENERAL MOTORS CORP.
  11. Unlock the steering column by removing the J 42640  from the steering column trim cover.
    Fig 6: Removing J 4260 From Steering Column Trim Cover
    G01646045Courtesy of GENERAL MOTORS CORP.
