Home >> GMC >> 2003 >> Safari Van Cargo, AWD >> Repair and Diagnosis >> Steering >> Steering Wheel & Steering Column >> Diagnostic Information and Procedures >> Lock System Sticks In Start

Lock System Sticks In Start

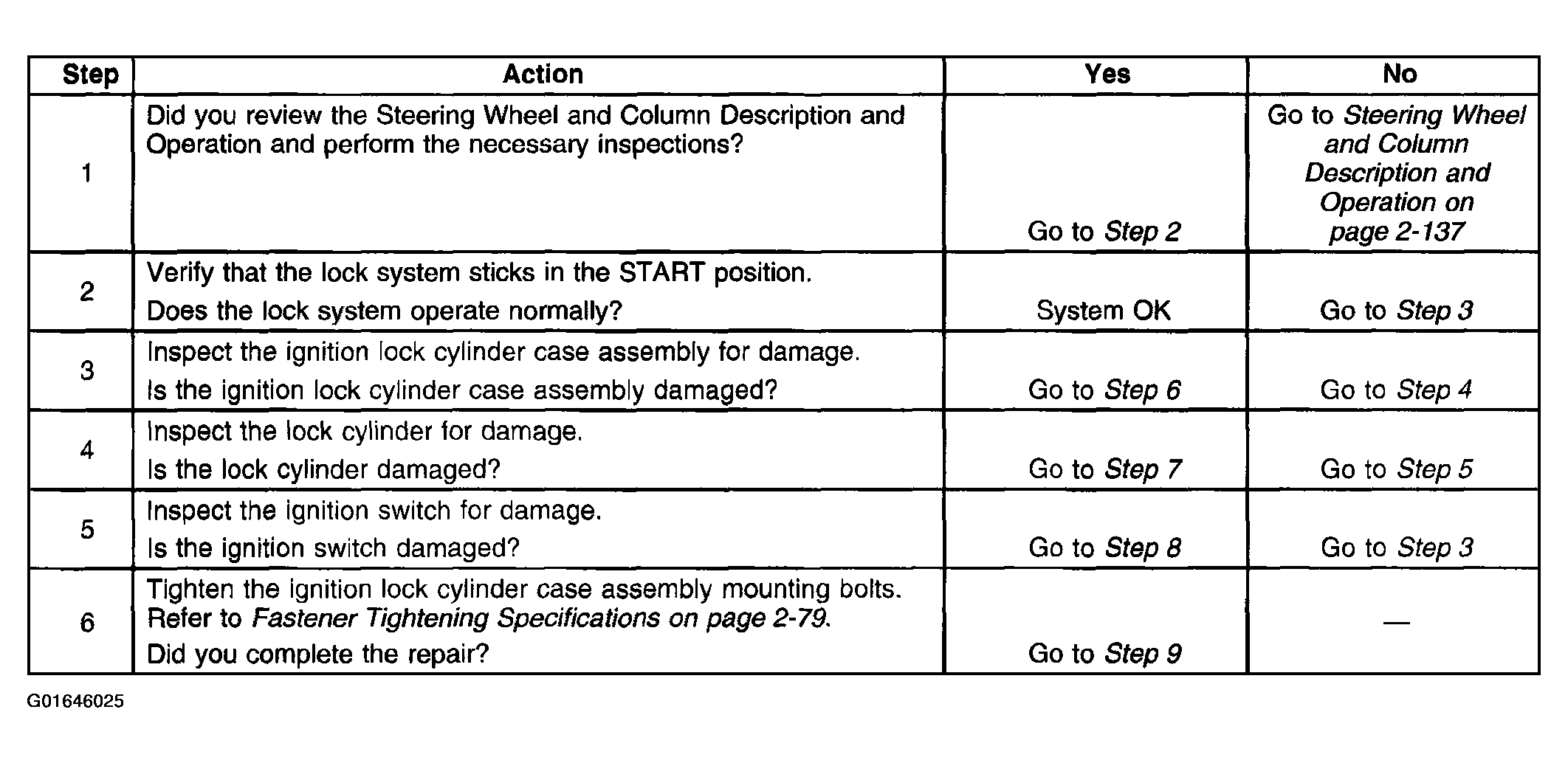

Fig 1: Lock System Sticks In Start - Diagnostic Procedure (1 Of 2)
G01646025Courtesy of GENERAL MOTORS CORP.

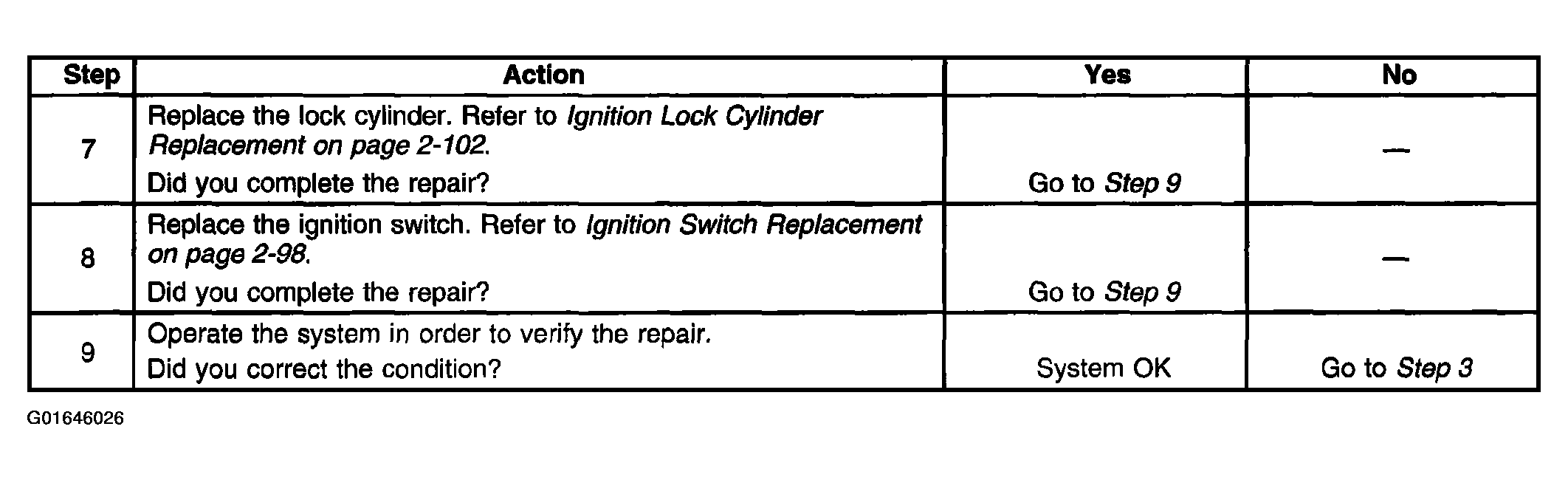

Fig 2: Lock System Sticks In Start - Diagnostic Procedure (2 Of 2)
G01646026Courtesy of GENERAL MOTORS CORP.
