LEMON Manuals
: Even more car manuals for everyone
Home
>>
GMC
>>
2003
>>
Safari Van Cargo, AWD
>>
Repair and Diagnosis
>>
Steering
>>
Steering Wheel & Steering Column
>>
Diagnostic Information and Procedures
>>
High Lock Effort
High Lock Effort

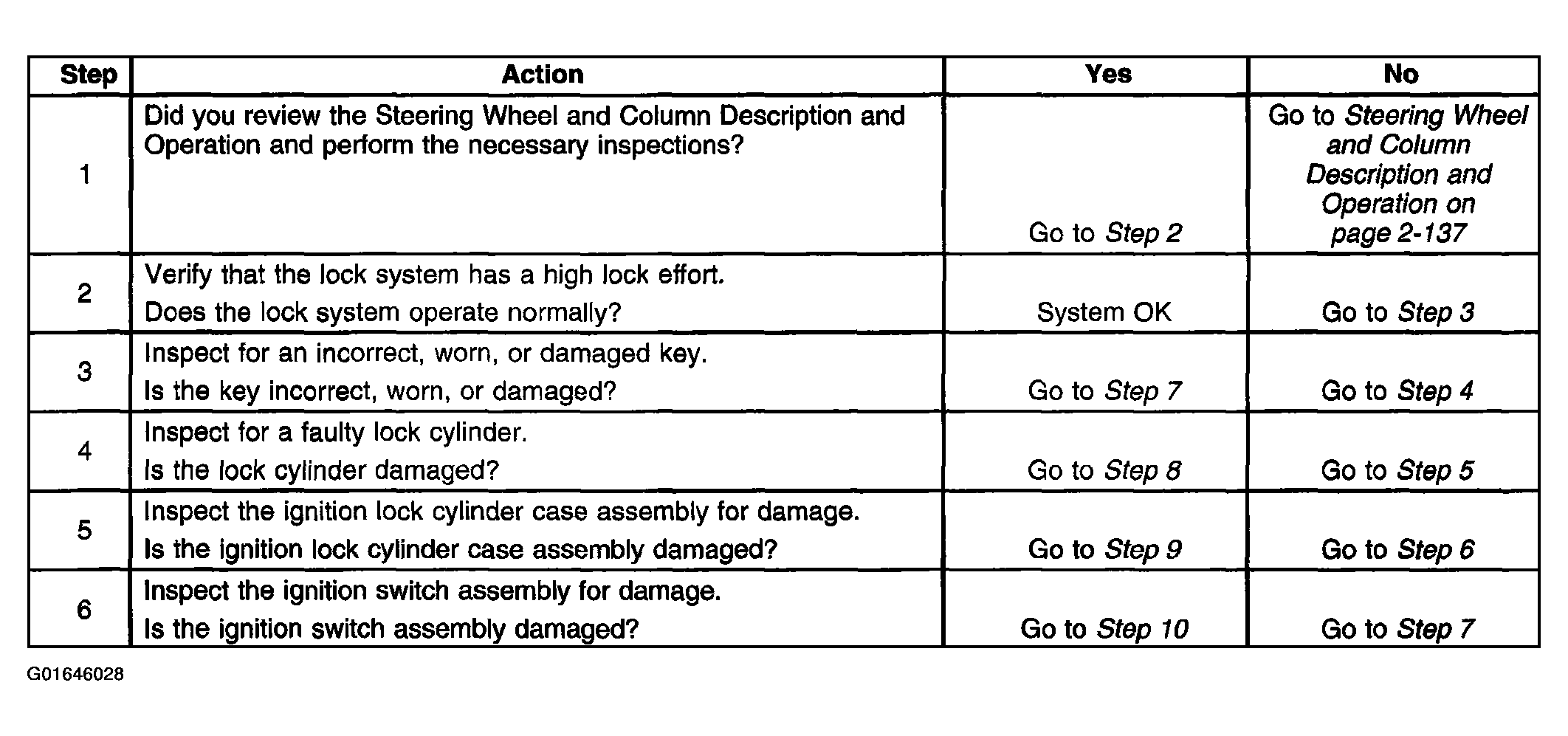

Fig 1: High Lock Effort - Diagnostic Procedure (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

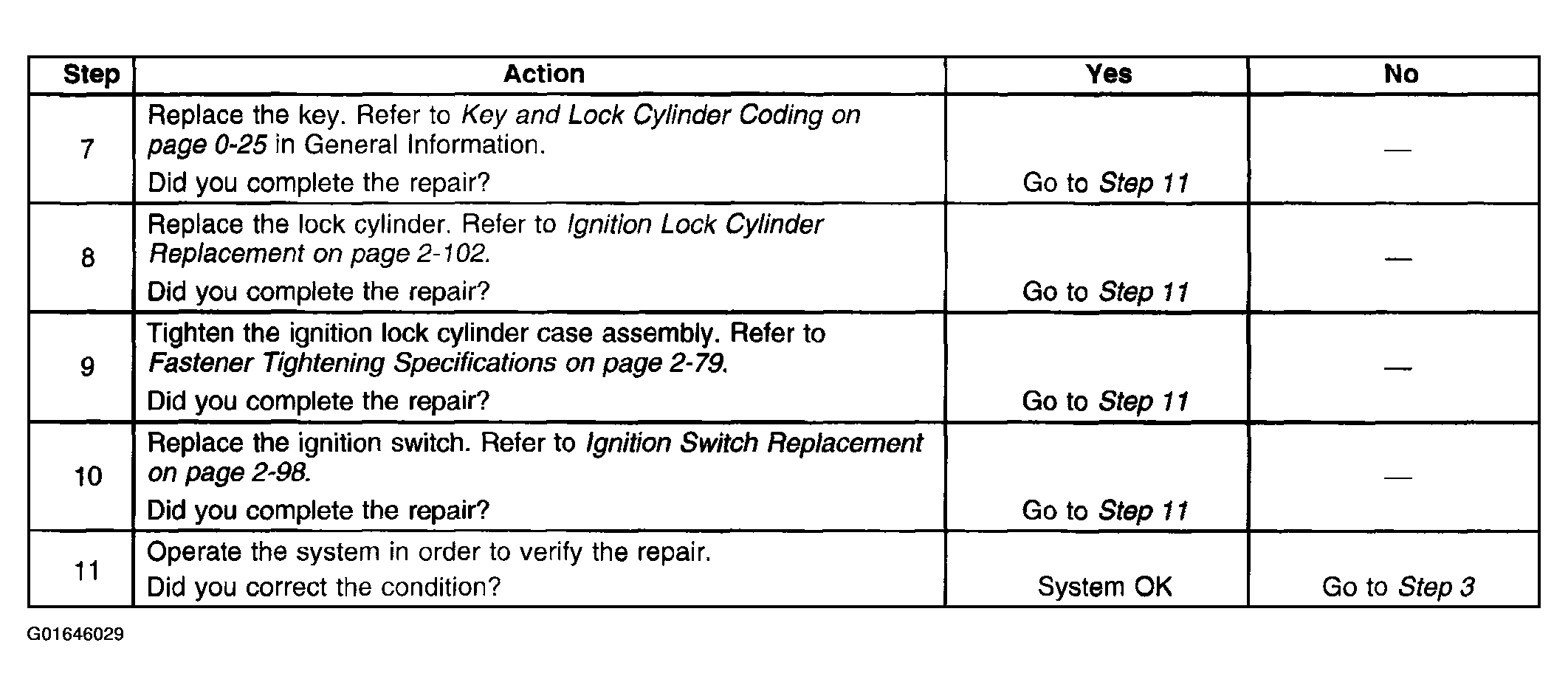

Fig 2: High Lock Effort - Diagnostic Procedure (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
