Steering Column Disassembled View (Tilt Column)

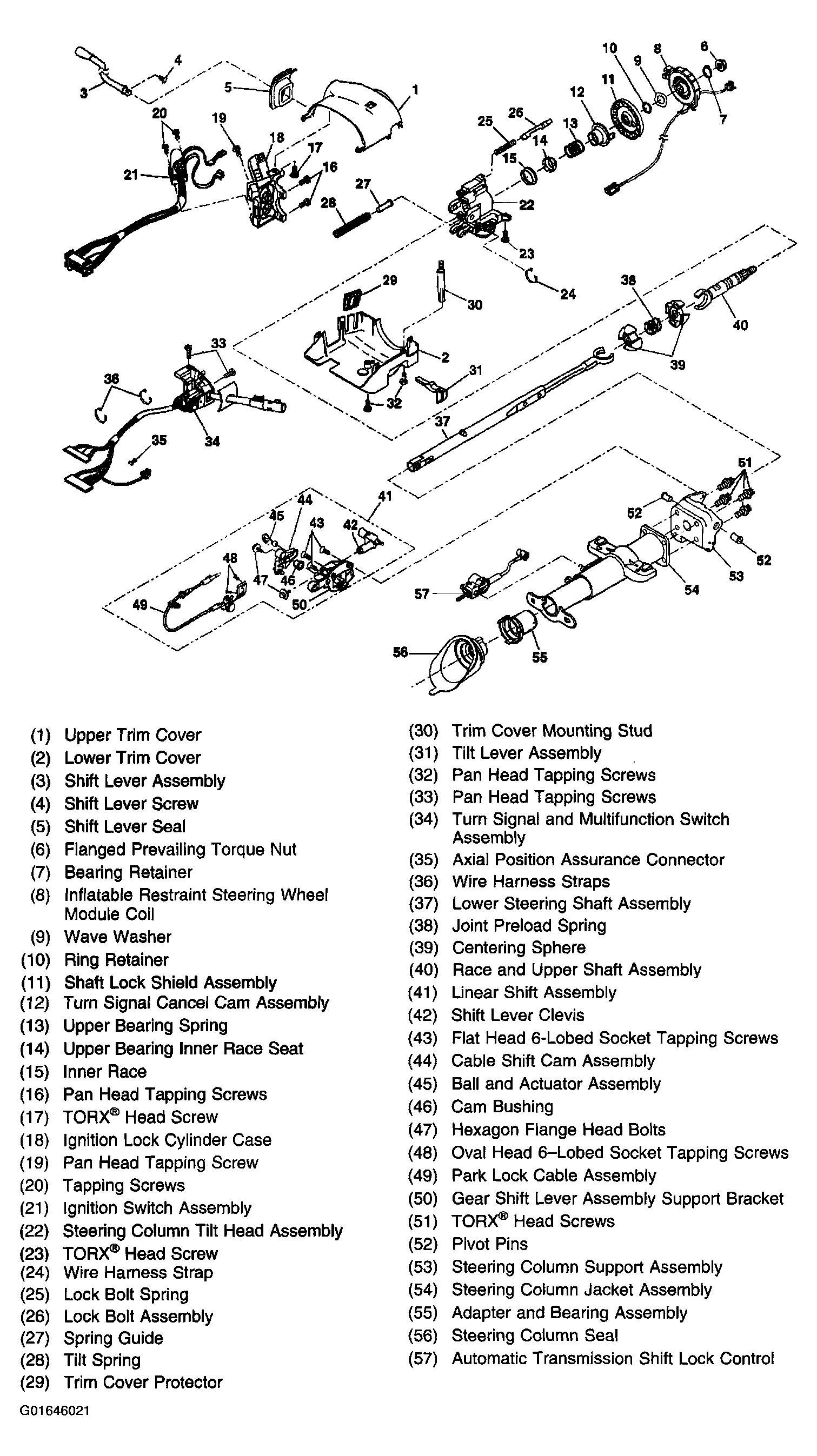

Fig 1: Steering Column Disassembled View (Tilt Column)

G01646021

Courtesy of GENERAL MOTORS CORP.
